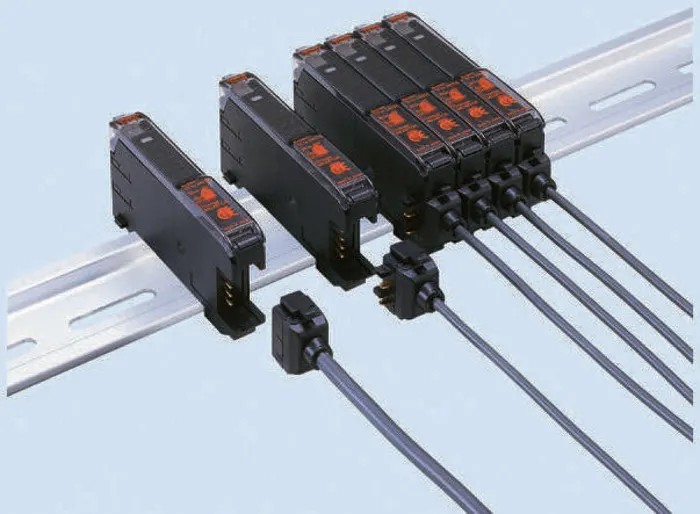

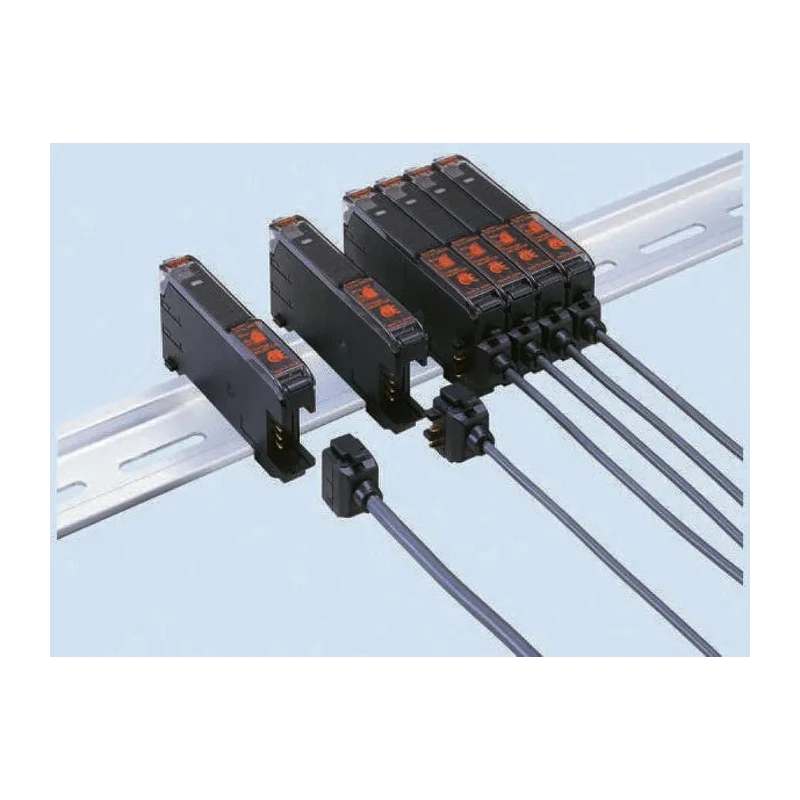

Omron E3X-DA-N Series High Performance Connector for Use with E3X-DA-S and MDA Series IEC 60529 IP66/IP50, 10-24 Vdc E3X-DA-N

Omron E3X-DA-N Series Connector, model E3X-DA-N, is a high performance accessory designed for seamless integration with E3X-DA-S Series and MDA Series fibre optic sensors. It features a durable PBT housing and PC cover compliant with IEC 60529 IP66 and IP50 ingress protection standards, making it suitable for use in industrial environments requiring robust sensor connections.

This connector supports a supply voltage range from 10 to 24 Vdc with a switching current rating of 50 mA. The sensor capabilities include a typical sensing distance of 150mm (DC200) and 400mm (TC200) variants, providing flexibility for various sensing applications such as labeling and production line automation.

Equipped with a simple potentiometer for sensitivity adjustment and options for Light On/Dark On operation, the E3X-DA-N connector ensures precise sensor setting and alignment. Its design includes short circuit and reverse polarity protections along with mutual interference protection to maintain system reliability.

The connector features an LED bar graph user interface that gives visible indication of optimum sensor setting and alignment, facilitating easy setup and maintenance. A fixed 40ms off delay timer and pulse stretching timer functions enhance integration compatibility with automation systems.

Operating under ambient temperatures ranging from -25°C to +55°C, reduced to +50°C when multiple units are banked, this connector accommodates demanding industrial environments. Its compact profile measures 10 mm width, 67.3 mm depth, and 31.6 mm height, ideal for installation in tight spaces.

Typical applications include industrial automation, manufacturing, laboratory equipment, and production line monitoring where reliable fibre optic sensor connections are essential. Set contains the Omron E3X-DA-N connector for efficient sensor interfacing.

Explore the Electronics & Electricals category for additional Omron sensor accessories and automation control gear at EnvMart. The Connector features a PBT housing with a PC cover ensuring durability. Designed for use with Omron E32 Fibre Optic Cable for precise sensing.

Supply voltage range of 10 to 24 Vdc with ±10% tolerance. Switching current rated at 50 mA for reliable operation. Sensing distance typically 150mm (DC200) and 400mm (TC200) versions available. Offers simple potentiometer sensitivity adjustment and selectable Light On/Dark On functions.

Equipped with short circuit and reverse polarity protection for safety. Operates reliably in temperatures from -25°C to +55°C, reduced to +50°C when banked together. Compact dimensions measuring 10 x 67.3 x 31.6 mm (WDH).
