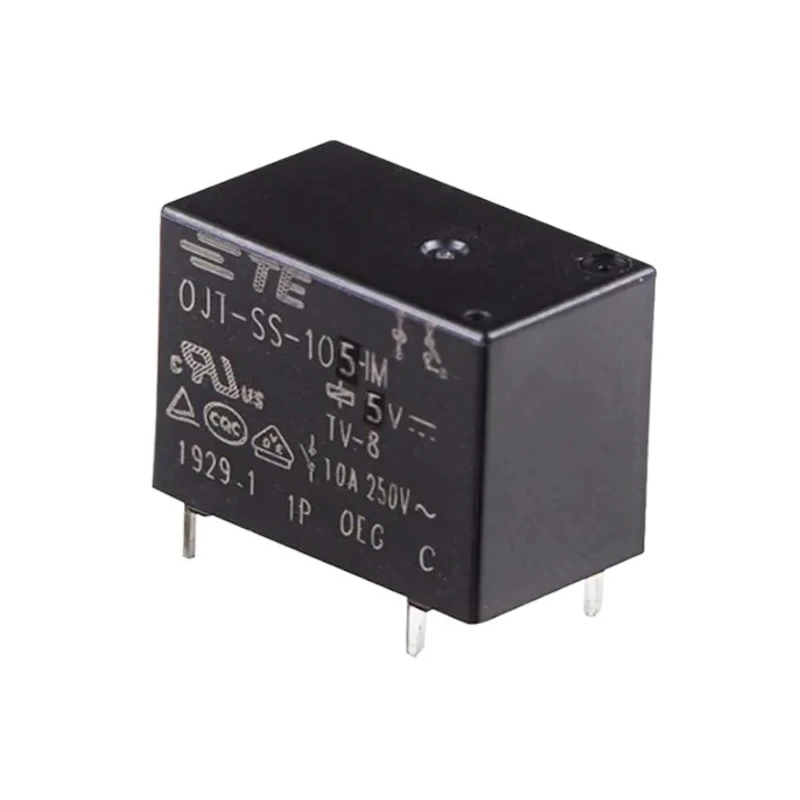

TE Connectivity PCB Non-Latching Relay 5V dc Coil, 10A Switching Current, SPST, Series OJT 2071508-1

TE Connectivity 2071508-1 PCB Non-Latching Relay is a power relay unit featuring a 5V dc coil voltage and 10A maximum switching current, under the OJT series. Designed specifically for PCB mounting with solder terminals, this SPST relay combines compact size and robust performance suitable for industrial and commercial applications.

This relay offers a maximum switching AC voltage of 250V and supports switching power of 450mW, ensuring stable electrical switching capacity. Engineered for wide-range operation, it can function within temperatures from -30°C to 85°C, making it versatile for various environmental conditions.

The contact system uses high-quality silver tin oxide material, enhancing electrical conductivity and longevity. The coil resistance is rated at 55.6Ω, with coil power at 450mW, enabling efficient operation with minimal power loss. The relay offers a compact form factor with dimensions of 18.2mm length, 10.2mm width, and 14.8mm height, optimizing PCB space usage.

Certified to meet IEC 62368-1, REACH, and RoHS standards, this relay is a reliable component for applications like washing machines, refrigeration units, cooking devices, industrial control systems, and power supply control circuits. Its non-latching design provides consistent performance where momentary switching is required.

This relay operates with a coil voltage of 5V dc providing efficient power control. It features a single-pole single-throw (SPST) contact configuration suitable for various switching applications. Compact dimensions of 18.2mm length, 10.2mm width, and 14.8mm height enhance PCB integration.

It supports a switching AC voltage up to 250V and switching power of 450mW, ensuring reliable operation. Operating temperature range is from -30°C to 85°C, suitable for diverse industrial environments. The relay uses silver tin oxide contact material for superior conductivity and durability.

Coil resistance is 55.6Ω, with coil power consumption rated at 450mW. It complies with IEC 62368-1, REACH, and RoHS standards, ensuring quality and safety. Ideal for use in industrial control, refrigeration, washing machines, cooking appliances, and power supply control.
