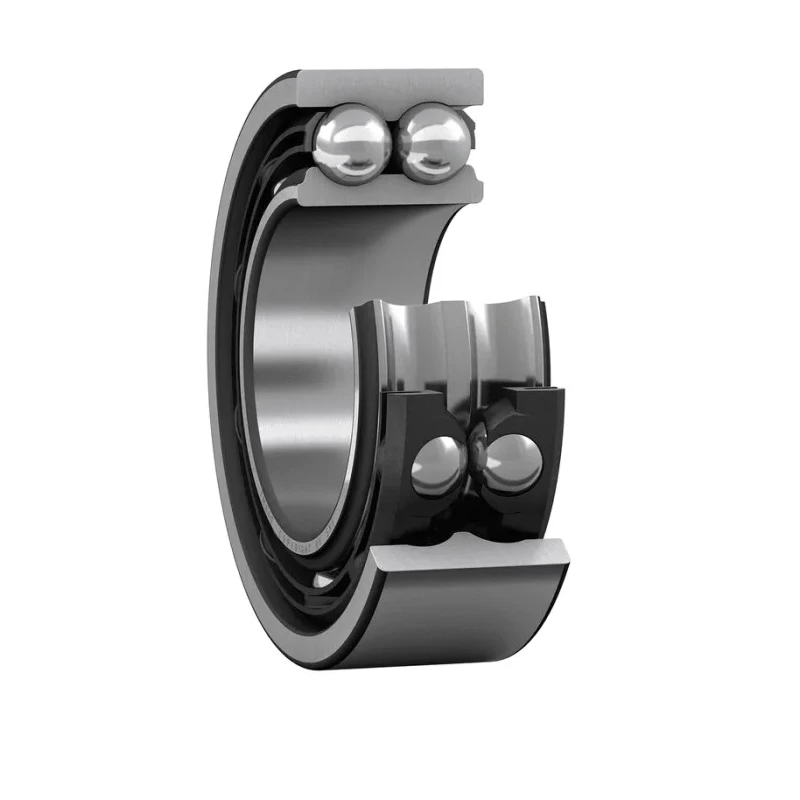

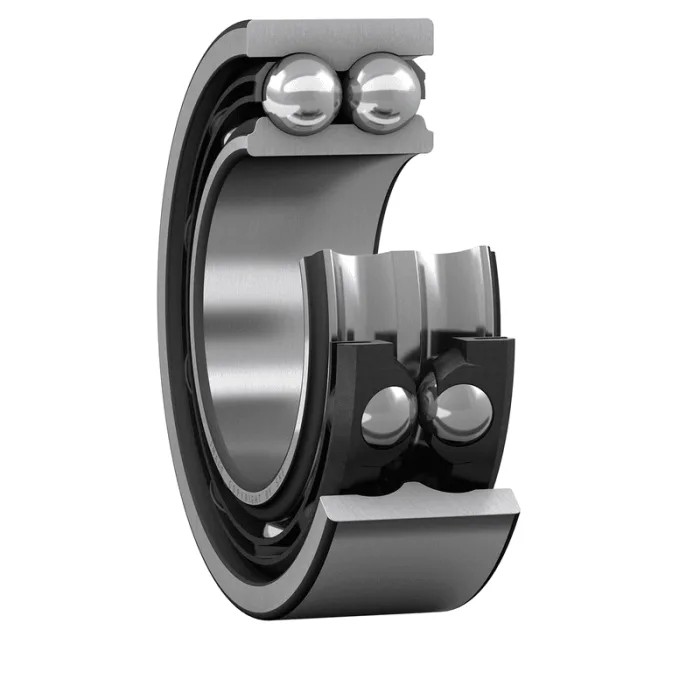

SKF Double Row Angular Contact Ball Bearing Sheet Metal Cage Steel Balls 70 mm ID 125 mm OD 39.7 mm Width 3214 A/C3

SKF 3214 A/C3 is a double row angular contact ball bearing with a 70 mm inside diameter, 125 mm outside diameter, and 39.7 mm race width. Featuring a sheet metal cage and steel ball construction, this bearing is engineered for combined radial and axial load handling, making it highly reliable in high-precision industrial applications.

The bearing design includes inner and outer ring raceways that are displaced relative to each other along the bearing axis. This displacement allows the bearing to accommodate combined loads while simultaneously acting under radial and axial forces. The axial load carrying capacity increases as the contact angle widens; this model uses a 30° contact angle for optimal balance.

With an internal clearance classified as C3, the bearing allows for slight axial expansion, improving its suitability for various operating temperatures and speeds. The static load rating is rated at 80 kN with a dynamic load rating of 88.4 kN, supporting demanding industrial processes. The limiting speed is 4500 rpm, enabling it to operate efficiently in high-speed machinery.

This bearing has an open end type and a parallel bore, making it adaptable for many equipment setups. SKF’s 2 Light series designation highlights its lightweight yet robust design, aimed at reducing inertia while maintaining performance.

The SKF 3214 A/C3 bearing is ideal for use in mechanical systems, fluid power machinery, power tools, and other industrial equipment requiring durable and precise rotary motion components.

Features a sheet metal cage for enhanced bearing structural integrity. Steel ball construction offers wear resistance and longevity. Opens end design facilitates easy installation and maintenance. Double row configuration increases load capacity.

Contact angle of 30° provides combined load handling. C3 internal clearance allows thermal expansion and reduced friction. Rated for high-speed operation up to 4500 rpm. Parallel bore for consistent stability during operation.

Complies with SKF quality standards for mechanical applications. Suitable for use in industrial, manufacturing, and fluid power sectors. Explore our full range of SKF Ball Bearings and related rotary bearing units on EnvMart for reliable mechanical component solutions.
