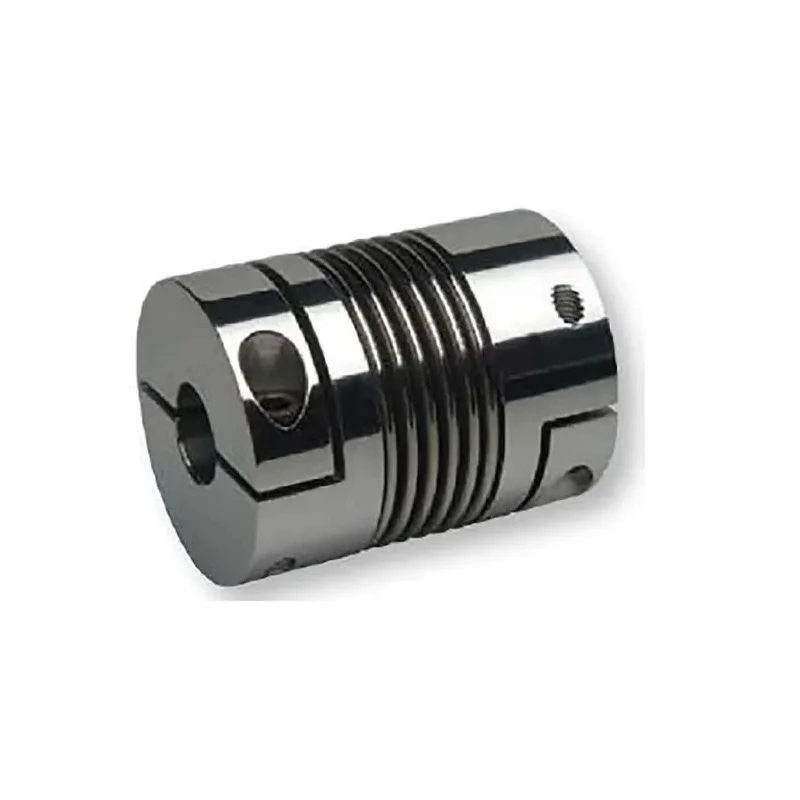

Huco Flexible Coupler 82 mm OD 25 mm Bore, 91 mm Length, Aluminium Hub, Stainless Steel Bellows, Clamp Style 554.82.5252

Huco 554.82.5252 Flexible Coupler featuring clamp style connection provides excellent precision and kinematic properties for mechanical power transmission. This coupling is ideal for applications requiring compensation for misalignment and axial motion within mechanical, fluid power, and industrial machinery equipment.

Constructed with high-quality aluminium alloy hubs and stainless steel bellows, it ensures durability and flexibility in demanding industrial environments. Its 82 mm outer diameter and 25 mm bore size on both ends fit standard mechanical shafts. The compact 91 mm length enables integration into constrained setups.

The coupler supports a maximum rotational speed of 6900 rpm and a torque rating of 150 Nm, delivering reliable power transmission. The torsional stiffness of 128000 Nm per radian enhances dynamic performance and vibration dampening. It allows angular, parallel, and axial misalignments to accommodate shaft misalignments and thermal expansion effects.

Operating safely over temperatures from -30°C to +120°C, this coupling adapts to varying industrial conditions. The M10 screw size clamp style ensures secure assembly and ease of maintenance. It is part of Huco's Flex K series, known for combining stiffness with radial compensation and axial motion capabilities.

The coupler has an 82 mm outer diameter with 25 mm bore sizes for both shafts. It features stainless steel bellows for flexible shaft connection and aluminium hubs for lightweight strength. Supports maximum speed up to 6900 rpm and torque of 150 Nm for medium-duty power transmission.

Operates efficiently in temperatures ranging from -30°C to 120°C to withstand harsh industrial environments. Permits angular misalignment of 1.5°, parallel misalignment of 0.2 mm, and axial misalignment of 0.5 mm to accommodate shaft deflection.

The clamp style with M10 screw size offers secure and adjustable mounting. Compact 91 mm length enables installation in tight mechanical assemblies. Exceptional torsional stiffness of 128000 Nm/rad enhances coupling performance under dynamic loads.

This Flexible Coupler is suited for industrial machinery, mechanical power transmission, fluid power tools, and applications requiring precise alignment compensation in HVAC, manufacturing, and processing plants. Its durable materials and robust design ensure long-term reliable operation with minimal maintenance.
