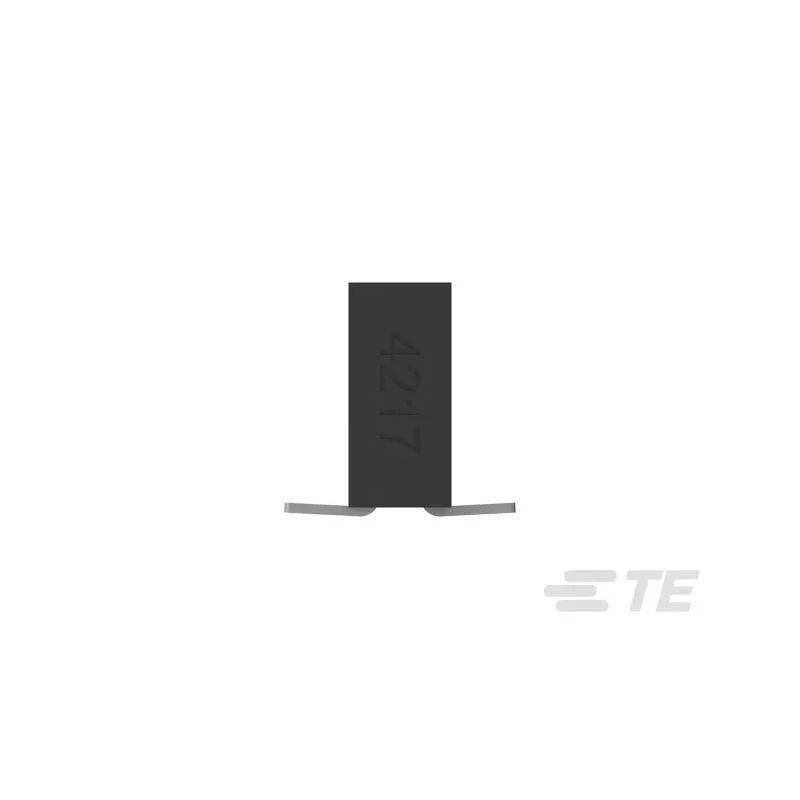

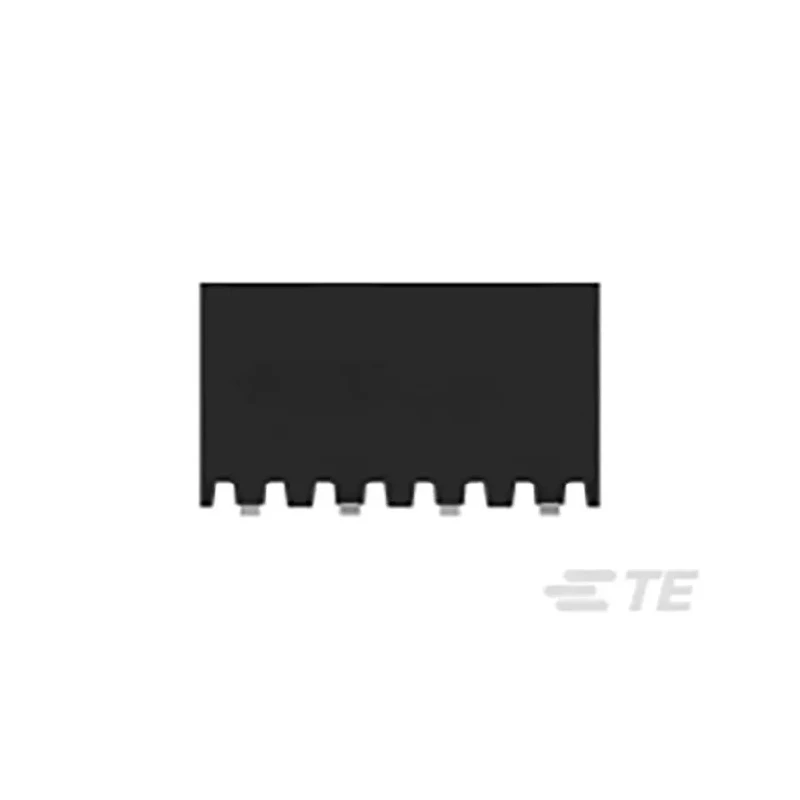

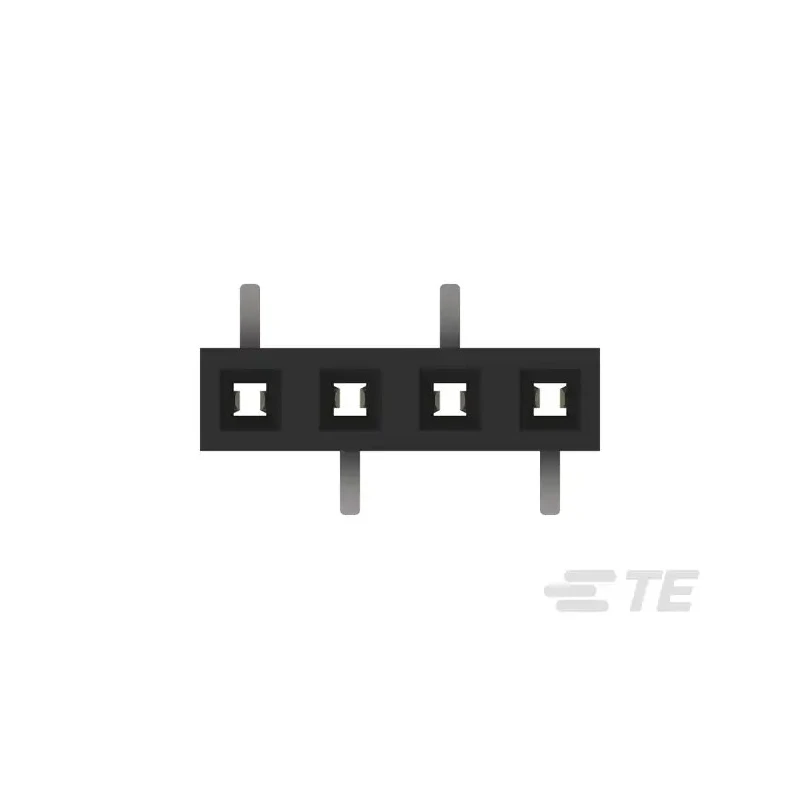

TE Connectivity AMPMODU Series Straight Surface PCB Socket, 4-Contact, 1 Row, 2 mm Pitch, 12A, 650V, Liquid 2307813-4

TE Connectivity 2307813-4 AMPMODU Series Straight Surface PCB Socket is a high-quality receptacle designed for precise and reliable board-to-board connections in industrial and commercial electronic applications. This model features 4 contacts arranged in a single row with a compact 2 mm pitch, facilitating denser PCB designs and enhanced functionality.

Constructed using durable liquid crystal polymer housing, the socket maintains mechanical integrity under various environmental conditions. The bronze contacts with tin and nickel plating provide excellent electrical conductivity and corrosion resistance, ensuring long service life.

Engineered for surface mounting with straight orientation, it supports solder termination methods compatible with automated manufacturing, enhancing assembly efficiency. Its operating temperature range from -65°C to 125°C makes it versatile for diverse industrial settings, including harsh environments.

The AMPMODU series reduces PCB real estate usage by 38% compared to conventional 2.54 mm pitch sockets, enabling compact device designs without sacrificing performance. The dual beam receptacle contact offers two-point electrical stability, ensuring secure interconnection of headers and receptacles, essential for reliable operation in servo drives, programmable logic controllers, building automation, instrumentation, and material handling systems.

This product is environmentally compliant with halogen free and low halogen materials, supporting safer manufacturing and disposal practices. It is supplied in packaging formats suitable for mass production, such as tubes, tapes, and reels, and accommodates PCB thicknesses from 1.6 mm to 2.4 mm.

Supports current up to 12A and voltage rating of 650V. Constructed with liquid crystal polymer housing for durability. Features a straight orientation surface mount suitable for solder termination. Operates reliably between -65°C and 125°C temperature range.

Employs bronze contacts with tin and nickel plating to enhance conductivity and corrosion resistance. AMPMODU series design conserves PCB space compared to standard 2.54 mm pitch connectors. Dual beam receptacle contact ensures strong and stable electrical connection.

Suitable for automated surface-mount and through-hole reflow manufacturing processes. Environmentally friendly with halogen free and low halogen materials. Ideal for industrial controls, servo drives, PLCs, instrumentation, building automation, and material handling applications.
