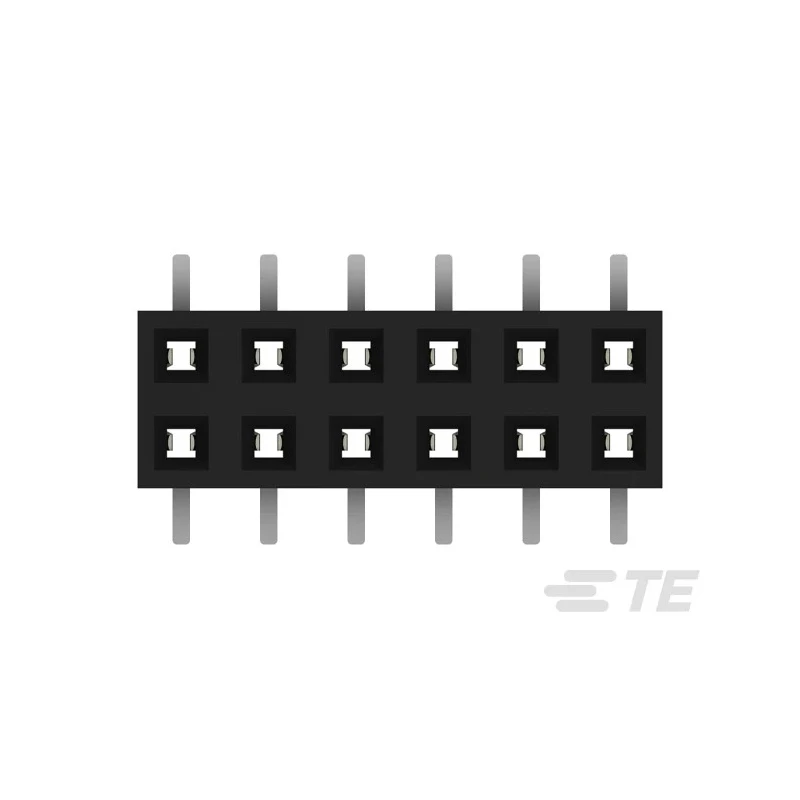

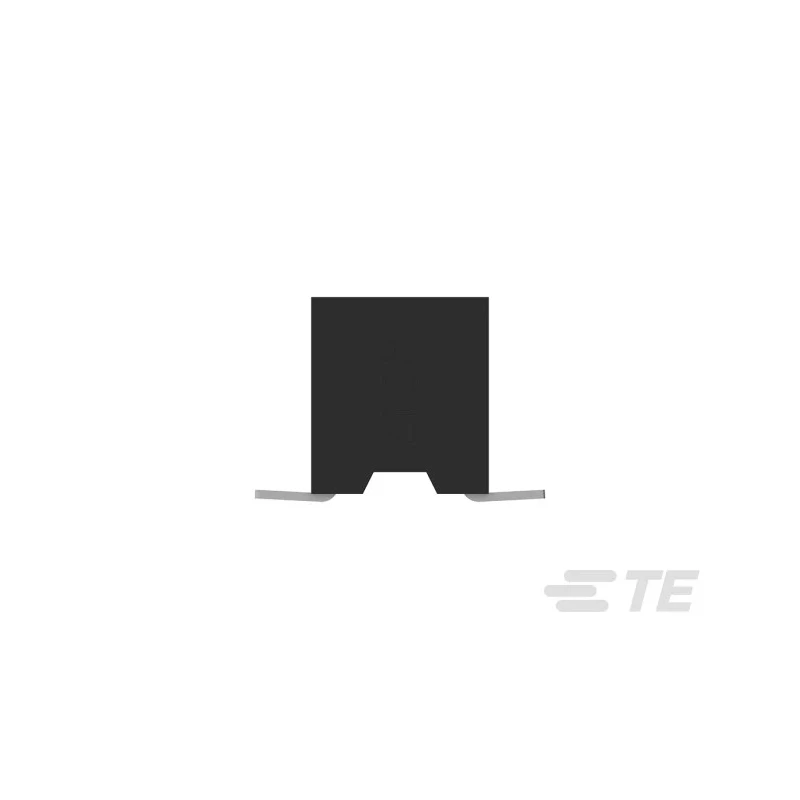

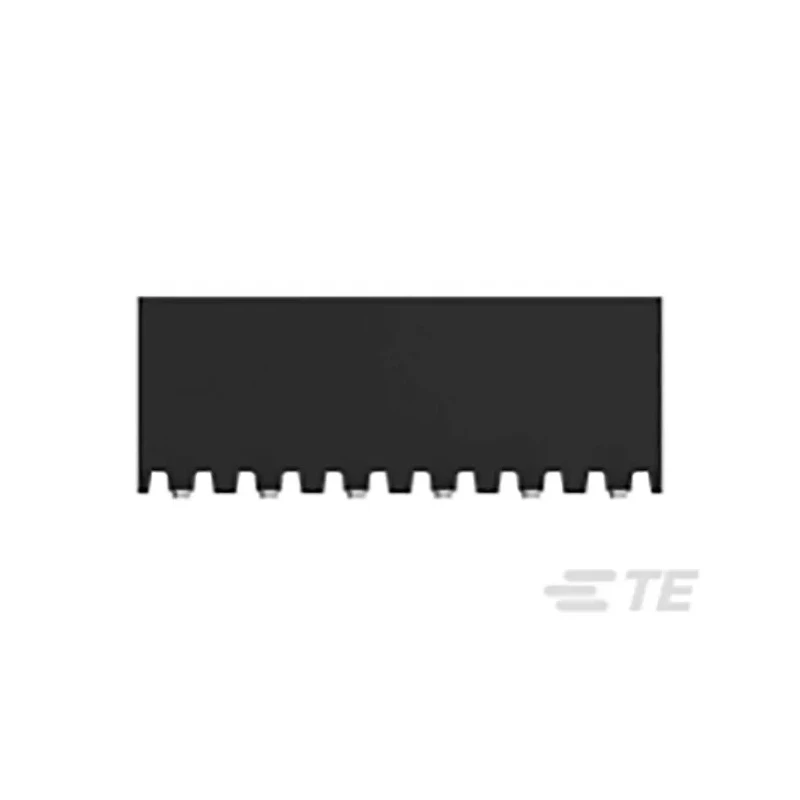

TE Connectivity AMPMODU Series Straight Surface PCB Socket, 12-Contact, 2 Row, 2 mm Pitch Solder 1-2314844-2

TE Connectivity 1-2314844-2 AMPMODU Series Straight Surface PCB Socket is a high-quality 12-contact, dual-row receptacle designed for secure board-to-board connections in industrial and electronic applications. It utilizes a 2 mm pitch surface mount configuration, making it ideal for compact PCB layouts where space optimization is critical.

This socket features a robust liquid crystal polymer housing that offers excellent mechanical and thermal stability. The bronze contacts are nickel plated with tin, enhancing durability and corrosion resistance. Its dual beam design ensures dependable electrical performance with two-point electrical stability.

Rated for 650 volts and 12 amperes, this PCB socket operates reliably in temperature extremes ranging from -65°C to 105°C, supporting a wide array of industrial uses such as PLCs, servo drives, industrial controls, instrumentation, test equipment, and building automation systems.

The product is compatible with automated surface-mount and through-hole reflow manufacturing processes, available with multiple solder tail lengths for PCB thicknesses from 1.6 mm to 2.4 mm. It comes in various packaging options including tubes, tapes, and reels to support manufacturing efficiencies.

With a compact 2.00 mm centerline, this socket occupies 38% less PCB space than traditional 2.54 mm pitch connectors, enabling advanced designs with increased functionality within smaller areas.

The receptacle supports dual-entry vertical and horizontal assemblies for versatile board stacking. Its halogen free and low halogen materials offer environmentally conscious compliance. Ideal for industrial automation, manufacturing electronics, and precision control devices.

The socket's reliable construction supports long-term performance under rigorous operating conditions. Available as part of the AMPMODU connector series by TE Connectivity, a recognized leader in electronic components. Explore the TE Connectivity PCB socket range on EnvMart for robust, space-saving Connectors engineered for a diverse range of industrial applications.
