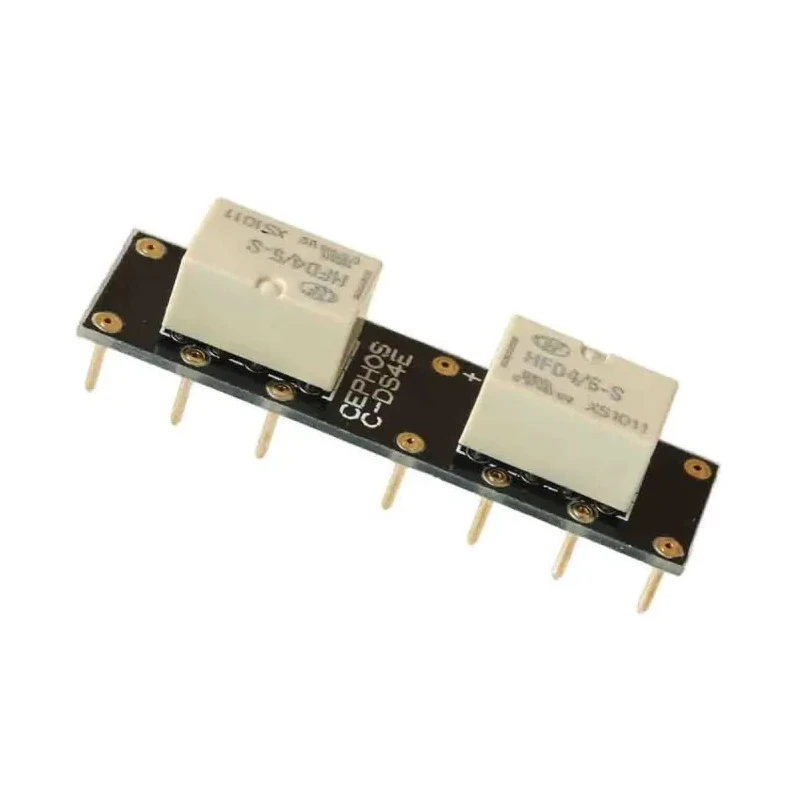

RS PRO PCB Signal Relay 24V dc Coil 2A 4PDT, Gold Plated Contacts, Solder Terminal 193-5865
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 8.2mm |
| Length | 15mm |
| Model | 193-5865 |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
Key Features
- The relay features a coil power consumption of 140 mW for efficient operation.
- It supports a maximum switching AC voltage of 250 V and DC voltage up to 220 V.
- Gold plated contacts provide enhanced conductivity and reliability.
- Compact PCB mount design measuring 15mm length, 8.2mm height, and 7.4mm width.
- Operates between -40°C to 85°C ensuring durability in various environments.
- Solder terminal type enables secure and reliable connectivity.
- Contact resistance is low at 100mΩ for minimal signal loss.
- This non-latching relay returns to normal position when unpowered, suitable for push-button applications.
Product Description
The RS PRO 193-5865 PCB Signal Relay is a precision non-latching relay equipped with a 24V dc coil and four pole double throw (4PDT) contact configuration, designed for reliable signal switching in compact PCB mount applications.
It supports a switching current of 2A, with maximum switching voltages of 250V AC and 220V DC, making it suitable for both AC and DC circuit control.
Gold plated contacts ensure superior electrical conductivity and long-lasting performance. The relay's compact size with dimensions of 15mm length, 8.2mm height, and 7.4mm width allows for dense PCB layouts and space-saving designs.
Operating over a wide temperature range from -40°C to 85°C, this relay is dependable in demanding industrial, automotive, household appliance, and manufacturing environments. The solder terminal design facilitates secure installation on printed circuit boards.
This relay is commonly used to switch electrical circuits in push button applications, automotive engine controls, household appliances, and industrial machinery. It is designed as a direct replacement for popular discontinued relay models such as the Panasonic DS4E, Omron G6A-434P, Fujitsu RA4, and IMO EN4-CW.
Coil voltage: 24V dc with coil power of 140 mW. 4PDT contact configuration with 2A switching current. Maximum switching power of 60 W and contact resistance of 100mΩ. Compact PCB mount format with solder terminals. Gold plated contact material for enhanced reliability.
Wide operating temperature range from -40°C to 85°C. Dimensions: 15 mm length × 7.4 mm width × 8.2 mm height. Manufactured in the United Kingdom adhering to RoHS standards.
Choose the RS PRO 193-5865 PCB Signal Relay for dependable signal conditioning in industrial, automotive, and manufacturing electronic applications. Explore more relay and signal conditioning products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V dc.
It supports a maximum switching AC voltage of 250V and a DC voltage of 220V.
The relay has a switching current capacity of 2A.
This model measures 15mm in length, 7.4mm in width, and 8.2mm in height.
It features solder terminals for secure connectivity.
The relay has a 4PDT (four pole double throw) contact configuration.
The contact resistance is low at 100mΩ, which minimizes signal loss.
It operates effectively within a temperature range of -40°C to 85°C.
The coil power consumption is 140 mW, allowing for efficient operation.
The maximum switching power is 60W.
This relay is manufactured in the United Kingdom and adheres to RoHS standards.
It is commonly used in applications such as push-button controls, automotive engine controls, and household appliances.
