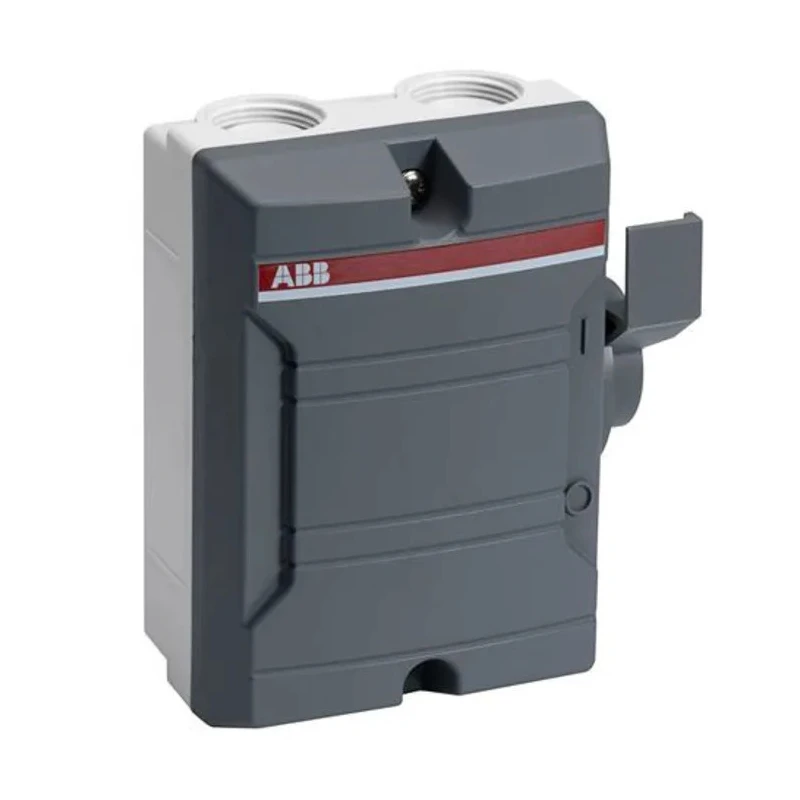

ABB 2-Pole DIN Rail Isolator Switch IP54 IP65 16A 7.5 kW 690V AC BW225DP 2CMA142400R1000

ABB 2CMA142400R1000 2-Pole DIN Rail Isolator Switch provides reliable disconnection and isolation in electrical circuits with a switching current of 16A and switching power up to 7.5 kW at 690V AC. It is designed for DIN rail mounting, making it suitable for use in industrial, commercial, and electrical distribution applications.

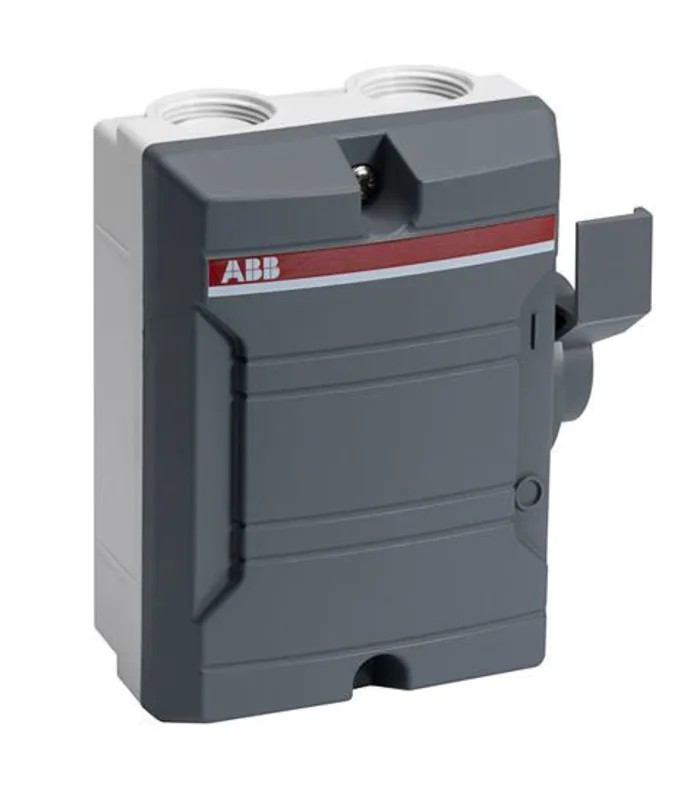

The enclosure is constructed from UV-protected rigid polycarbonate, offering robust protection against outdoor elements and low-pressure water jets, thereby delivering IP54 and IP65 ingress protection ratings. The grey handle is ergonomically designed and padlockable for enhanced safety and security during maintenance or troubleshooting operations.

This isolator switch is engineered for 2-pole electrical phases and supports a 5-wire system with a fixed neutral and PE terminal for secure grounding. Terminal connections use screw type terminals, simplifying installation and maintenance processes. The device operates reliably within temperature ranges from -25°C to 70°C, suitable for a wide range of climate conditions.

Standards compliance with CE and RoHS certifications ensures environmental safety and adherence to industry regulations. The compact dimensions (111mm length, 60mm width, 130mm depth) make it an excellent fit for control panels and electrical distribution cabinets.

The switch cover is interlocked to prevent accidental operation and includes knock-out holes and membrane grommets for cable entry from both top and bottom. Auxiliary contacts are available for expanded control and signaling functionality.

This switch's rugged construction, combined with its suitable IP ratings and comprehensive features, makes it ideal for industrial automation, electrical distribution, HVAC systems, and manufacturing environments requiring reliable power isolation.

The switch features a grey handle with padlock compatibility for secure operation. Designed for 2-pole electrical phase systems with screw terminal type for easy installation. Suitable for indoor and outdoor use with UV-protected, rigid polycarbonate enclosure.

Operating temperature ranges from -25°C to 70°C ensuring reliable performance in diverse environments. Complies with CE and RoHS standards for safety and environmental requirements. Dimensions are 111mm length, 60mm width, and 130mm depth for compact DIN rail mounting.

Includes auxiliary contacts for additional control functionality. Switch cover is interlocked and supports a fixed neutral and PE terminal for 5-wire systems. Explore more ABB Isolator Switches and components on EnvMart for reliable electrical safety solutions.
