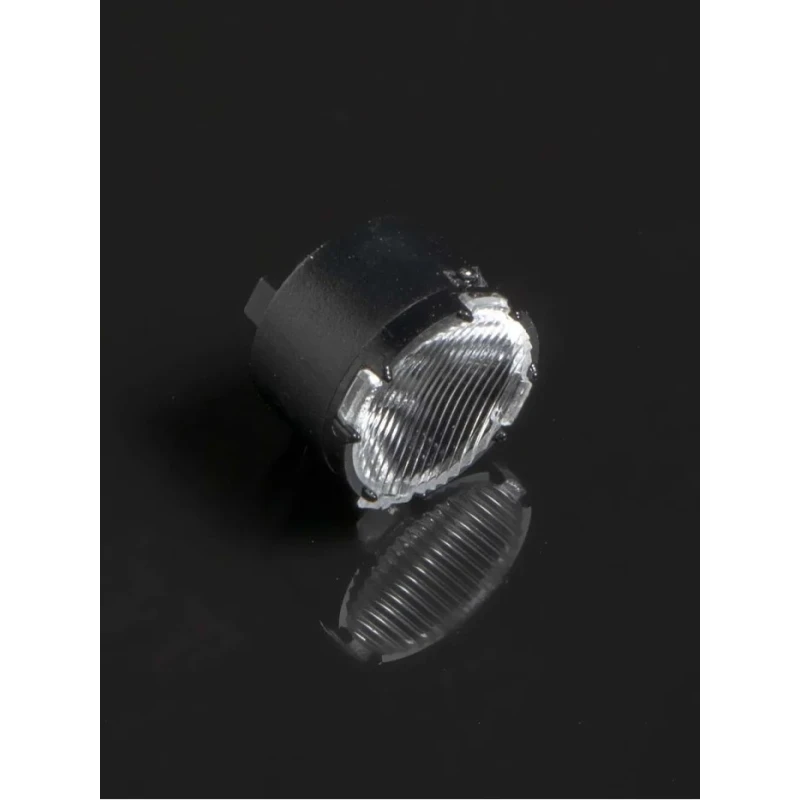

Ledil Lisa Series LED Optic & Holder Kit 20° + 50° Oval Beam FP16612_LISA3CSP-O-PIN
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10mm |
| Brand | Ledil |
| Height | 6.05mm |
| Length | 10mm |
| Model | FP16612_LISA3CSP-O-PIN |
| Series | Lisa |
| Viewing angle | 20° + 50° |
| Number of Legs | 2 |
| Kit Contents | Lens, Holder |
| Standards/Approvals | RoHS Compliant |
| Emission Pattern | Oval |
| Lens Structure | Round |
Key Features
- The optic kit features a 10mm diameter and a 6.05mm height.
- It includes a lens and holder assembled in a molded polycarbonate housing.
- The kit provides up to 90% light transmission efficiency through superior design and materials.
- The optic is suitable for jewellery shops, reading lights, torches, and head lamps.
- The lens structure is round with a viewing angle of 20° + 50°.
- The unit attaches securely to PCBs via locating pins or optional mounting clips.
- The product is RoHS compliant, ensuring hazardous substance regulation adherence.
- The compact size allows stable physical integrity over the luminaire's usable life.
Product Description
Ledil FP16612_LISA3CSP-O-PIN from the Lisa Series is an LED optic and holder kit designed for efficient light focusing with a combined 20° and 50° oval beam emission pattern. The optic unit features a miniature TIR lens measuring 10mm in diameter and 6.05mm in height, making it ideal for compact LED lighting applications such as jewellery displays, reading lamps, torches, and headlamp devices.
The lens is mounted in a molded polycarbonate (PC) housing and attaches to printed circuit boards using locating pins or optional mounting clips, ensuring robust mechanical stability over the product's lifespan. The kit achieves up to 90% light transmission efficiency due to its carefully engineered lens structure and high-quality materials.
Designed to meet RoHS compliance standards, this kit offers a reliable and environmentally friendly solution. The compact dimensions facilitate integration in tight spaces, preserving luminaire aesthetics and performance.
The package includes both the lens and holder components, enabling straightforward installation and assembly in diverse LED lighting systems. The optic kit provides a 20° + 50° oval beam suitable for precise lighting accents.
Its miniature size of 10mm diameter and 6.05mm height supports compact design requirements. The polycarbonate housing ensures durability and physical integrity. Mounting via locating pins or clips allows secure PCB attachment.
High light transmission efficiency enhances energy savings and brightness. Applicable in jewellery shops, torches, reading lights, and headlamps. RoHS compliance confirms environmental and safety standards. Kit contents include both lens and holder, simplifying procurement.
This optic and holder kit represents a high-performance lighting component suitable for industrial, commercial lighting, retail display, and portable illumination applications. Explore the Ledil Lisa Series range for a broad selection of TIR lenses and holders in compact formats.
Browse EnvMart’s extensive LED optics category for related lighting components and accessories.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of this optic kit is 20° + 50°, providing an oval beam emission pattern suitable for various lighting applications.
This model has a diameter of 10mm and a height of 6.05mm, making it compact for integration into tight spaces.
The kit includes both a lens and a holder, allowing for straightforward installation and assembly in LED lighting systems.
The lens is mounted in a molded polycarbonate housing, which ensures stability and durability.
It achieves up to 90% light transmission efficiency through its carefully engineered lens structure and high-quality materials.
The emission pattern of this optic kit is oval, designed for precise lighting accents in various applications.
Yes, this optic kit is RoHS compliant, ensuring adherence to hazardous substance regulations.
It is suitable for applications such as jewellery displays, reading lights, torches, and headlamps.
The unit attaches securely to PCBs via locating pins or optional mounting clips, ensuring robust mechanical stability.
The country of origin for this optic kit is India.
The model number of this optic kit is FP16612_LISA3CSP-O-PIN, part of the Lisa Series.
The height of the lens in this kit is 6.05mm, contributing to its compact design.
