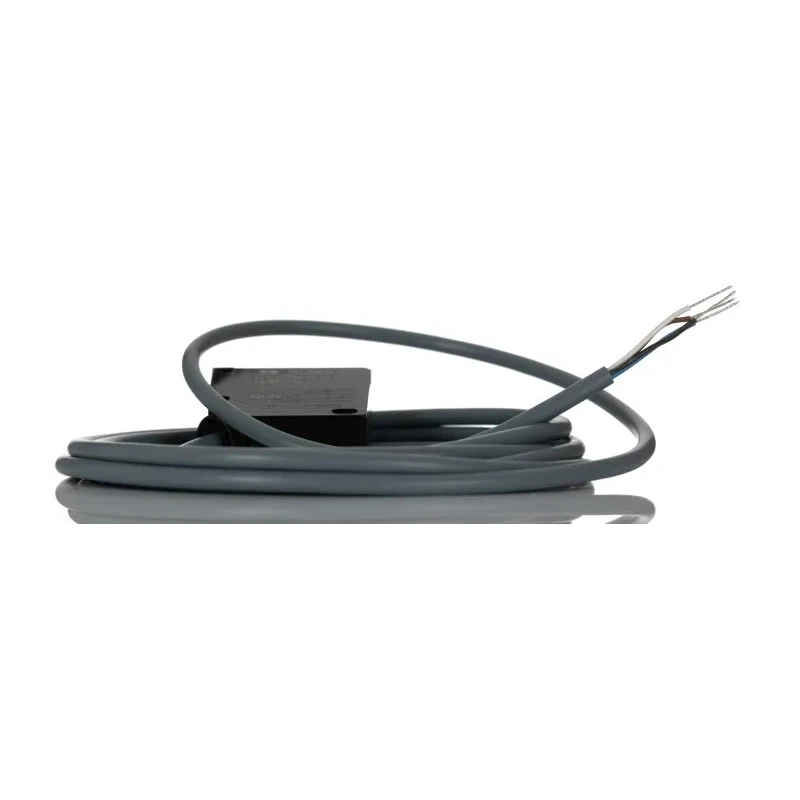

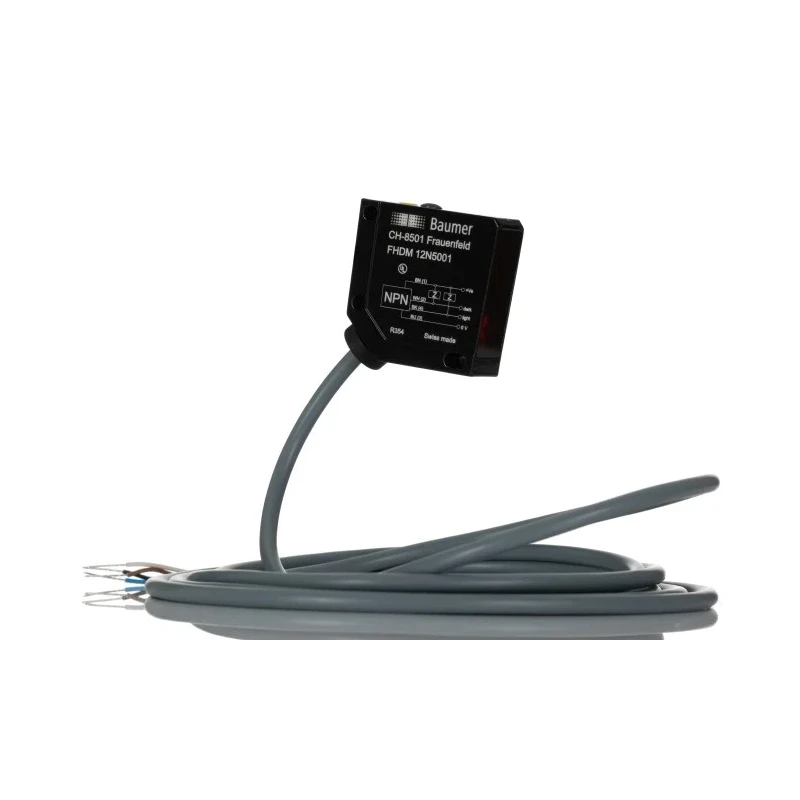

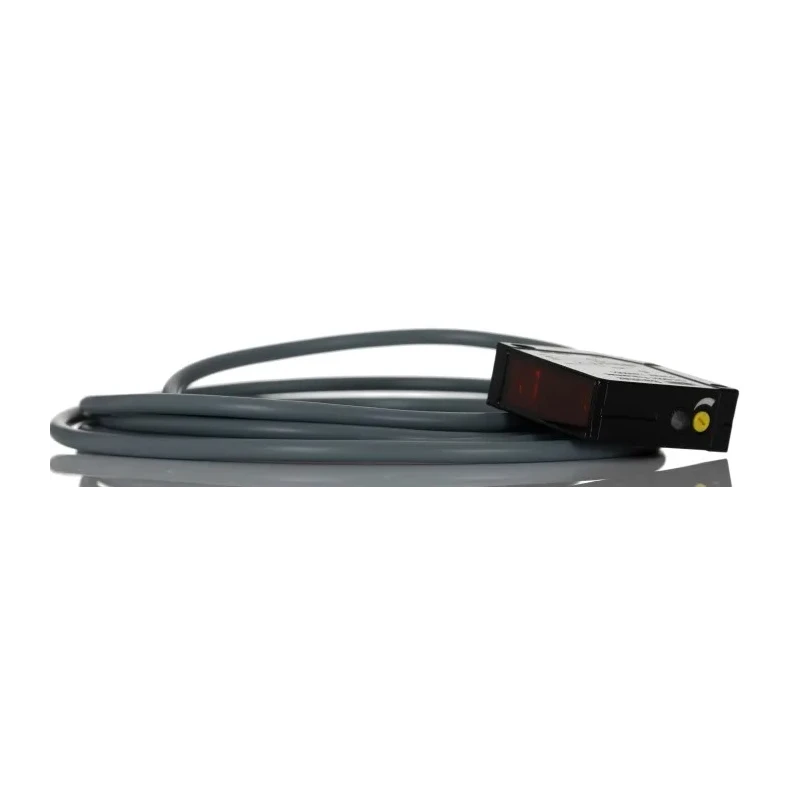

Baumer Diffuse Photoelectric Sensor, Block Sensor, Detection Range 15 mm to 300 mm, NPN Output, IP67, 30V DC FHDM 12N5001

Baumer FHDM 12N5001 is a high-performance diffuse photoelectric sensor engineered for industrial automation and control applications. It features a compact block sensor design with a detection range from 15 mm to 300 mm, enabling precise object detection in various manufacturing, packaging, and processing environments.

The sensor is equipped with an NPN output type and offers both normally open and normally closed output configurations to provide flexibility in wiring and control logic integration. With an IP67 rating, the sensor is sealed against dust and water ingress, facilitating reliable operation even in demanding industrial conditions.

Operating at a supply voltage range from 10 to 30 Vdc and a maximum current of 100 mA, the sensor ensures efficient power consumption and compatibility with standard industrial controllers. The pulsed visible red LED light source supports easy alignment and setup, reducing installation time.

The response time of 1 ms supports high-speed applications, while built-in short circuit and reverse polarity protections increase robustness and reduce downtime. Status LEDs offer visual indication of sensor status, and the adjustable sensitivity range allows tuning to specific application requirements.

Constructed with a die cast zinc housing and designed for panel mounting, the sensor provides mechanical durability and ease of installation. It operates reliably within a temperature range of -25°C to +65°C, covering most industrial and laboratory conditions.

Miniature diffuse sensor with background suppression for precise detection. N/O and N/C output configurations provide wiring flexibility. Sealed to IP67 for robust environmental protection. Supply voltage range of 10 to 30 Vdc and max current 100 mA.

Pulsed visible red beam for simple installation and alignment. Fast 1 ms response time enhances process speed. Protection against short circuits and reverse polarity. Status LEDs indicate operational status clearly. Adjustable sensitivity for various applications.

Die cast zinc housing ensures durability. Panel mount type for easy installation. Operating temperature range from -25°C to +65°C.

This sensor is ideal for use in industrial, manufacturing, process automation, packaging, and laboratory environments requiring precise and reliable object detection. Baumer's FHDM 12N Series Photoelectric Sensors provide outstanding performance and durability for a wide range of automation control tasks.
