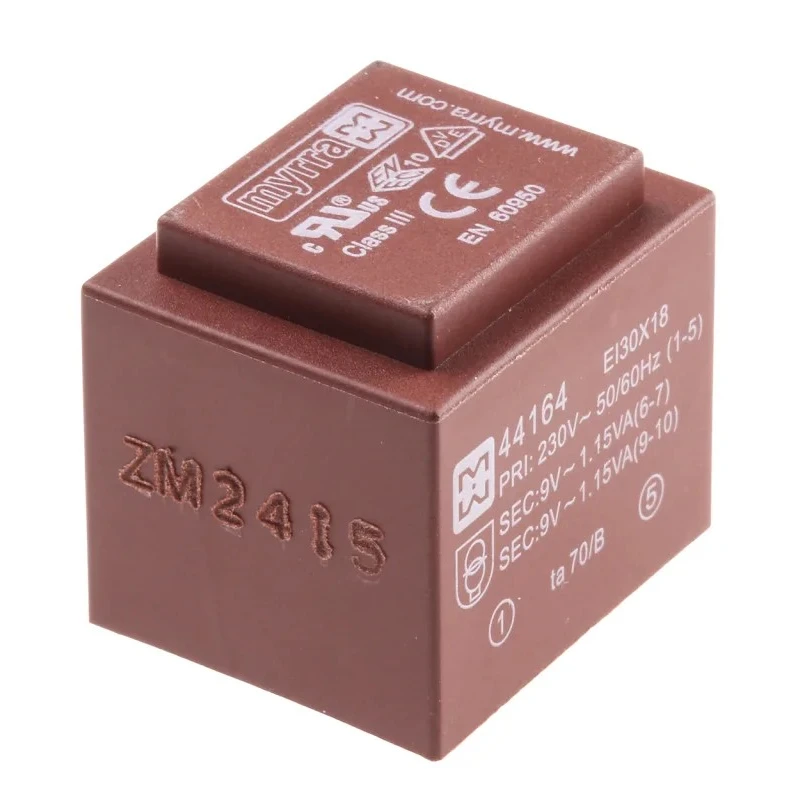

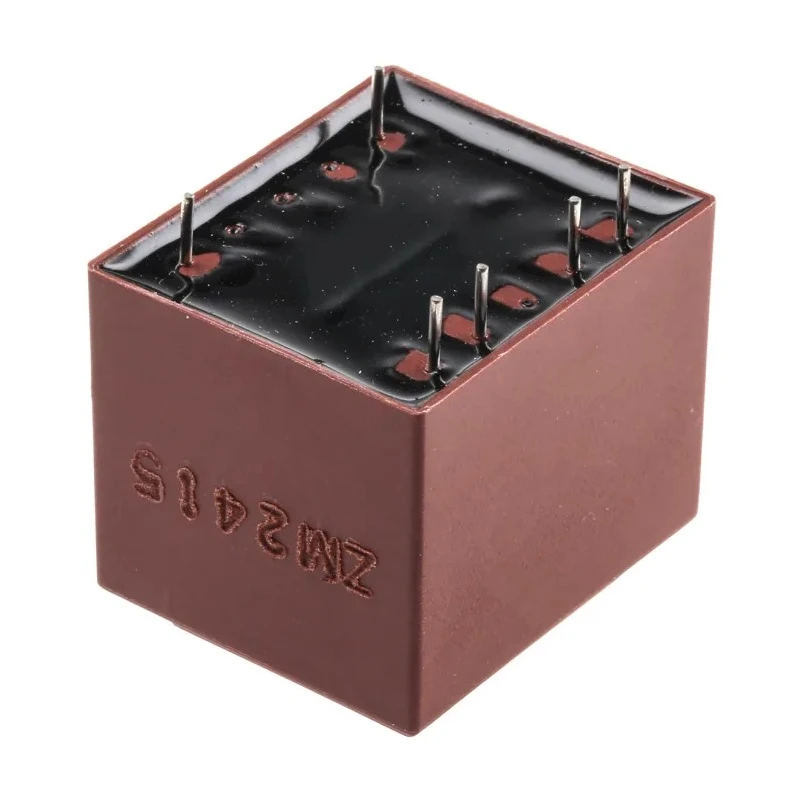

Myrra Professional Safety PCB Transformer 2 x 9V 1.8VA 230 V ac Insulation 4kV Series 44000 44164

Myrra 44164 is a professional safety PCB Transformer belonging to the 44000 series, featuring a nominal secondary voltage of 2 x 9V and total power rating of 1.8VA. It is designed primarily for mounting on printed circuit boards according to European grid standards.

This transformer operates with a primary voltage of 230 V AC and provides two independent output voltages. Its EI 30 core construction is vacuum-filled with resin to ensure resistance to aging and enhanced insulation, withstanding voltages above 4000V. It is inherently short circuit proof and made from non-flammable and self-extinguishing materials, making it highly reliable for industrial and electronic applications.

The unit features compact dimensions of 32.6mm (length) x 27.6mm (width) x 29.8mm (depth), and a lightweight construction weighing 70 grams. It is rated for a maximum operating temperature of 250°C and a frequency range between 50Hz to 60Hz, offering stable performance across international power systems.

This product complies with multiple international standards and approvals including CCA procedure, UL 5085, CEI 85, UL 94 VO, VDE EN 61558-2-6, EN 61558-2-6, and EN 60950 to ensure safety, quality, and reliability. The transformer does not include fixing screws, which are not provided and should be obtained separately.

The Myrra 44164 PCB Transformer is ideally suited for applications in industrial equipment, power supplies, electronic instrumentation, and other contexts where stable dual-voltage outputs are necessary on circuit boards. Its robust construction and certification make it appropriate for use in manufacturing, laboratory equipment, HVAC controls, and commercial electronics.

Provides dual 9V outputs with a total power of 1.8VA. Operates at a primary voltage of 230 V AC suitable for standard mains supply. Constructed with an EI-30 core type and encapsulated with resin for durability and aging resistance.

Features insulation voltage rating of 4kV ensuring electrical safety. Compact dimensions of 32.6mm length, 27.6mm width, and 29.8mm depth for easy PCB mounting. Maximum operating temperature is 250°C supporting demanding environments.

Operates reliably within frequency range of 50Hz to 60Hz. Certified to comply with CCA procedure, UL 5085, CEI 85, UL 94 VO, VDE EN 61558-2-6, and EN 60950 standards. Designed and manufactured in France ensuring quality manufacturing standards.

Mount type is PCB for secure and easy installation on printed circuit boards. Explore the full range of PCB Transformers and related electrical components for your industrial and electronic applications at EnvMart.
