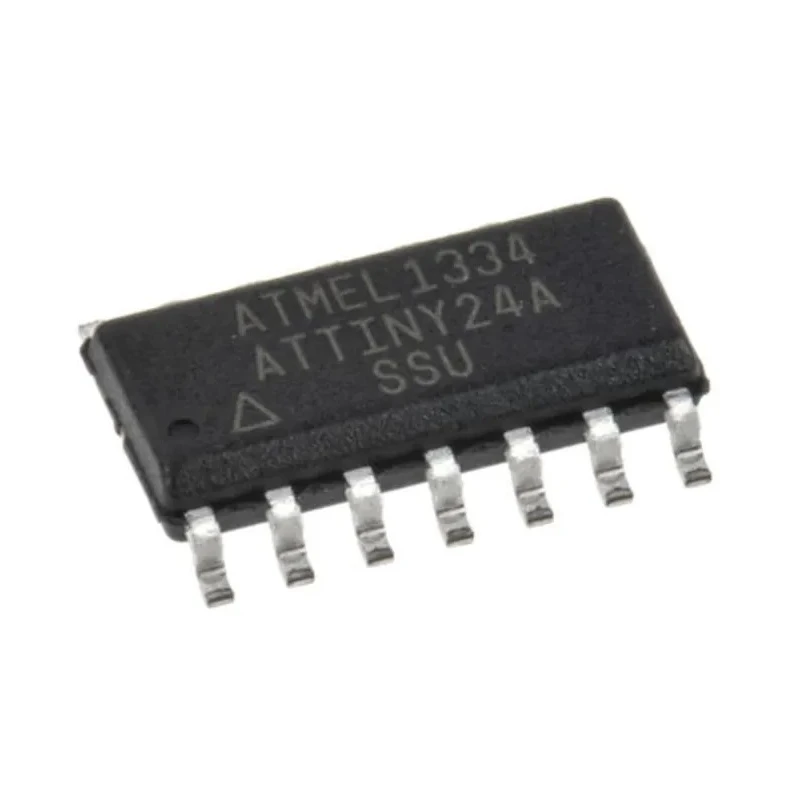

Microchip 8-Bit AVR ATtiny24A Microcontroller 20 MHz 2kB FLASH 14-Pin SOIC ATTINY24A-SSU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.74mm |
| Model | ATTINY24A-SSU |
| Width | 3.99mm |
| Mount Type | Surface |
| Series | ATTINY24A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 2kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller operates with low power consumption optimized for efficient embedded applications.
- It features an AVR device core with 8-bit data bus width and SPI interface type.
- The chip supports operating voltage range from 1.8 V to 5.5 V and temperature range from -40°C to 85°C.
- Memory includes 2kB program flash and 128-bit RAM with FLASH program memory type.
- Device includes 12 programmable I/Os, 8 bit ADC channels, and two timers for flexible control tasks.
- Compact dimensions of 8.74 mm length, 3.99 mm width and 1.5 mm height provide small footprint integration.
- This microcontroller offers capacitive touch support and high code efficiency for embedded designs.
- Suitable for automotive, industrial, and consumer electronics requiring power efficiency and performance.
Product Description
Microchip ATTINY24A-SSU is an 8-bit picoPower tinyAVR microcontroller designed for applications requiring low power consumption and a compact footprint. It delivers up to 20 MHz maximum clock speed with 2kB of FLASH memory and 128-bit RAM, packaged in a 14-pin SOIC surface mount device.
This device operates over a wide voltage range from 1.8 V to 5.5 V, making it versatile for battery-powered and low-voltage systems. It is optimized for speed and code efficiency, featuring SPI interface and an AVR RISC architecture, supporting embedded system designs focusing on low power and high integration.
It includes 12 programmable input/output pins, 8 channels of 10-bit ADCs, two timers, and an analogue comparator, enabling complex control and sensing applications. The microcontroller is rated for operation in industrial temperature ranges (-40°C to 85°C), making it suitable for automotive and industrial environments.
The compact 8.74 mm by 3.99 mm by 1.5 mm SOIC package suits space-critical designs, and the picoPower technology enables extended battery life in portable devices. This microcontroller excels in consumer electronics, IoT devices, measurement instruments, and low-power embedded systems.
It does not carry automotive-grade certifications but is broadly applicable for general-purpose microcontroller applications across electronics manufacturing, prototyping, and embedded control systems.
Operates at 20 MHz clock frequency. 2kB FLASH memory with 128bit RAM. 14-pin SOIC package with surface mount type. Wide supply voltage range from 1.8 V up to 5.5 V. Supports SPI communication interface. Includes 12 programmable I/Os and two timers.
Industrial operating temperature from -40°C to 85°C. 8 x 10-bit ADC channels and 1 analogue comparator. RISC architecture for efficient processing. Explore Microchip Microcontrollers and related semiconductor products at EnvMart for your embedded electronics and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This microcontroller operates at a maximum clock frequency of 20 MHz.
It supports a wide operating voltage range from 1.8 V to 5.5 V.
This model includes 12 programmable input/output pins.
It features 2kB of FLASH program memory and 128-bit RAM.
The dimensions are 8.74 mm in length, 3.99 mm in width, and 1.5 mm in height.
It supports 8 channels of 10-bit analog-to-digital converters (ADCs).
It operates within an industrial temperature range of -40°C to 85°C.
This unit supports the SPI communication interface.
The ATtiny24A is packaged in a 14-pin SOIC surface mount type.
It includes two timers for flexible control tasks.
It features an AVR RISC architecture for efficient processing.
This microcontroller is suitable for automotive, industrial, and consumer electronics applications requiring low power consumption and performance.
