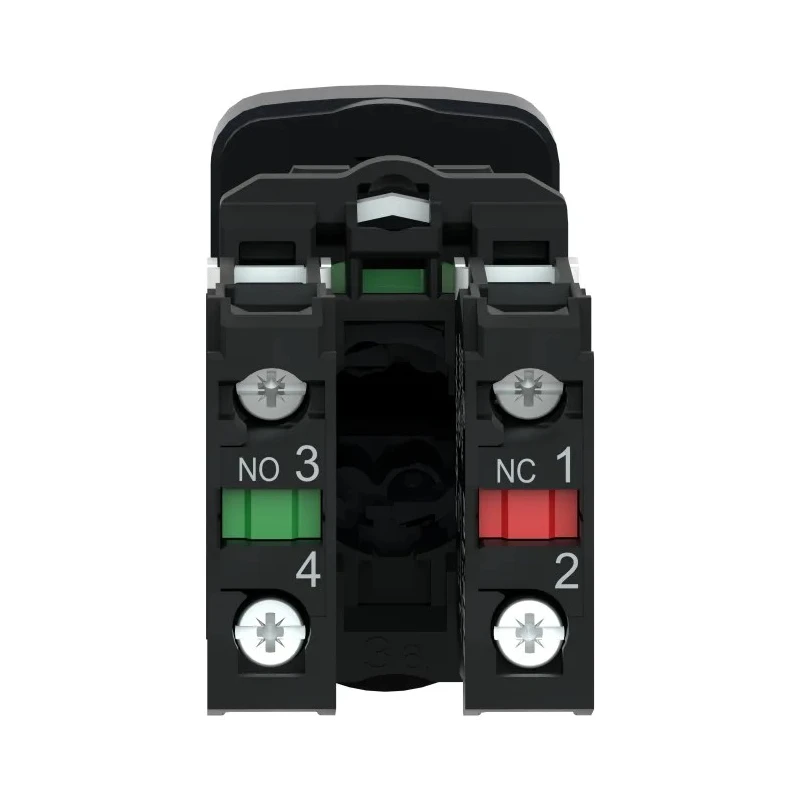

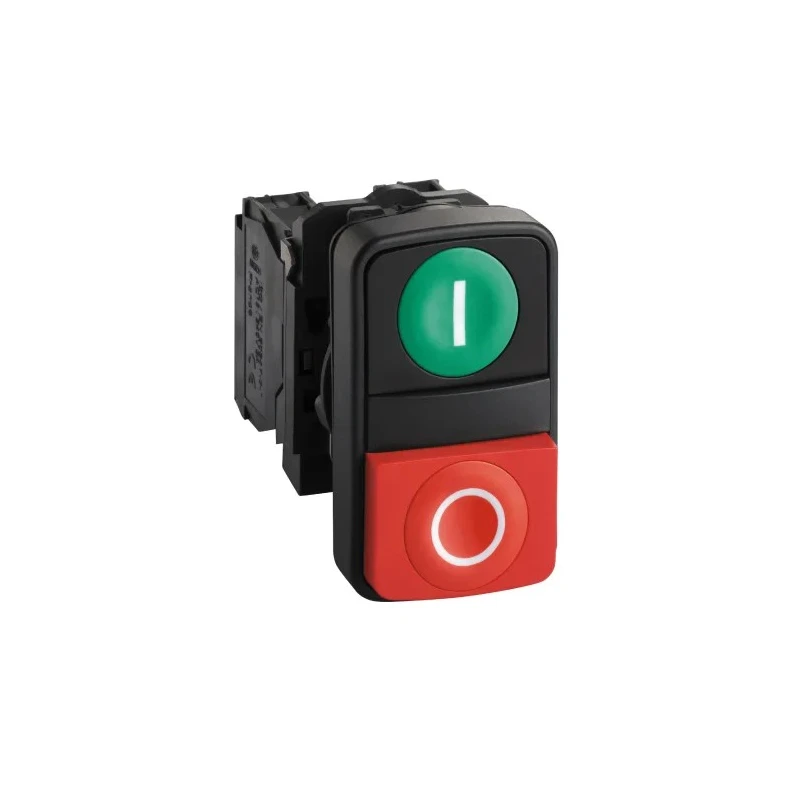

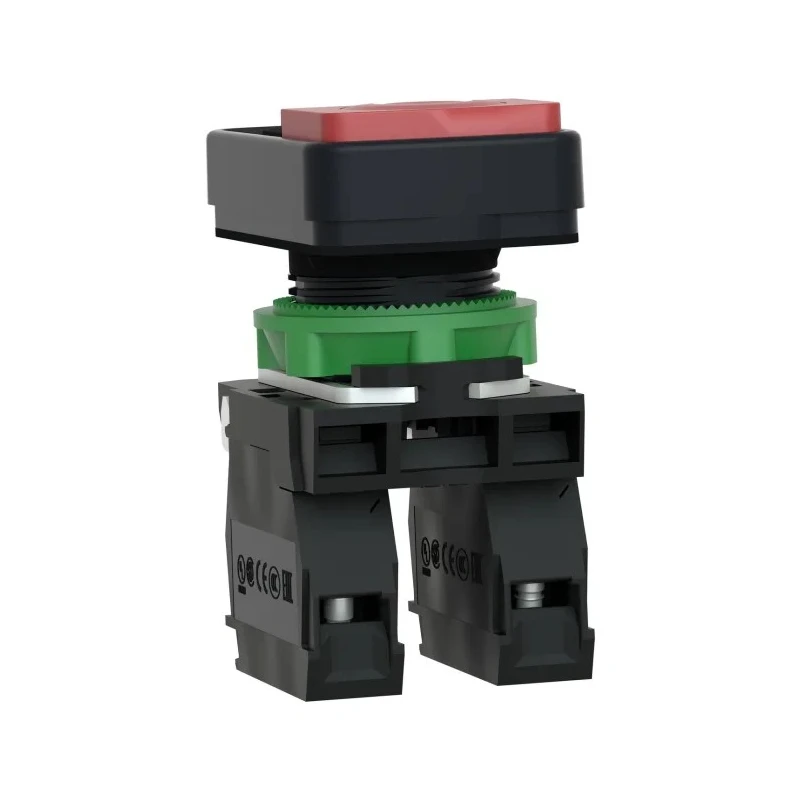

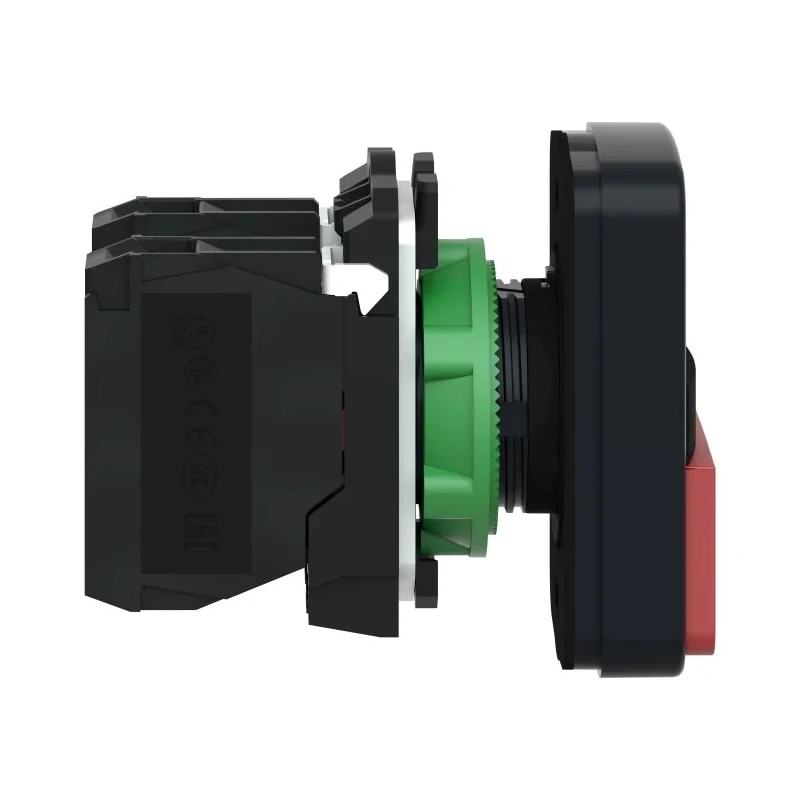

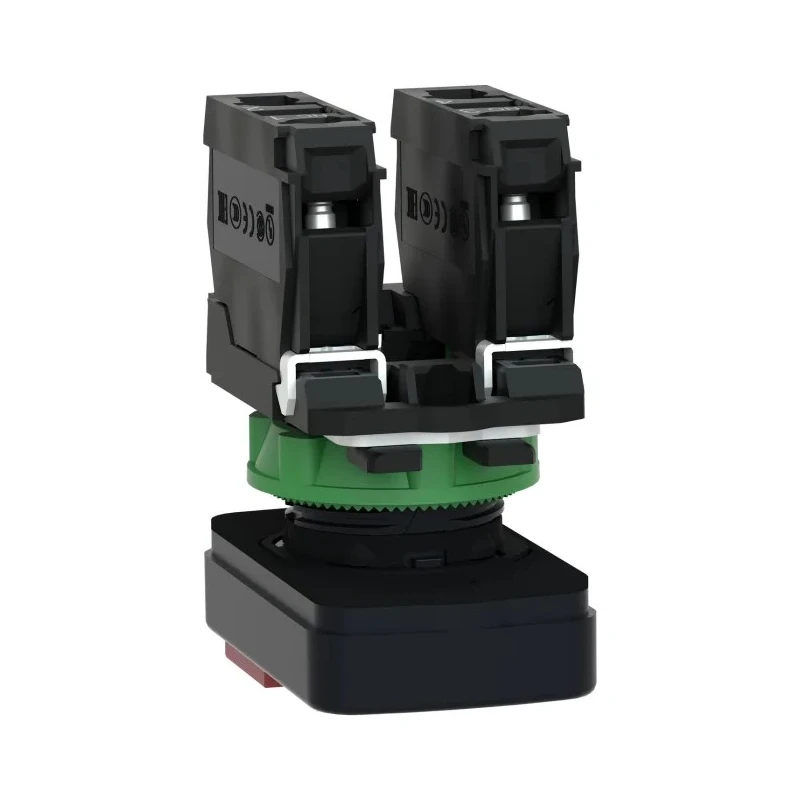

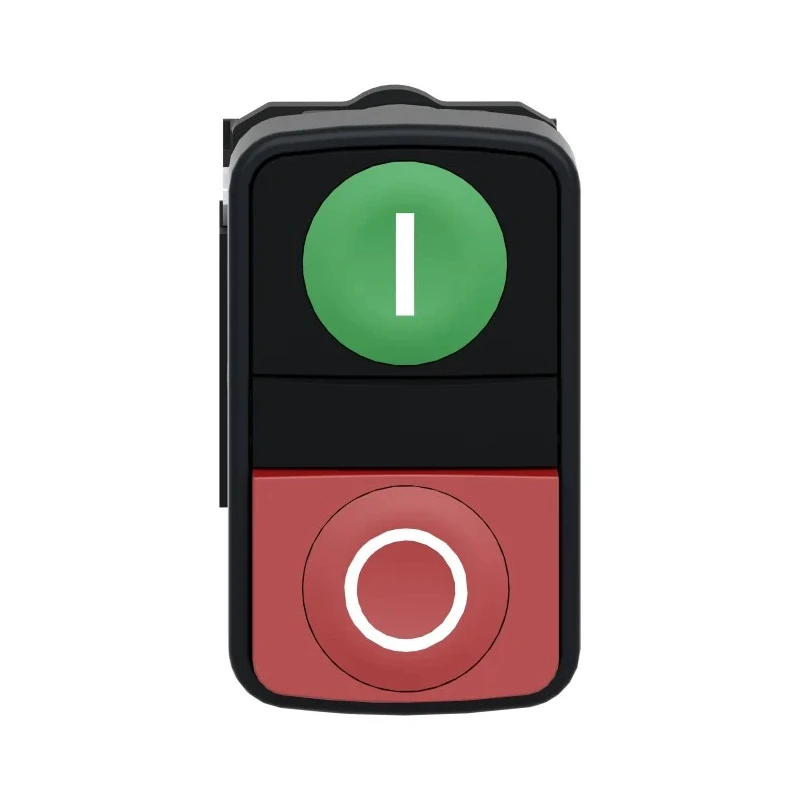

Schneider Electric Harmony XB5 Series Push Button Switch, Slow Break, Panel Mount, 22 mm Cutout, SPDT XB5AL73415
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 50mm |
| Length | 59mm |
| Model | XB5AL73415 |
| IP Rating | IP66, IP69, IP69K |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | Double Head |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| Switch Operation | Slow Break |
| Contact DC Voltage | 600V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Contact AC Voltage | 600V |
| Better World Claim | Repairable by the End User |
| Legend | I/O |
Key Features
- Slow Break mechanism provides controlled operation for automation systems.
- Panel mount type with 22 mm cutout ensures easy integration.
- Single Pole Double Throw (SPDT) contact configuration offers versatile circuit control.
- High ingress protection rated IP66, IP69, and IP69K for extreme environmental resistance.
- Durable rectangular actuator style suitable for industrial panels.
- Operates reliably from -25°C to 70°C for wide temperature range.
- 600 V AC/DC voltage rating with 10 A contact current capability.
- Screw terminal type for secure and reliable electrical connections.
Product Description
Schneider Electric XB5AL73415 Harmony XB5 Series Push Button Switch is engineered for robust panel mounting with a 22 mm cutout diameter. Featuring a slow break switch operation and SPDT contact configuration, it is designed to offer precise control in industrial automation and machinery applications. This push button is constructed with durable plastic materials and comes in a rectangular actuator style for easy integration into control panels.
The switch is rated for a maximum AC and DC voltage of 600 V and supports a contact current of 10 A, ensuring high reliability and performance. It provides excellent environmental resistance with IP66, IP69, and IP69K ingress protection ratings, making it suitable for environments with high moisture and dust exposure.
The operating temperature range of -25°C to 70°C allows the device to function effectively in diverse climates. Screw terminals ensure secure electrical connectivity, while the double head switch configuration enhances operation reliability. Compliance with multiple international standards such as EN/IEC 60947 and UL 508 guarantees safety and quality.
This Push Button Switch is ideal for use in machinery control systems, automation projects, and electrical panels requiring clear and reliable operation indication. Its repairable design supports sustainability and long-term use in industrial settings.
Slow Break mechanism provides controlled operation for automation systems. Panel mount type with 22 mm cutout ensures easy integration. SPDT contact configuration offers versatile circuit control. High IP66, IP69, and IP69K ratings for moisture and dust resistance.
Rectangular actuator style designed for industrial panels. Operates within temperature range of -25°C to 70°C. Rated for 600 V AC/DC and 10 A contact current. Screw terminals for secure connections. Compact size suitable for panel installation.
Explore the extensive range of Schneider Electric industrial switches at EnvMart for reliable performance in electrical and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch is rated for a maximum AC and DC voltage of 600 V.
This model supports a contact current of 10 A.
It has IP66, IP69, and IP69K ingress protection ratings, making it suitable for environments with high moisture and dust exposure.
The operating temperature range is from -25°C to 70°C.
It features screw terminals for secure and reliable electrical connections.
The panel cutout size required for this switch is 22 mm.
This model has a rectangular actuator style designed for industrial panels.
It features a slow break switch operation, providing controlled operation for automation systems.
The contact configuration is Single Pole Double Throw (SPDT), offering versatile circuit control.
The country of origin for this switch is India.
It complies with multiple international standards such as EN/IEC 60947 and UL 508, ensuring safety and quality.
This push button switch is ideal for use in machinery control systems, automation projects, and electrical panels requiring reliable operation indication.
