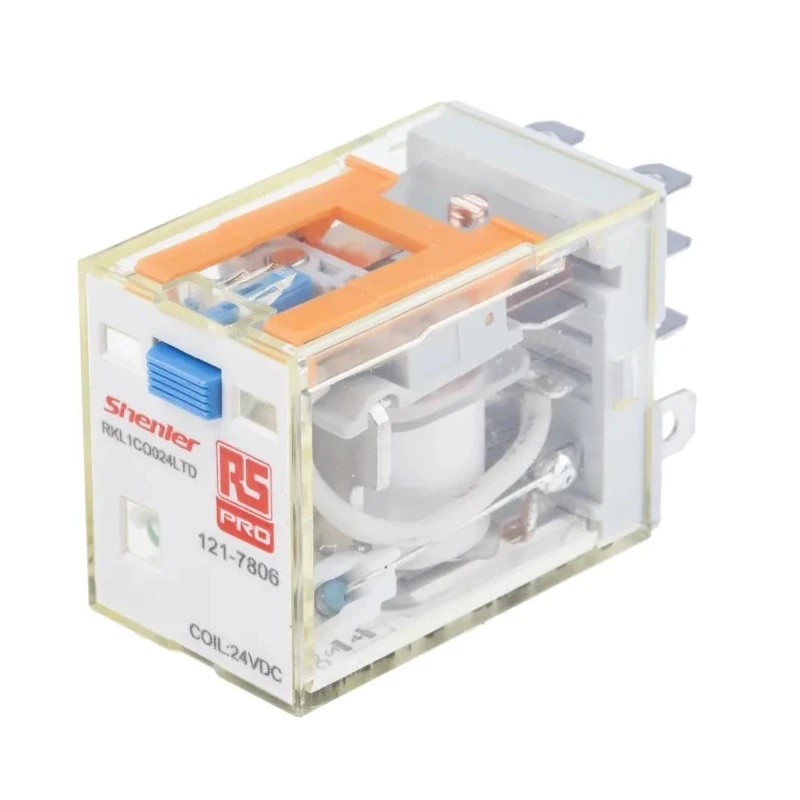

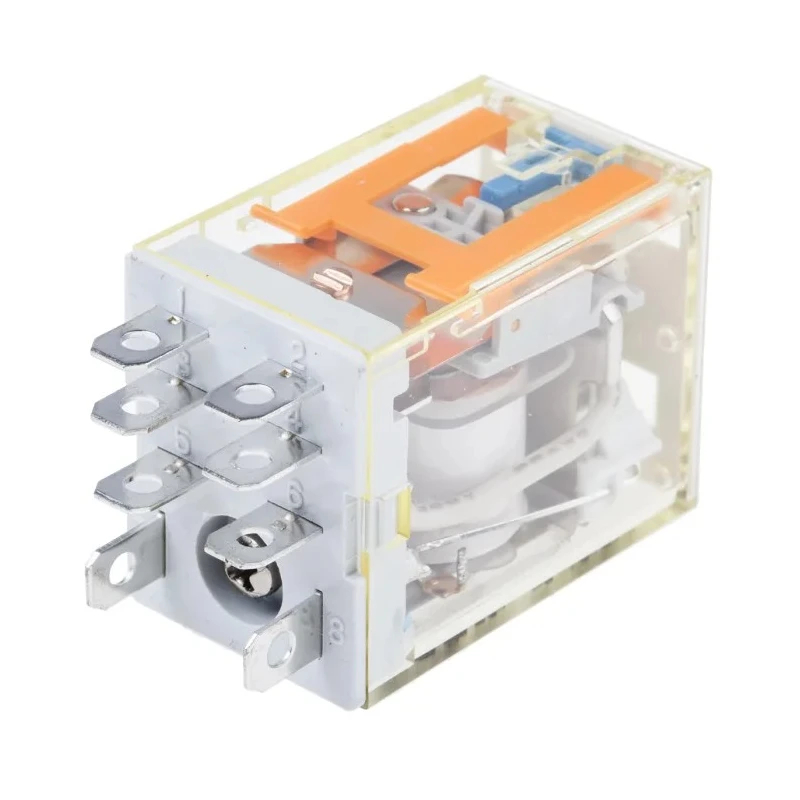

RS PRO Power Relay Single Pole Double Throw SPDT 24V DC Coil 16A Switching Current 480W Coil Power RKL Series 121-7806
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 36mm |
| Length | 28mm |
| Model | 121-7806 |
| Width | 21.5mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 16A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, CE |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 480W |
Key Features
- Single pole double throw (SPDT) contact configuration for versatile switching.
- 24V DC coil voltage with 480W coil power for reliable operation.
- Switching current rated at 16A suitable for heavy-duty electrical circuits.
- Robust plug-in terminal type enabling easy installation and maintenance.
- Silver alloy contacts with gold plating for enhanced conductivity and durability.
- Operating temperature range from -25°C to 55°C for diverse environmental conditions.
- Low contact resistance of 50mΩ ensuring minimal power loss.
- Compliance with RoHS and CE standards for safety and environmental requirements.
Product Description
RS PRO 121-7806 Power Relay is a single pole double throw (SPDT) industrial plug-in relay from the RKL Series designed for electrical enclosures, machine building, HVAC systems, and industrial applications. It features a 24V DC coil with a coil power of 480W providing stable and efficient actuation.
This relay supports a switching current of 16A, rated for switching AC voltages up to 250V and DC voltages up to 30V, making it suitable for controlling various electrical loads in demanding conditions.
The compact design with dimensions of 28mm (L) x 36mm (H) x 21.5mm (W) and silver alloy contacts with gold plating ensures reliable electrical connections and extended service life. The plug-in terminal type simplifies installation, while the LED indicator and lockable test button enhance usability and diagnostics during operation.
Operating temperatures range from -25°C to 55°C, enabling use in harsh industrial environments. Contact resistance is low at 50mΩ, contributing to efficiency by minimizing losses. The relay meets RoHS and CE standards, ensuring compliance with environmental and safety regulations.
RS PRO power relays are widely used in industrial automation, electrical panels, HVAC control systems, and manufacturing equipment for switching and controlling power loads with precision and reliability.
Single pole double throw (SPDT) contact configuration for versatile switching. 24V DC coil voltage with 480W coil power for reliable operation. Switching current rated at 16A suitable for heavy-duty electrical circuits. Plug-in terminal type for secure and easy installation.
Compact size optimized for space-constrained applications. Silver alloy, gold plated contacts for durable electrical connections. Operating temperature range from -25°C to 55°C accommodates diverse environments. Low contact resistance of 50mΩ ensures energy efficient performance.
Complies with RoHS and CE standards ensuring safety and environmental compliance. Explore our selection of Power Relays and electrical components at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this power relay is 16A, making it suitable for heavy-duty electrical circuits.
The coil voltage of this model is 24V DC.
The dimensions of this relay are 28mm in length, 36mm in height, and 21.5mm in width.
This relay features a single pole double throw (SPDT) contact configuration for versatile switching applications.
The maximum operating temperature for this power relay is 55°C.
It uses a plug-in terminal type, which allows for secure and easy installation.
The contact resistance is low at 50mΩ, which helps minimize power loss during operation.
This model complies with RoHS and CE standards, ensuring safety and environmental compliance.
The coil power rating of this relay is 480W.
This relay can switch AC voltages up to 250V and DC voltages up to 30V.
The minimum operating temperature of this relay is -25°C, allowing it to function in diverse environmental conditions.
This power relay is suitable for applications in electrical enclosures, machine building, HVAC systems, and industrial automation.
