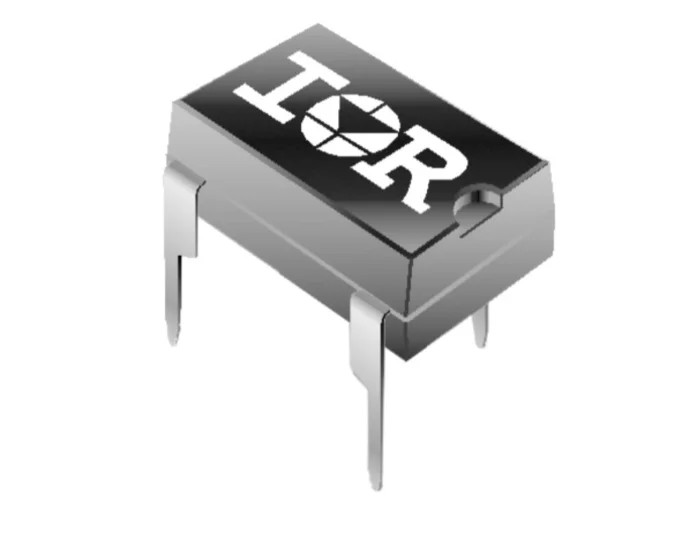

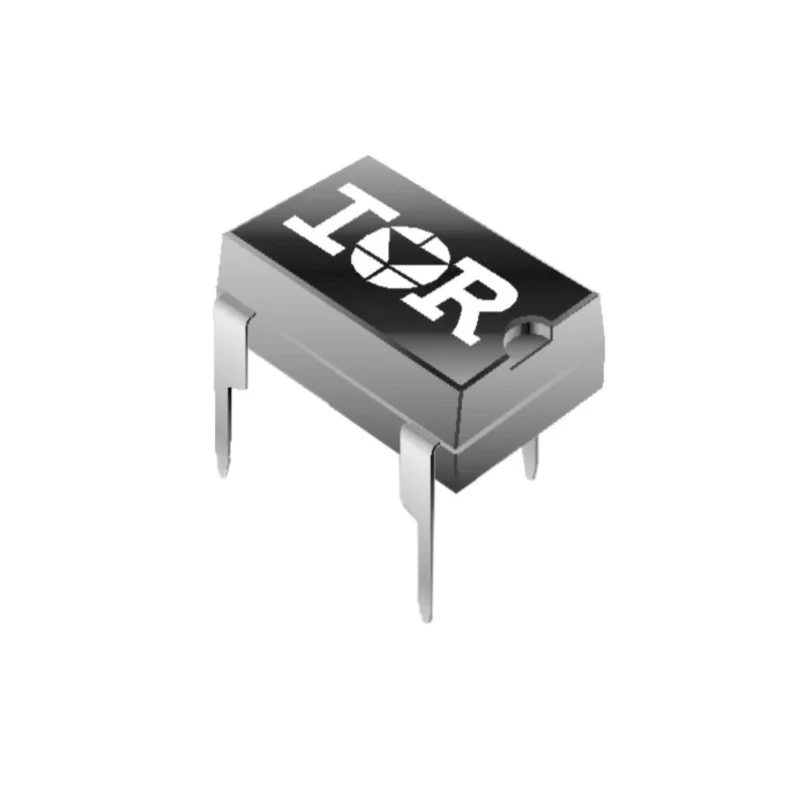

Infineon Solid State Relay DIP-8 Package, 150 mA Load Current, 300 V AC/DC Load Voltage, 6 V AC/DC Control Voltage PVA33NPbF

Infineon's PVA33NPbF series solid state relay is a compact and robust solution designed for industrial and commercial electronic applications requiring reliable switching of analog signals. The device is encapsulated in a DIP-8 package suitable for surface mount installation, providing ease of integration into automated and machinery control systems.

This relay supports a maximum load current of 150 milliamperes and can handle load voltages up to 300 volts AC or DC, making it suitable for switching low to moderate power loads in diverse environments. With a control voltage rating of 6 volts AC/DC, the relay activates with a low input signal, allowing efficient energy use and precise control.

The relay features a SPST configuration with MOSFET output type, which provides bounce-free switching and high reliability. The on-state resistance of 24 ohms limits conduction losses, contributing to system efficiency. Its operating temperature range from minus 40 to plus 85 degrees Celsius ensures stable performance in demanding industrial or automation scenarios.

The device is UL Recognised, indicating adherence to strict safety and reliability standards required in commercial and industrial applications. Its small capacitance of 6 pF minimizes signal interference, making it ideal for sensitive electronic control circuits.

Typical use cases include automation systems, electronic instrumentation, signal conditioning, and equipment requiring electronic relay switching without moving parts, which enhances reliability and reduces mechanical wear. This solid state relay is a reliable choice for engineers and technicians focused on efficient and durable electronic control solutions.

Maximum load current of 150 mA enables handling small to medium electrical loads. Supports load voltages up to 300 V AC/DC for versatile application. Control voltage rated at 6 V AC/DC for precise and low power triggering.

Surface mount DIP-8 package type suits compact electronic assemblies. Single-pole single-throw (SPST) contact configuration for normally open switching. On state resistance of 24 ohms reduces power loss during conduction.

Operating temperature range from -40°C to 85°C ensures durability in varied environments. UL Recognised standard certifies industry compliance and safety. Explore our range of high-quality Solid State Relays and related electrical components on EnvMart for your industrial automation and electronic control needs.
