Broyce Control RS PRO DIN Rail Timer Relay, 1-Contact, SPDT Switch, 230 V DC, 12 V AC, 230 V AC, 0.1 s to 100 h 102-6128

Broyce Control 102-6128 DIN Rail Timer Relay is a precision single-function timer relay designed for versatile industrial automation and control applications. With timing range from 0.1 seconds up to 100 hours, this relay is ideal for tasks requiring delayed off or delay on release functionality. It supports a wide supply voltage input from 12 V AC, 230 V AC to 230 V DC, making it flexible in various electrical systems.

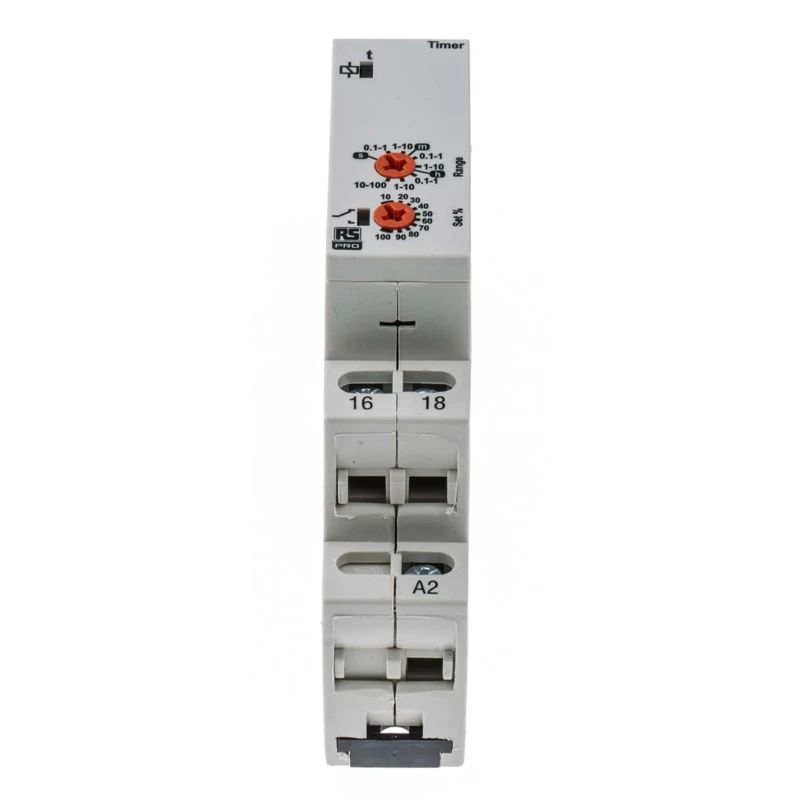

The relay features a single SPDT (single pole double throw) contact rated at 8A, designed for reliable switching operations. Its compact dimensions (89mm length, 66.5mm height, 17.5mm width) allow space-saving installation on standard DIN rails. The timing can be precisely adjusted using the front rotary switches and screwdriver slot, allowing fine tuning for specific time intervals.

Power and timing status are clearly visible with green LED indicators, while a separate red LED indicates the relay output state, facilitating easy monitoring and troubleshooting.

Designed to operate reliably within an ambient temperature range of -20°C to 60°C, this timer relay is suitable for heavy-duty industrial environments including textile manufacturing, chemical processing, mining, irrigation systems, raw material handling, food and beverage industries, and other general industrial process control.

The unit features screw type terminals for secure and maintenance-friendly wiring. Its compliance with CE, UL, IEC standards assures high quality and safety of use. The relay supports a supply voltage range of 12 V AC to 230 V AC and 230 V DC.

Equipped with one SPDT contact rated at 8A for reliable switching. Timing adjustment via screwdriver slot allows fine tuning of selected time ranges. Compact DIN rail mount with dimensions 89mm length, 66.5mm height, and 17.5mm width.

Features green LED for power and timing status indication. Red LED indicates relay output status clearly during operation. Suitable for use in industrial control, chemical, mining, irrigation, and textile automation. Operating temperature range from -20°C to 60°C ensures durability in harsh environments.

This Timer Relay is part of the RS PRO range, which offers trusted, rigorously tested industrial products built to comply with demanding international standards. Explore more RS PRO automation and control gear products on EnvMart for your industrial applications.
