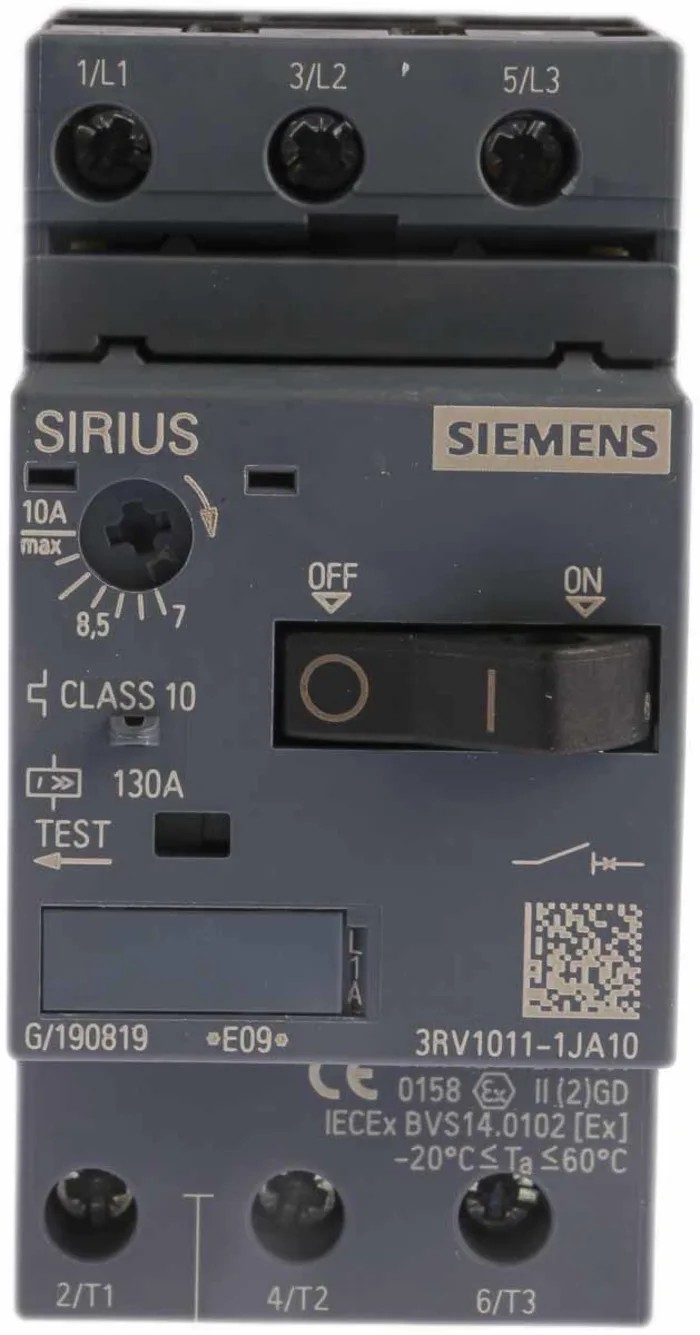

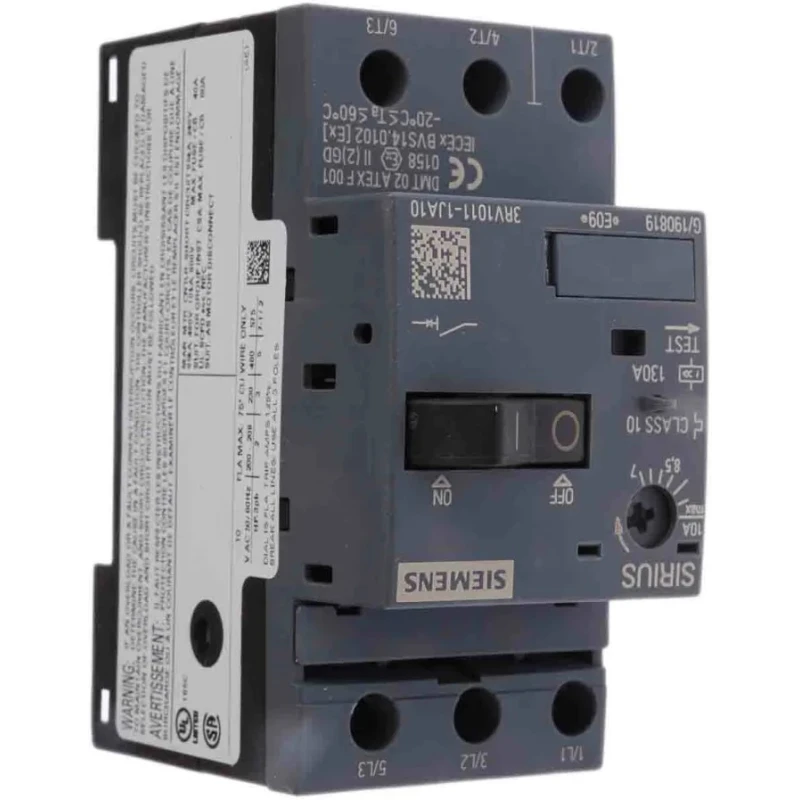

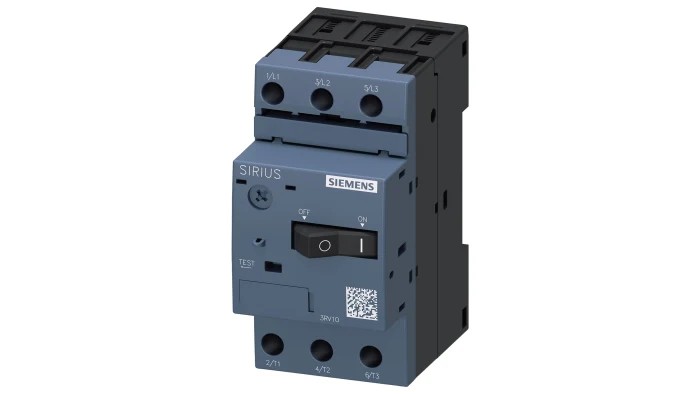

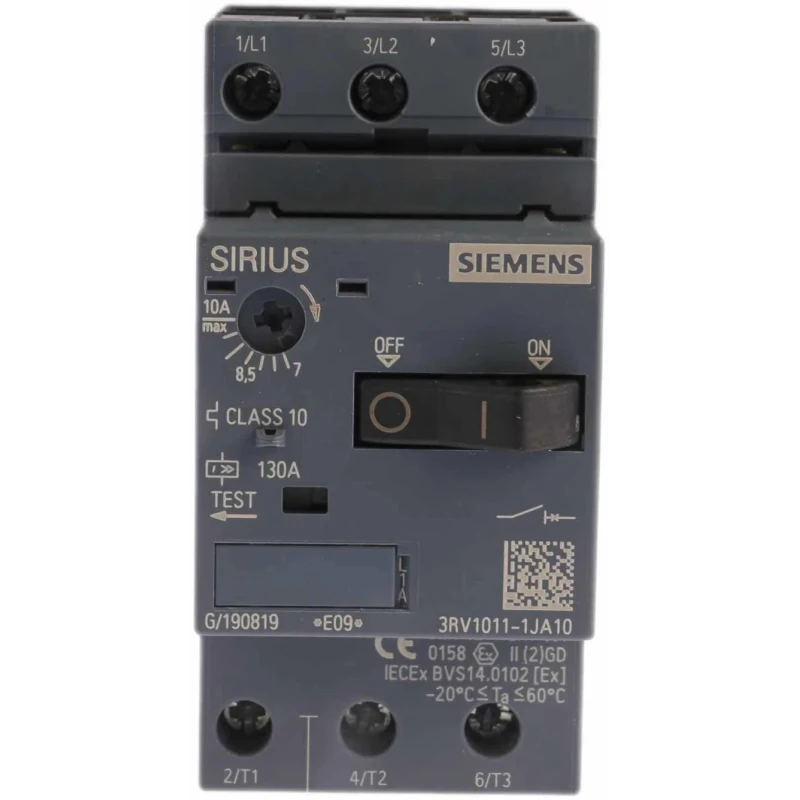

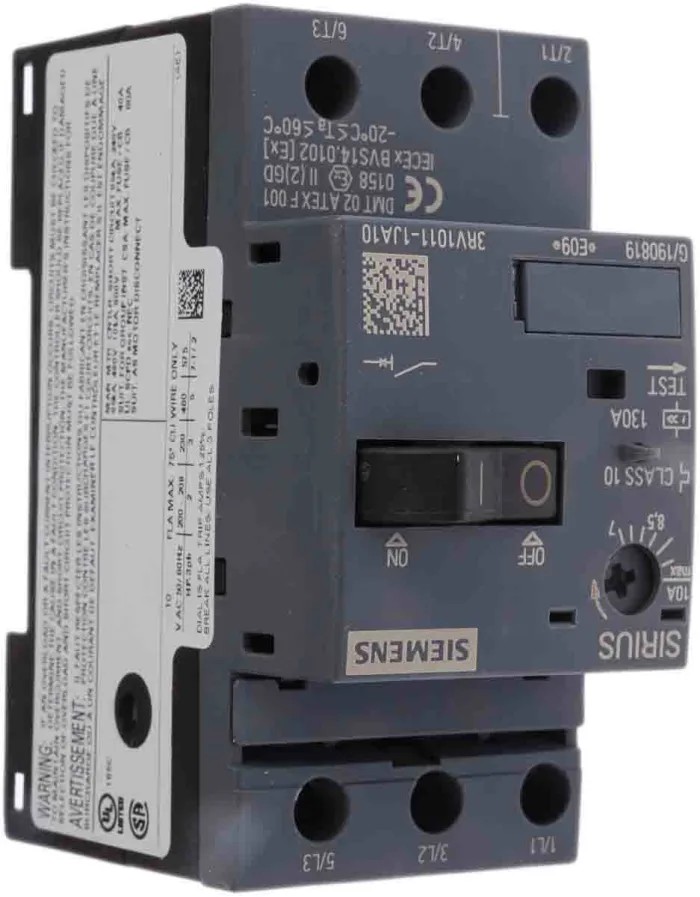

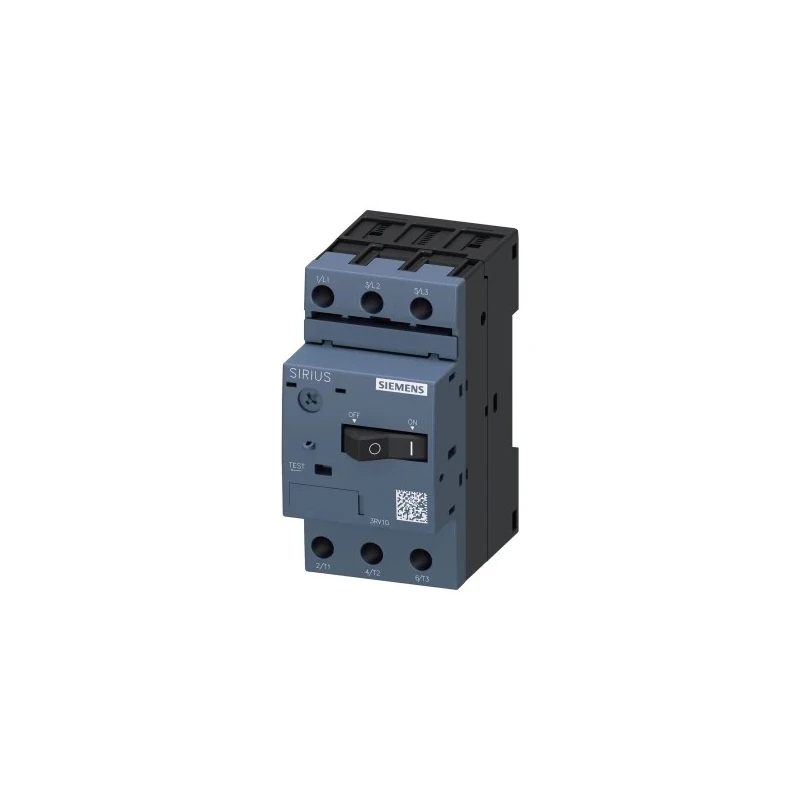

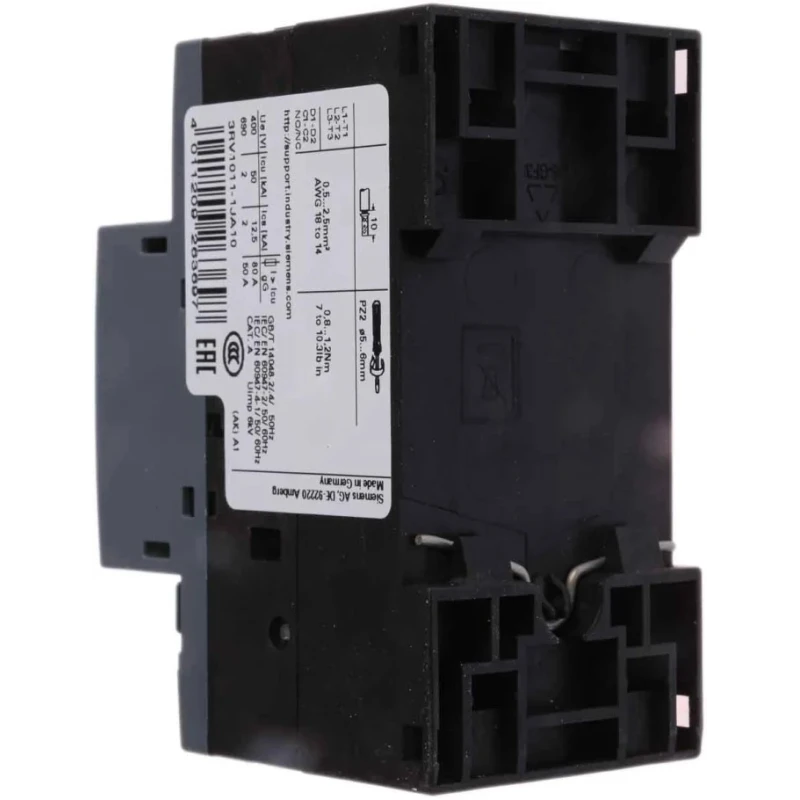

Siemens 10A 3RV1 Motor Protection Circuit Breaker, 690V Supply Voltage, IP20, 3 Poles, -20 °C to 60 °C 3RV1011-1JA10

Siemens 3RV1011-1JA10 Motor Protection Circuit Breaker is a robust and reliable device designed to safeguard electric motors against overloads, short circuits, and phase failures. Operating at a supply voltage of 690V and rated for 10A current, it belongs to the 3RV1 series of motor protection systems employing current sensing technology.

This device features a compact and space-saving design with overall dimensions of 90mm length, 45mm width, and 75mm depth, allowing for convenient DIN rail mounting in control panels. Its IP20 rating ensures safety against accidental finger contact and protection from ingress of solid objects larger than 12mm, making it suitable for industrial environments.

With an operating temperature range from -20 °C to +60 °C, it is capable of performing reliably under varied conditions. The circuit breaker incorporates 3 poles and offers a mechanical service life of 100,000 switching cycles, ensuring long-term durability and dependable operation in manufacturing, medical equipment, and general industrial applications.

The MPCB can be easily controlled via a built-in toggle switch for quick on/off operation. Compliance with international standards such as CSA, EN60947, IEC 947, UKCA, UL, and VDE 0990 underscores its quality and safety assurance. This product is engineered and manufactured in Germany.

Motor protection system 3RV1 with current sensing for accurate fault detection. Operating voltage of 690V for industrial motor protection. Compact size: 90mm length, 45mm width, and 75mm depth. IP20 rating for finger-safe operation and ingress protection.

Wide operating temperature range from -20 °C to +60 °C. Durability with 3 poles and 100,000 mechanical switching cycles. Complies with CSA, EN60947, IEC 947, UKCA, UL, and VDE 0990 standards. Manufactured in Germany ensuring high reliability.

This Siemens Motor Protection Circuit Breaker is ideal for protecting motors in industrial manufacturing, medical devices, building automation, and other commercial applications. It offers precise, reliable, and adjustable current protection for motors through its current sensing capabilities. Ensure the safety and longevity of your motors with this high-quality Siemens MPCB from EnvMart's industrial electrical components category.
