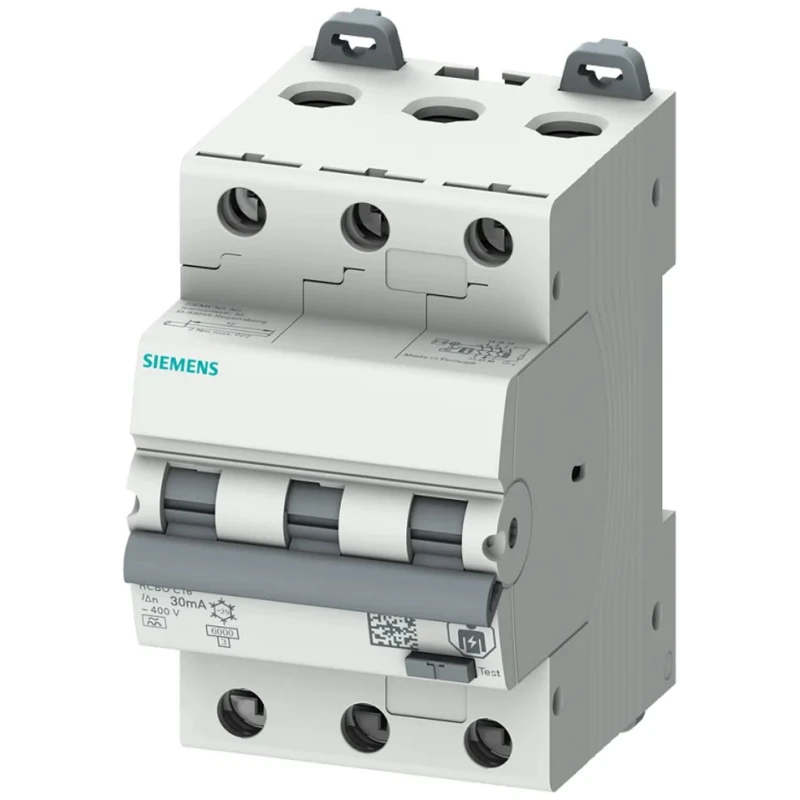

Siemens Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 3-Pole, 300mA Trip 5SU1636-6FP10

Siemens 5SU1636-6FP10 Residual Current Circuit Breaker with Overload Protection is engineered to provide exceptional safety and protection in electrical circuits. It is rated for a current of 10A and operates on a 3-pole configuration, making it suitable for multi-phase systems.

With a trip sensitivity of 300mA and a Type B tripping characteristic, this breaker detects both AC and DC residual currents, enhancing protection against electrical faults. The device conforms to rigorous standards including EAC and CE, ensuring compliance with international safety regulations.

The unit features a compact design with dimensions of 85mm height, 54mm width, and 72mm depth, facilitating efficient use of panel space. Mounting is done on a DIN rail, and connections are secured using screw terminals for reliability.

Its breaking capacity is 6kA, providing robust fault current interruption capability to protect wiring and connected equipment. The lever-type reset actuator allows operators to easily restore the circuit after fault clearance.

The product is part of the Siemens SENTRON 5SU1 series and is rated for a 400V AC system voltage. Additionally, it is constructed to be halogen-free and silicon-free, aligning with sustainability goals and environmental safety standards.

Manufactured in Portugal, the breaker is designed for industrial, commercial, and residential electrical safety applications, including automation, electrical distribution, and maintenance systems.

Designed for installation on DIN rail with screw terminal type for secure connections. Breaking capacity of 6kA ensures high fault current interruption capability. Rated for 400V AC voltage suitable for diverse electrical systems.

Type B tripping characteristic supports sensitive and fast response to DC and AC residual currents. Compact dimensions: 85mm height, 54mm width, and 72mm depth enable easy panel mounting. Lever reset actuator allows for convenient manual resetting after trips.

Better World product claim highlights extended product life and sustainability features. Halogen-free and silicon-free construction suitable for environmentally conscious applications. Complies with EAC and CE standards ensuring safety and quality compliance.
