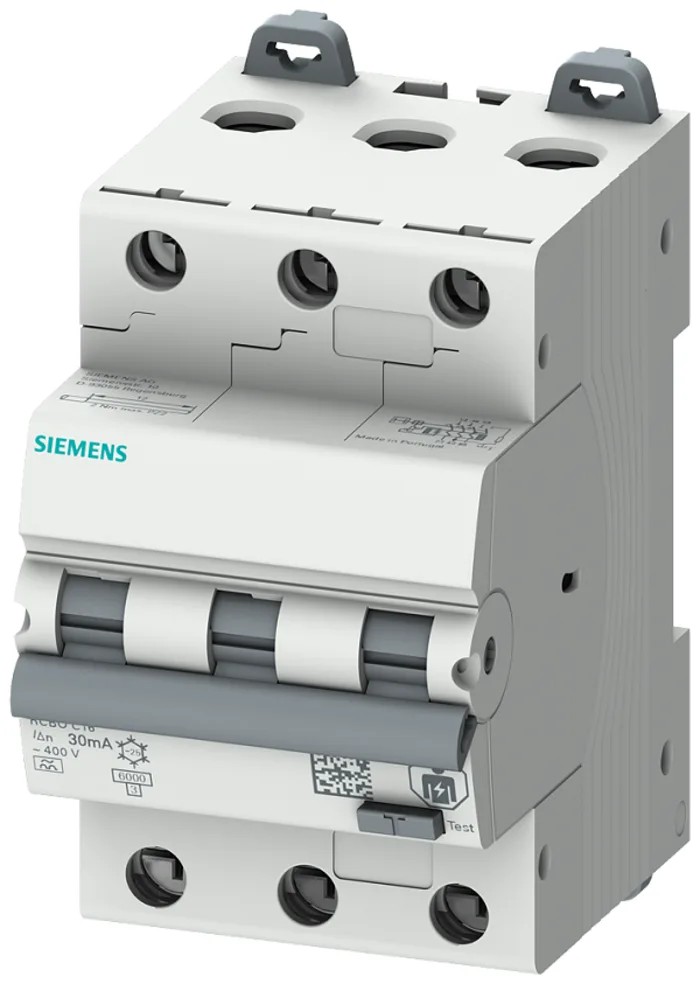

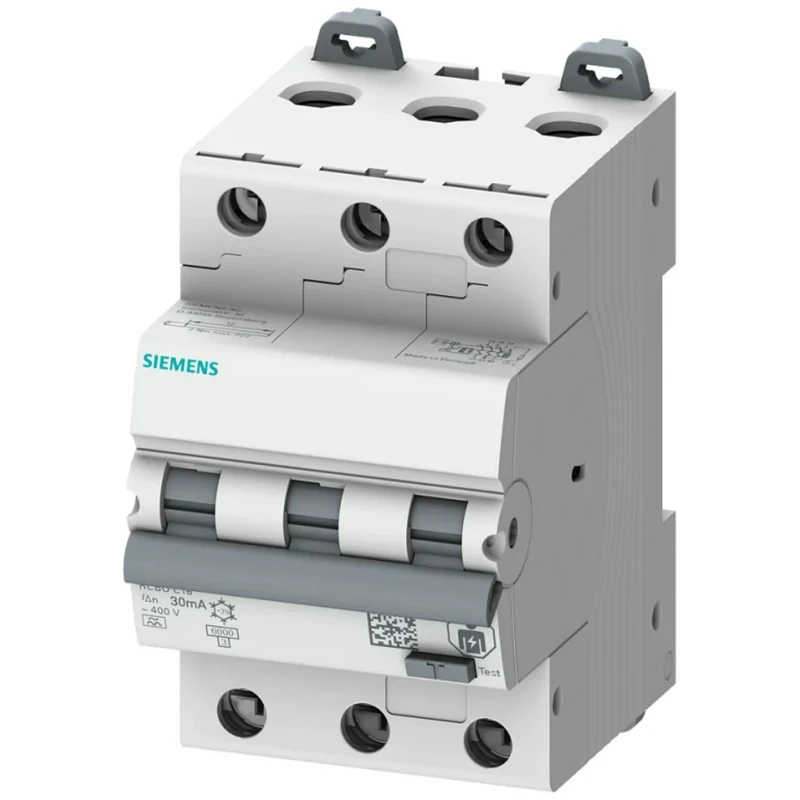

Siemens Residual Current Circuit Breaker with Overload Protection 13A Current Rating 3-Pole 30mA Trip 5SU1336-7FP13

Siemens 5SU1336-7FP13 Residual Current Circuit Breaker with Overload Protection is engineered to provide reliable electrical safety by combining residual current detection with overload protection. Operating at a 13A current rating and 240V AC rated voltage, this device ensures effective circuit interruption during leakage or overcurrent conditions. Its trip sensitivity of 30 mA is optimized for personal protection and fire prevention.

The device features a 3-pole configuration with thermal magnetic tripping mechanism and a breaking capacity of 6kA. Its mounting is straightforward on standard DIN rails with secure screw terminal connections. The compact form factor with dimensions 90mm in height, 70mm depth, and 35mm width enhances adaptability in control panels and switchgear assemblies.

Constructed with halogen-free and silicon-free materials, this RCBO supports safer and environmentally conscious installations. It carries certifications including VDE, RoHS, EAC, CE, and CCC, ensuring compliance with strict quality and safety standards.

Its lever reset actuator provides ease of manual reset for quick restoration after fault clearance. The Type A earth leakage protection function detects AC and pulsating DC residual currents to protect users from electric shocks and electrical fires, making it ideal for residential, commercial, and light industrial applications.

General purpose Residual Current Circuit Breaker with overload protection. 13A current rating with 3-pole thermal magnetic tripping. 30 mA trip sensitivity enhances leakage detection. 6kA breaking capacity for high fault clearing capability.

DIN rail mounting with screw terminals for secure installation. Compact dimensions: 90mm height, 70mm depth, 35mm width. Halogen-free and silicon-free construction. Conforms to VDE, RoHS, EAC, CE, and CCC standards. Lever reset actuator for convenient manual reset.

Origin: Portugal.

This Siemens RCBO is suitable for electrical installations requiring reliable protection against overloads and earth leakage currents. It is widely used in industrial, commercial, and residential environments to enhance electrical safety and comply with regulatory standards. Browse more Siemens electrical safety components on EnvMart for comprehensive protection solutions.
