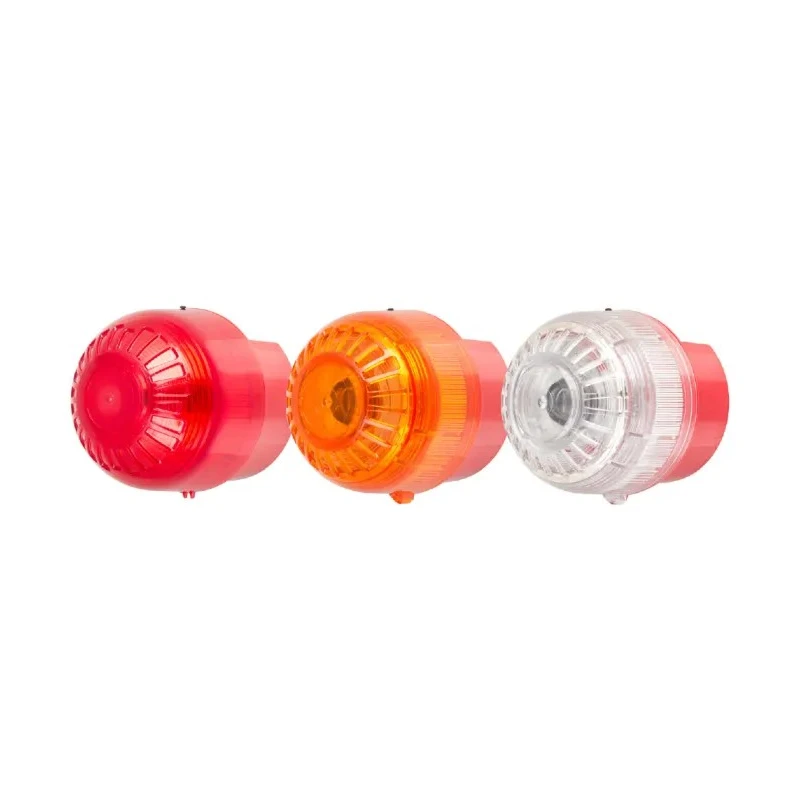

Klaxon IS Sonos Series Clear Sonos Beacon 24V Flashing Wall LED Bulb IP66 IP67 TCC-0006

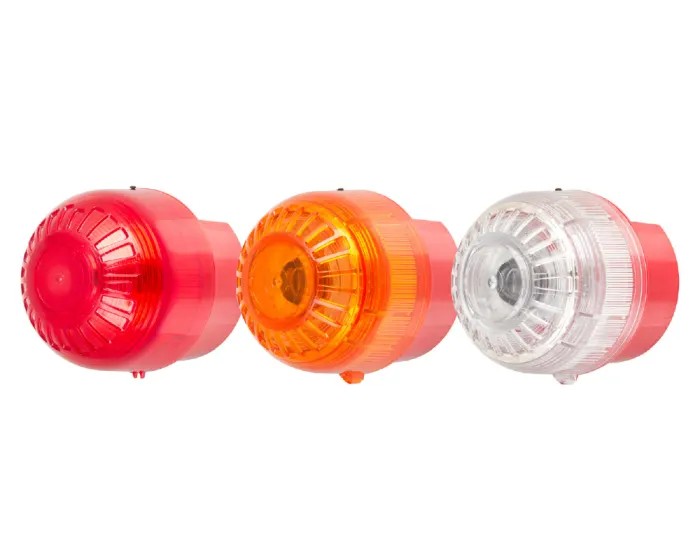

Klaxon TCC-0006 IS Sonos Series clear Sonos Beacon is a high-quality flashing LED beacon designed for wall mounting and powered by 24V DC. It features a flame retardant polycarbonate housing ensuring robustness and safety in demanding industrial and hazardous environments. The unit provides a flashing light effect to deliver clear visual signaling, with its LED bulb included in the package for convenience.

This beacon is engineered to operate efficiently with a current consumption of 33mA, and a compact design with a base diameter of 97.5mm and height of 105mm, allowing for easy and quick installation on walls. It can withstand extreme operating temperatures ranging between -40°C and 55°C, expanding its use case to various industrial sectors including mining, manufacturing, and automation signaling.

Offering ingress protection ratings IP66 and IP67, the beacon is resistant to dust penetration and temporary immersion in water, suitable for both indoor and outdoor use. The incorporated DIP switch enables toggling between a 1 Hz flashing signal or a constant on light, providing flexibility for different safety and signaling requirements.

The beacon is certified for use in potentially explosive atmospheres, meeting safety requirements for Group I Mining (Ex ia I Ma) and Group II Above Ground applications (Ex ia IIC T6 Ga, Ex ia IIIC T85°C Da) and coverage in hazardous Zones 0, 1, 2, 20, 21, and 22. This makes it ideal for industrial sites requiring certified signaling devices.

Clear LED flashing beacon for visual alarm signaling. Flame retardant polycarbonate housing ensures durability. Compact wall mount with 105mm height and 97.5mm base diameter. Wide temperature operating range from -40°C to 55°C.

33mA DC current consumption supports energy efficiency. DIP switch selectable flash rate or static light option. Certified for hazardous locations including mining and industrial zones. Ingress protection IP66 and IP67 for dust and water resistance.

Includes the LED lamp for ready-to-use installation.

This Klaxon IS Sonos Series beacon is suitable for industrial, manufacturing, mining, and automation environments where reliable and compliant visual signaling is critical. Its robust construction and certifications ensure safe operation in explosive atmospheres, while its flexible installation and operation options enhance usability.
