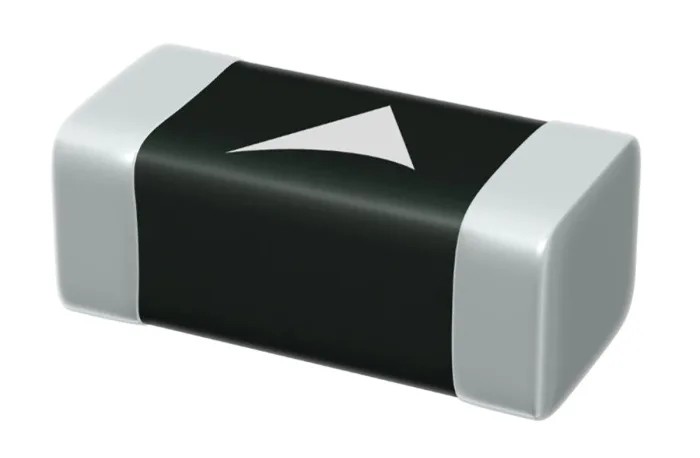

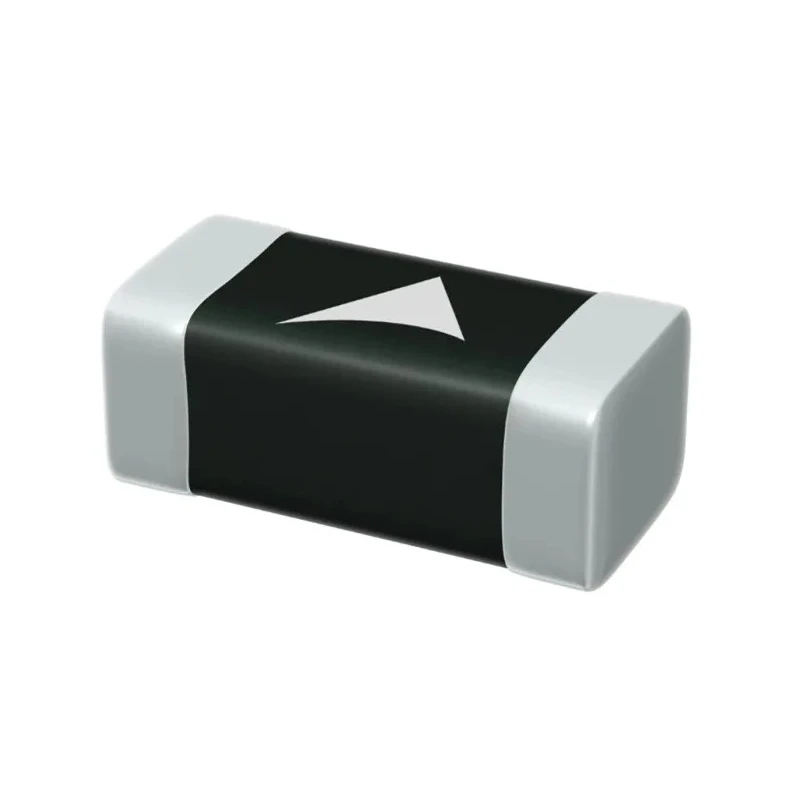

TDK Surface Mount NTC Thermistor 0402 Package 0.5 mm Height 1 mm Length 0.6 mm Depth B57230V2103F260

Free Delivery in India | Lowest Global Shipping Charges

TDK Surface Mount NTC Thermistor 0402 Package 0.5 mm Height 1 mm Length 0.6 mm Depth B57230V2103F260



Category Mounting Equipment Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	0.5mm
Length	1mm
Model	B57230V2103F260
Depth	0.6mm
Mount Type	Surface
Series	B57230V2
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC J-STD-020D, IEC 60068, IEC 60539-1
Package/Case	0402
Termination Style	Nickel Barrier
Maximum Power Rating	150mW
Temperature Coefficient Type	NTC
Thermal Time Constant	3s

Key Features

Features a compact 0402 package size with 0.5 mm height.
Offers a 1 mm length and 0.6 mm depth for flexible PCB integration.
Boasts a maximum power rating of 150 mW for robust operation.
Utilizes a nickel barrier termination to ensure durability and soldering reliability.
Operates effectively between -55°C to 125°C temperature range.
Includes a 3 seconds thermal time constant for responsive temperature sensing.
Complies with JEDEC J-STD-020D, IEC 60068, and IEC 60539-1 standards for quality assurance.
Non-automotive standard, suitable for general electronic applications.

Product Description

TDK B57230V2103F260 is a high-quality surface mount NTC thermistor in a 0402 package, designed for accurate temperature measurement and compensation in electronic circuits. Its compact dimensions of 0.5 mm height, 1 mm length, and 0.6 mm depth make it ideal for space-constrained PCB layouts in various industrial and commercial electronics.

Equipped with nickel barrier termination, this thermistor provides excellent long-term aging stability and superior resistance stability during soldering processes, ensuring reliable performance even in high-temperature environments.

With a maximum power rating of 150 mW and a thermal time constant of 3 seconds, this device responds promptly to temperature changes, supporting precise thermal management. It operates safely within a broad temperature range from -55°C to 125°C.

The product meets internationally recognized standards including JEDEC J-STD-020D, IEC 60068, and IEC 60539-1, reflecting its quality and reliability for electronics manufacturing.

Compact 0402 surface mount package for space-efficient design. Nickel barrier termination ensures durability and excellent soldering resistance. Stable resistance behavior under high-temperature conditions. Wide operating temperature range from -55°C to 125°C.

Maximum power rating of 150 mW suitable for moderate power applications. Thermal time constant of 3 seconds for responsive temperature sensing. Conforms to JEDEC and IEC standards for manufacturing quality.

This TDK thermistor is ideal for use in temperature measurement and compensation in industrial electronics manufacturing, consumer electronics, HVAC systems, and other applications requiring precise thermal control.
