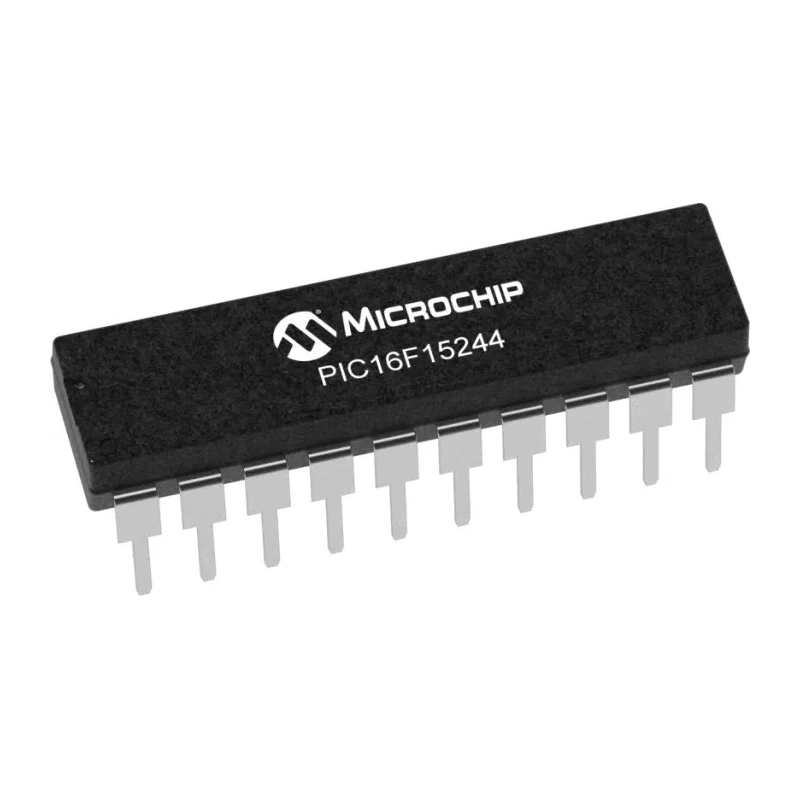

Microchip PIC16F15244-I/P 8-Bit PIC16 Microcontroller, 32 MHz Clock, 7kB FLASH Memory, 20-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 15.24mm |
| Model | PIC16F15244-I/P |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | SPI, I2C, EUSART, ICSP |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 17 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Equipped with a 32 MHz maximum clock frequency for efficient processing.
- Contains 7kB of Flash program memory for reliable code storage.
- Operates with a data bus width of 8 bits suitable for embedded applications.
- Supports 17 programmable input/output pins for versatile connectivity.
- Features 2kB RAM and a 5-bit DAC for analog control features.
- Designed with a low minimum operating voltage of 2.5V and a maximum of 5.5V.
- Built with a robust operating temperature range from -40°C up to 85°C for industrial environments.
- Complies with RoHS standards ensuring environmental safety.
Product Description
The Microchip PIC16F15244-I/P is a high-performance 8-bit PIC microcontroller designed for a variety of industrial, commercial, and embedded control applications. Featuring a fast 32 MHz clock speed and 7kB flash memory, this model supports efficient program execution and ample storage for medium-scale embedded systems.
This microcontroller integrates multiple essential features including a 5-bit DAC, 2kB RAM, and 17 programmable I/O pins, enabling fine-tuned control and adaptability across various use cases. Its diverse communication interfaces such as SPI, I2C, EUSART, and ICSP facilitate seamless integration with other digital components and devices.
Manufactured in a PDIP 20-pin package with compact dimensions (15.24mm length, 7.62mm width, 2mm height), the PIC16F15244-I/P is suitable for prototyping and embedded system design requiring through-hole mounting.
Its operating voltage range from 2.5V to 5.5V and robust operating temperature range (-40°C to +85°C) make it dependable for harsh environments typical in industrial and automotive electronics.
The device conforms to RoHS directives ensuring reduced environmental impact and compliance with international safety standards. Equipped with a maximum 32 MHz clock frequency for high-speed operation. Offers 7kB of FLASH program memory with RISC architecture for efficient code execution.
Includes 2kB RAM and 5-bit DAC for advanced signal processing. Provides a rich peripheral set: SPI, I2C, EUSART interfaces, and 2 timers for precise timing functions. Features 17 programmable input/output pins supporting a wide array of application connectivity.
Operates at low power suitable for battery-driven and energy-conscious systems. Compact 20-pin PDIP form factor facilitates easy installation and prototyping. Certified RoHS compliant to meet environmental standards. Wide operating temperature range of -40°C to +85°C for reliable performance in industrial settings.
Perfect for embedded control in consumer electronics, automotive, and industrial automation systems. This microcontroller is ideal for engineers and developers requiring a versatile, low-power 8-bit solution with reliable peripheral features and communication interfaces.
Explore EnvMart's comprehensive selection of Microchip Microcontrollers to find compatible parts and development tools tailored for your embedded control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing.
This model features 7kB of FLASH program memory for reliable code storage.
It operates within a voltage range of 2.5V to 5.5V, making it suitable for various applications.
The microcontroller has dimensions of 15.24mm in length, 7.62mm in width, and 2mm in height.
This unit supports 17 programmable input/output pins for versatile connectivity.
It includes SPI, I2C, EUSART, and ICSP interfaces for seamless integration with other components.
The microcontroller operates within a temperature range from -40°C to +85°C, suitable for industrial environments.
This model is equipped with 2kB of RAM for data storage and processing.
It is manufactured in a 20-pin PDIP package, which facilitates through-hole mounting.
The microcontroller utilizes a RISC instruction set architecture for efficient code execution.
Yes, it complies with RoHS standards, ensuring reduced environmental impact.
