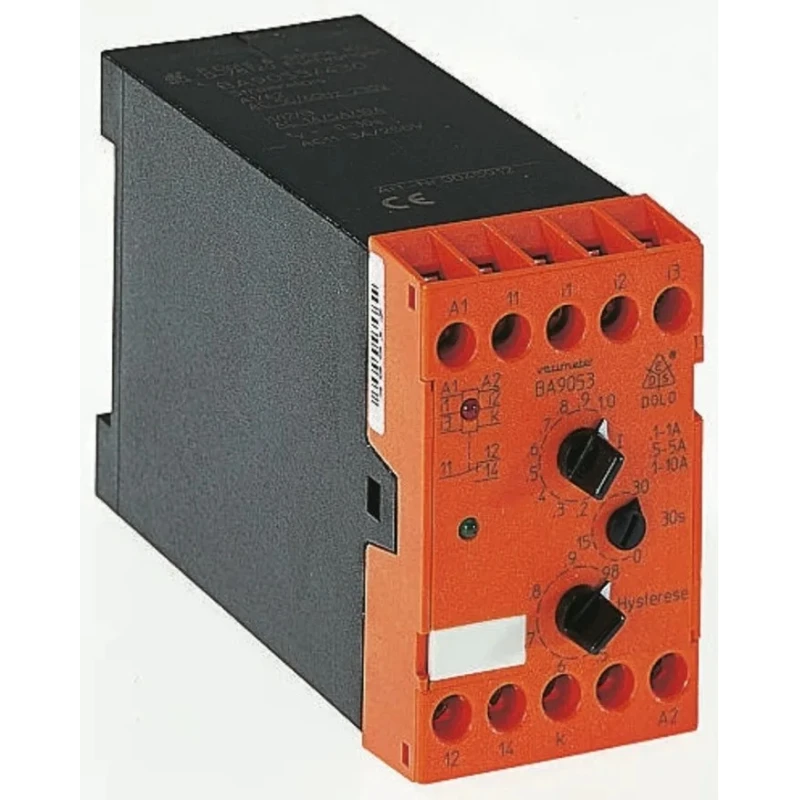

Dold Monitoring Relay, 1 Phase, DPDT Contact, DIN Rail Mount, 0.1A to 10A Current Range BA9053/410 AC1A/5A/10A AC230V 0-20S
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 75mm |
| Length | 120mm |
| Model | BA9053/410 AC1A/5A/10A AC230V 0-20S |
| IP Rating | IP20, IP40 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | BA 9053 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | DPDT |
| Time Delay | 0 to 20 s |
| Minimum Operating Temperature | +50°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | CCC, CE |
| Supply AC Voltage | 230V ac |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 10A |
| Relay Contact Current | 10A |
Key Features
- Monitors current from 0.1A up to 10A for both AC and DC applications.
- Equipped with DPDT contact configuration for versatile control options.
- DIN Rail mounting supports easy installation in electrical panels.
- Time delay adjustable from 0 to 20 seconds for precise system response.
- Compact dimensions of 120mm length, 75mm height, and 45mm width save space in installations.
- High overload capacity with permissible measurement frequency up to 400 Hz.
- LED indicators provide operational readiness and contact status information.
- Suitable for use as overcurrent or undercurrent relay as per IEC 255 and VDE 0345 standards.
Product Description
Dold BA9053/410 AC1A/5A/10A AC230V 0-20S monitoring relay is a precision single-phase current monitoring device featuring double-pole double-throw (DPDT) contacts and DIN rail mounting design. It is engineered to detect current ranges from 0.1A to 10A with an adjustable time delay of 0 to 20 seconds, suitable for both AC and DC systems. This relay is ideal for industrial and electrical automation applications requiring reliable current monitoring and protection.
The device operates as a static measurement relay with isolated measuring and auxiliary circuits. It includes three selectable measurement ranges: 0.1 to 1 A, 0.5 to 5 A, and 1 to 10 A, allowing flexibility for various operational requirements. The relay can function as both an overcurrent and undercurrent device, following IEC and VDE standards, and supports measurement frequencies up to 400 Hz with high overload capacity.
Its compact form factor, measuring 120mm in length, 75mm in height, and 45mm in width, facilitates efficient panel space utilization. The product is designed to withstand operating temperatures up to 50°C and carries IP20 and IP40 protection ratings. A screw terminal type ensures secure wiring connections. LED indicators clearly show operational readiness and the position of relay contacts, improving maintenance and troubleshooting.
Manufactured in Germany, this Monitoring Relay adheres to stringent quality standards including CCC and CE approvals, ensuring reliability and safety in demanding industrial environments. It is commonly applied in industrial equipment monitoring, electrical panels, automation systems, HVAC controls, and manufacturing process protection.
Monitors and protects electrical circuits by sensing current accurately. Adjustable time delay enhances protection customization for specific applications. Compact DIN rail form factor simplifies integration in control panels.
Robust construction suitable for industrial, manufacturing, and HVAC installations. Compliance with international standards guarantees operational safety and compliance. For a broad selection of industrial relays and monitoring devices, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can monitor current from 0.1A to 10A, suitable for both AC and DC applications.
The relay has a compact size of 120mm in length, 75mm in height, and 45mm in width.
It supports DIN rail mounting, which facilitates easy installation in electrical panels.
The time delay can be adjusted from 0 to 20 seconds, allowing for precise system response.
The maximum operating temperature is 50°C, ensuring reliable performance in various environments.
It features a double-pole double-throw (DPDT) contact configuration for versatile control options.
The relay has an IP20 and IP40 rating, providing protection against solid objects and moisture.
This monitoring relay operates on a single-phase electrical supply.
It complies with CCC and CE standards, ensuring reliability and safety in industrial applications.
It uses a screw terminal type for secure wiring connections.
The device supports a measurement frequency of up to 400 Hz, accommodating high-speed applications.
