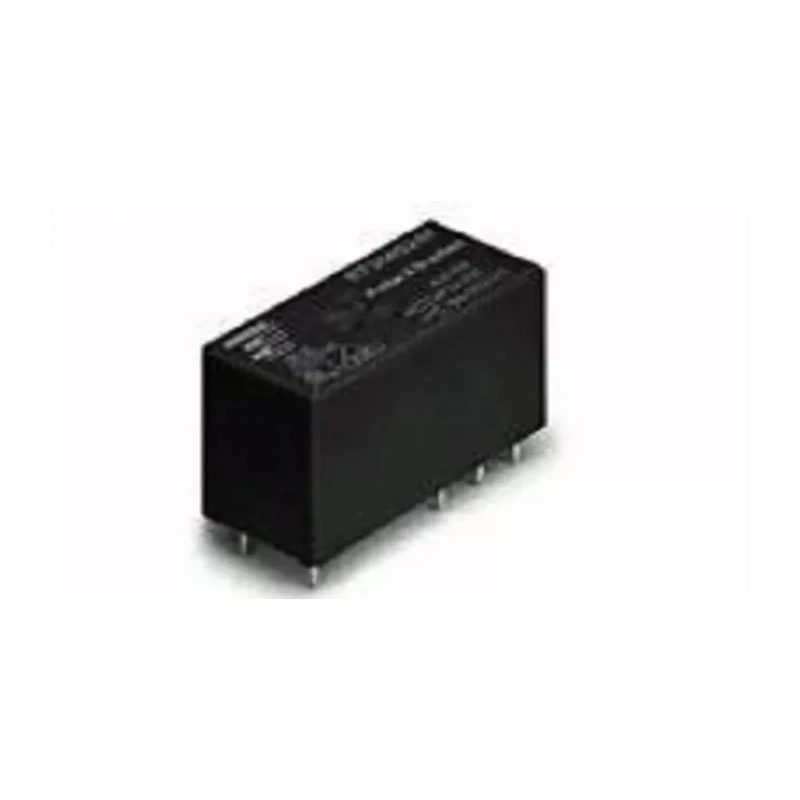

TE Connectivity PCB Monostable Relay, 5V DC Coil, 8A Switching Current, DPDT 4-1419108-0

TE Connectivity 4-1419108-0 PCB Monostable Relay is a precision power relay engineered for industrial and electronic applications requiring robust switching capabilities. It features a 5V DC coil voltage and boasts a high switching current capacity of 8A with a DPDT (Double Pole Double Throw) contact configuration, making it versatile for various circuit designs.

This relay is designed for PCB mounting with solder terminals, allowing easy integration into compact electronic assemblies. It is capable of switching DC voltages up to 30V and AC voltages up to 250V, suitable for a range of low to medium power applications.

Built to operate reliably in harsh environments, this relay functions efficiently over a wide temperature range from -40°C to 85°C. The coil resistance of 100Ω and coil power of 400mW ensure minimal power consumption while maintaining effective magnetic performance. The contact material is a silver alloy which delivers excellent conductivity and durability, while the contact resistance is low at 50mΩ, ensuring minimal voltage drops during switching.

Its compact form factor with precise dimensions (20mm length, 10mm width, 15mm height) allows for space-saving installations on PCBs. The relay adheres to RoHS and UL standards, certifying environmental safety and electrical reliability for industrial, laboratory, and manufacturing settings.

This relay is ideal for use in automation systems, signal conditioning, power control circuits, and other applications demanding dependable relay performance with a compact, standardized form factor.

Designed for PCB mounting with solder terminal types. Supports switching voltages of 30V DC and 250V AC. Operates reliably from -40°C up to 85°C. Coil resistance is 100 ohms with a coil power rating of 400 mW. Constructed with silver alloy contact material for high conductivity.

Compact size with dimensions of 20mm length, 10mm width, and 15mm height. Contact resistance maintained at a low 50 milliohms to ensure efficient switching. Conforms to RoHS and UL standards for safety and environmental compliance.
