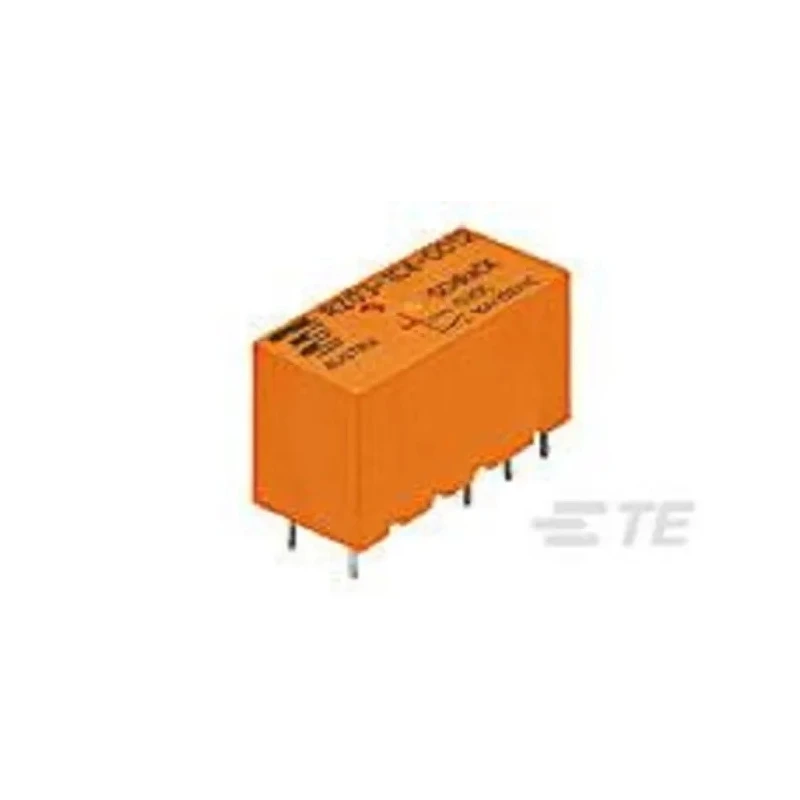

TE Connectivity PCB Monostable Relay 12V dc Coil 16A Switching Current SPST 4-1415899-9

TE Connectivity 4-1415899-9 PCB Monostable Relay is engineered for electronic control circuits requiring dependable switching of higher loads. With a coil voltage rating of 12V dc and the ability to handle switching currents up to 16A, this relay is ideal for use in industrial automation, electrical control panels, and signal conditioning applications.

This relay features a single-pole single-throw (SPST) contact configuration that simplifies circuit design and integration. The relay is designed for PCB mounting with solder terminals, providing reliable and easy installation on printed circuit boards.

Operating reliably across a wide temperature range from -40°C to 85°C, the relay suits various environment conditions typically encountered in industrial or commercial equipment. It supports switching voltages of up to 30V dc and 250V ac, enabling it to interface with a broad array of applications.

The compact form factor with dimensions of 20mm length, 15mm height, and 10mm width allows space-conscious design implementations. The coil resistance is rated at 100Ω with a coil power consumption of 400mW, ensuring low power usage and efficient electromagnetic actuation.

Contacts are constructed from silver alloy material, providing excellent conductivity and durability, with a contact resistance of 50mΩ for minimal signal loss. This relay complies with UL safety standards and RoHS environmental directives, ensuring safe and eco-friendly operation.

Manufactured in Austria, the TE Connectivity monostable relay offers reliable performance, durability, and quality assurance. It is well suited for use in industrial automation, laboratory equipment, and commercial electrical systems requiring compact PCB-mounted power relays.

Utilizes a single-pole single-throw (SPST) contact configuration for straightforward control. Designed for PCB mounting with solder terminal type for secure connections. Operates from -40°C to 85°C for versatile environmental conditions.

Switching capability of 16A current at up to 30V dc and 250V ac voltage. Compact dimensions: 20mm length, 15mm height, and 10mm width. Coil resistance of 100Ω and coil power consumption at 400mW. Silver alloy contacts with low contact resistance of 50mΩ.

Meets UL and RoHS standards for safety and environmental compliance. Manufactured in Austria ensuring high-quality standards. Explore more TE Connectivity power Relays and related products in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
