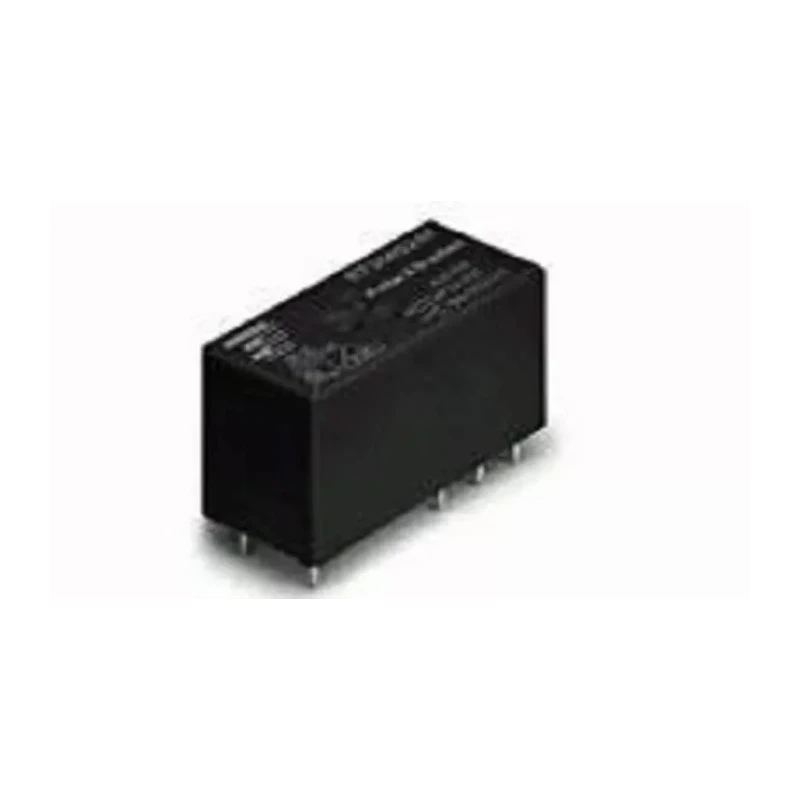

TE Connectivity PCB Monostable Relay, 12V DC Coil, 12A Switching Current, SPDT, Silver Alloy Contact 2-1419108-5
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type.
- Suitable for switching DC voltage up to 30V and AC voltage up to 250V.
- Operates reliably within a temperature range from -40°C to 85°C.
- Constructed with silver alloy contacts to ensure low contact resistance and high conductivity.
- Compact dimensions of 20mm length, 15mm height, and 10mm width optimize PCB space usage.
- Coil resistance is 100Ω with 400mW coil power consumption for efficient operation.
- Meets RoHS and UL standards indicating quality and safety compliance.
- Lightweight design weighing approximately 14 grams for easy integration.
Product Description
TE Connectivity 2-1419108-5 PCB Monostable Relay is a high-quality power relay designed for industrial and automation applications requiring reliable switching capabilities. It features a 12V DC coil and a 12A switching current with a Single Pole Double Throw (SPDT) contact configuration, suitable for various control and signal applications in electronics and electrical systems.
This relay is intended for PCB mounting with solder terminals to ensure a secure electrical connection. It operates effectively within a wide temperature range from -40°C to 85°C, making it suitable for demanding environments in industrial, manufacturing, and HVAC control systems.
The compact form factor with dimensions of 20mm length, 15mm height, and 10mm width allows easy integration into space-constrained PCB layouts. The coil resistance of 100Ω and coil power consumption of 400mW enable efficient control coil operation with low power usage.
Silver alloy contacts provide excellent conductivity and low contact resistance of 50mΩ, enhancing reliable switching performance for both DC and AC voltages up to 30V DC and 250V AC respectively. This ensures the relay can handle a variety of electrical loads with durability and safety compliance to RoHS and UL standards.
Designed for PCB mounting with solder terminal type. Coil voltage of 12V DC and coil resistance of 100Ω. Switching current rating of 12A supports medium load switching applications. Temperature range suitable for industrial environments (-40°C to 85°C).
Meets industry safety standards RoHS and UL. Compact dimensions allow for efficient PCB space utilization. Silver alloy contacts reduce electrical contact resistance to 50mΩ. Lightweight design at 14 grams facilitates PCB handling and mounting.
This relay is ideal for use in industrial automation systems, control panels, HVAC controls, manufacturing equipment, and other electrical and electronic control applications. Its specifications and materials cater to high reliability and long service life under continuous switching operations.
Discover a broad range of high-quality relays and electrical components like this at EnvMart, your destination for industrial-grade electronics solutions.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 12V DC.
This model can handle a maximum switching current of 12A.
The dimensions of this relay are 20mm in length, 15mm in height, and 10mm in width.
It can operate reliably within a temperature range from -40°C to 85°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The contact resistance of this relay is 50mΩ.
This relay is designed for PCB mounting with solder terminals.
The coil resistance is 100Ω with a coil power consumption of 400mW.
It can switch DC voltage up to 30V and AC voltage up to 250V.
The contacts are constructed from silver alloy to ensure low contact resistance and high conductivity.
This relay meets RoHS and UL standards, indicating quality and safety compliance.
The country of origin for this relay is Austria.
