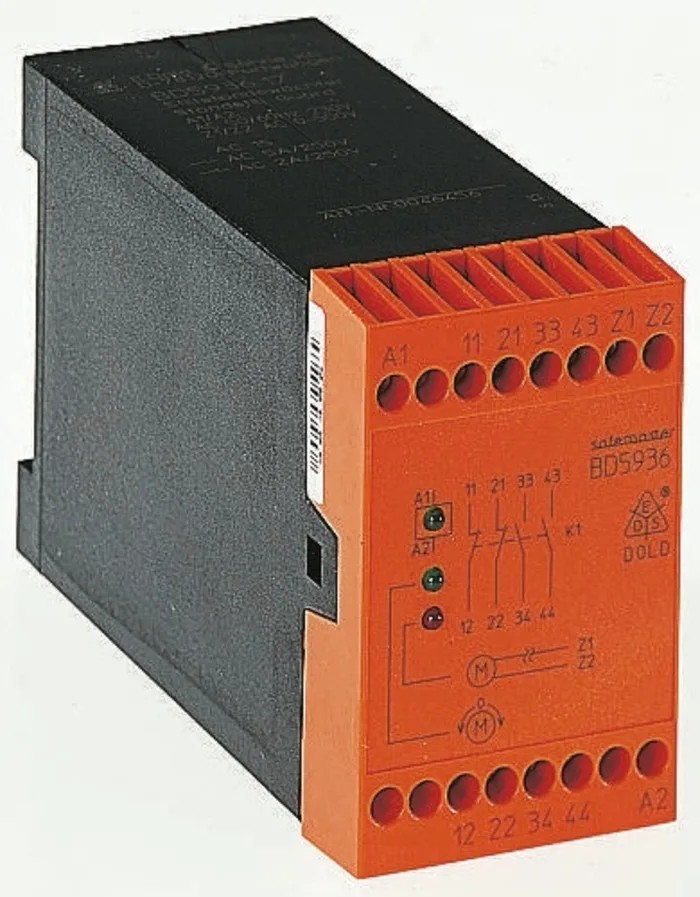

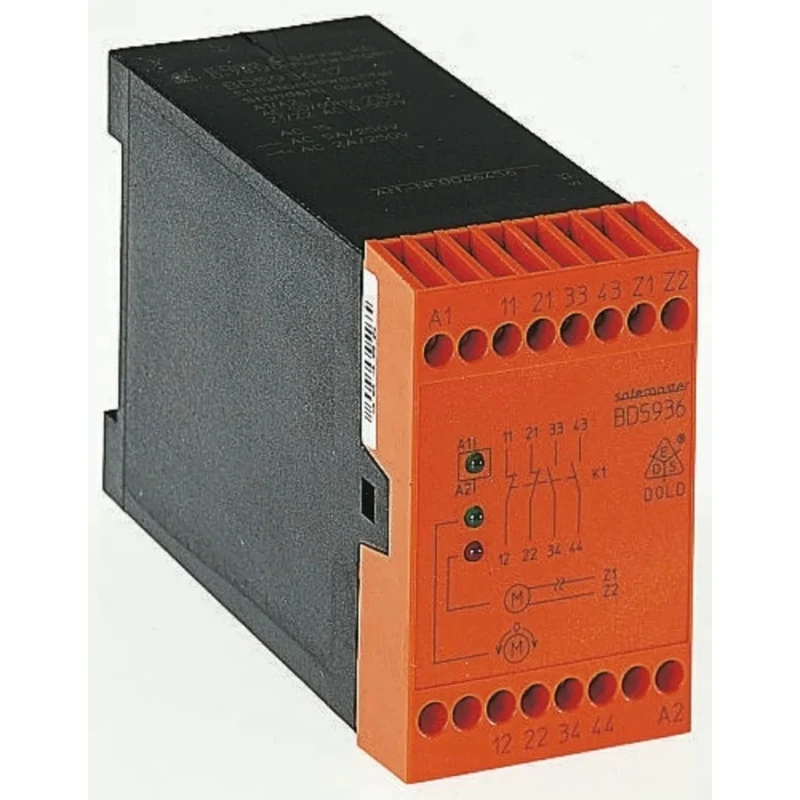

Dold Monitoring Relay 1, 3 Phase DPDT DIN Rail Mount 24 V dc 230V ac BD5936.17 AC50/60Hz 230V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 74mm |
| Length | 121mm |
| Model | BD5936.17 AC50/60Hz 230V |
| IP Rating | IP40, IP20 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | BD 5936 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | +55°C |
| Terminal type | Plus-Minus Terminal Screws |
| Standards/Approvals | IEC/EN 60255-1, IEC/EN 60255-26, CE, CCC |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 230V ac |
| Positively driven output contacts | 2 NO, 2 NC for 250 Vac |
| Dold BH 5932 Safety Relay, 3 Safety ContactsBrand | Dold |
Key Features
- Suitable for monitoring single-phase and three-phase asynchronous motors.
- Features 2 normally open (NO) and 2 normally closed (NC) contacts for 250 Vac operation.
- Compact DIN Rail mount design with dimensions 121mm length, 74mm height, 45mm width.
- Operates at supply voltages of 24 V dc and 230 V ac.
- Includes LED indicators for motor standstill, wire breakage detection, and operating voltage.
- Operates within a temperature range of -55°C to +55°C.
- Complies with IEC/EN 60255-1, IEC/EN 60255-26 standards, CE and CCC certifications.
- IP Ratings of IP40 and IP20 provide protection suitable for industrial environments.
Product Description
Dold BD5936.17 AC50/60Hz 230V Monitoring Relay is an advanced device designed for reliable standstill monitoring of single-phase and three-phase asynchronous motors in industrial and automation applications. Featuring dual voltage operation at 24 V dc and 230 V ac, this monitoring relay utilizes positively driven output contacts configured as DPDT for robust control tasks.

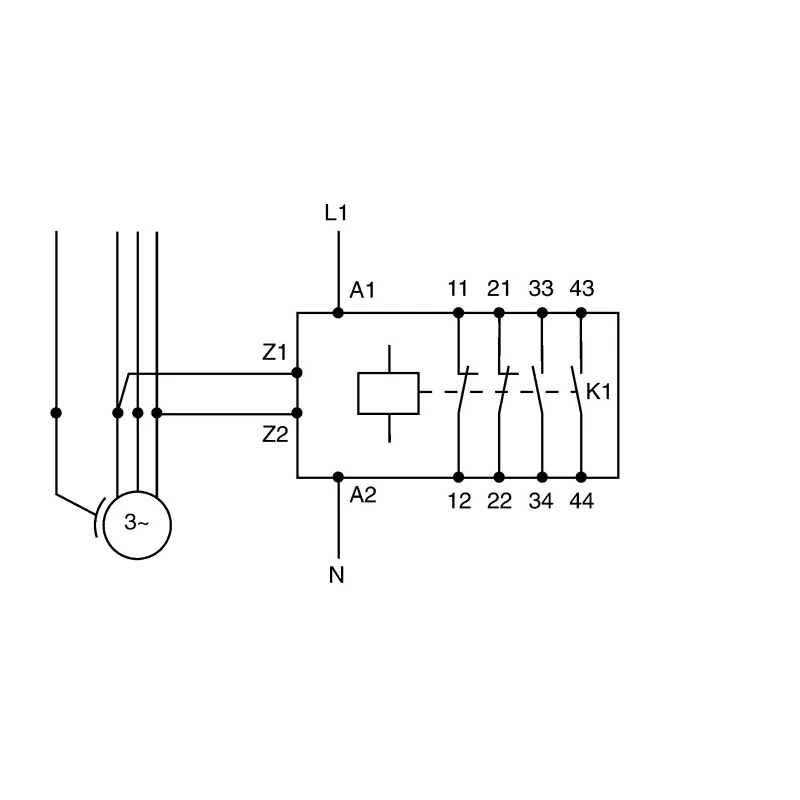

The device detects the induced voltage in the stator winding without the need for external initiators, providing precise standstill recognition ideal for applications such as safety door lock releases on machine tools or activation of parking brakes.

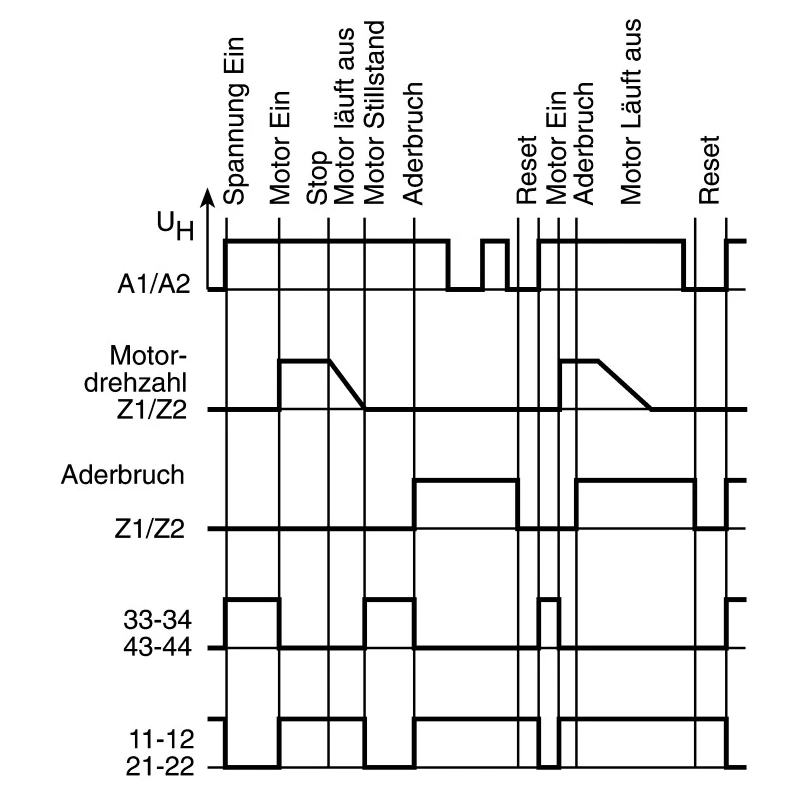

Included LED displays clearly indicate motor standstill status, wire breakage in the measurement circuit, and the presence of operating voltage, enhancing operational safety and maintenance diagnostics.
Compact dimensions of 121mm length, 74mm height, and 45mm width allow efficient DIN Rail mounting in control panels where space optimization is critical.
Operating temperature range from -55°C to +55°C and IP40/IP20 protection ratings ensure reliable performance in varying industrial conditions. The relay meets internationally recognized standards IEC/EN 60255-1 and IEC/EN 60255-26, and holds CE and CCC certifications reflecting high quality and safety compliance.
The BD5936.17 model includes 2 normally open (NO) and 2 normally closed (NC) output contacts rated for 250 Vac, permitting flexible integration with motor control circuits. This product is manufactured in Germany, affirming precision engineering craftsmanship and quality control.
Suitable for asynchronous motor standstill detection in industrial automation. DPDT contact configuration for versatile control integration. Dual DC and AC voltage supply supports various control system requirements. Compact design fits standard DIN Rail cutouts of 45 x 45 mm.
Reliable wire breakage detection ensures circuit integrity. LED indicators for operational transparency and fault detection. Compliance with major international electrical standards.
Explore related Monitoring Relay solutions from Dold and browse the full range of high quality relays and signal conditioning components available in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, which includes 2 normally open (NO) and 2 normally closed (NC) contacts rated for 250 Vac.
It operates at dual supply voltages of 24 V dc and 230 V ac, making it versatile for various control systems.
The relay functions effectively within an operating temperature range of -55°C to +55°C.
The compact design measures 121mm in length, 74mm in height, and 45mm in width, suitable for DIN Rail mounting.
It complies with IEC/EN 60255-1, IEC/EN 60255-26 standards and holds CE and CCC certifications.
This model is designed for DIN Rail mounting, which is common in control panel applications.
It includes LED indicators for motor standstill status, wire breakage detection, and the presence of operating voltage, which improve operational safety and maintenance diagnostics.
The relay has IP40 and IP20 ratings, providing protection suitable for industrial environments.
This monitoring relay is manufactured in Germany, reflecting high standards of engineering and quality control.
It features plus-minus terminal screws for secure connections.
It is suitable for monitoring single-phase and three-phase asynchronous motors, particularly in industrial automation applications.
The maximum operating temperature for this monitoring relay is 55°C.
