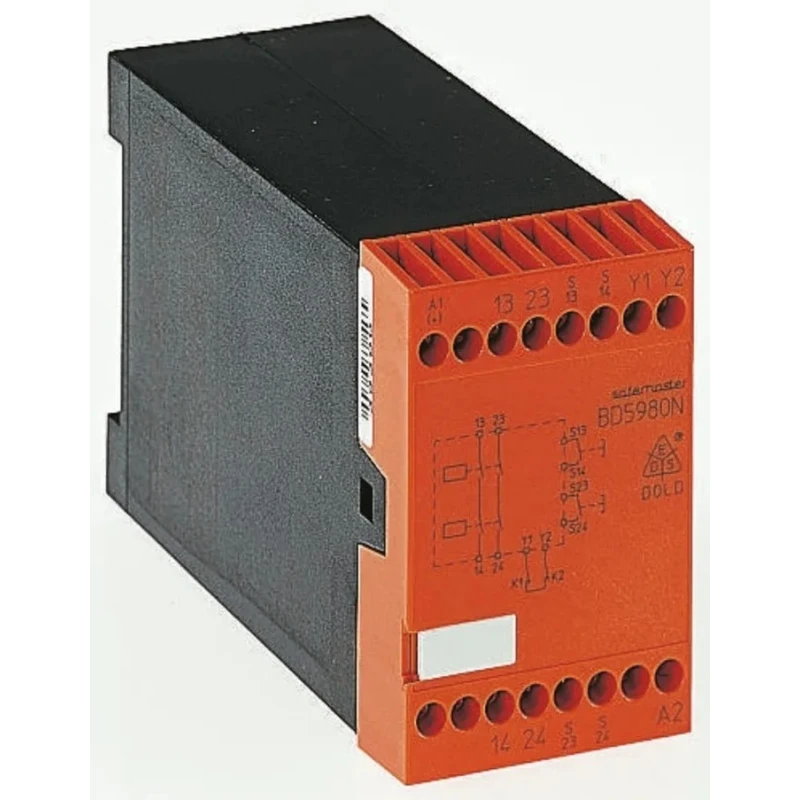

Dold Safety Relay Safety Interlock Switch, 24V DC, 2 Safety Contacts, 0.5 s Time Delay, DIN Rail Mount BD5980N.02 DC24V

Free Delivery in India | Lowest Global Shipping Charges

Dold Safety Relay Safety Interlock Switch, 24V DC, 2 Safety Contacts, 0.5 s Time Delay, DIN Rail Mount BD5980N.02 DC24V

Name: Dold Safety Relay Safety Interlock Switch, 24V DC, 2 Safety Contacts, 0.5 s Time Delay, DIN Rail Mount BD5980N.02 DC24V
Brand: Dold
SKU: 297662
Price: 548.1 USD
Availability: InStock



Category Safety Relays Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	121mm
Length	74mm
Model	BD5980N.02 DC24V
IP Rating	IP20, IP40
Approvals	BG, SUVA, Arbejdstilsynet (Danish Working Environment Authority)
Width	45mm
Mount Type	DIN Rail
Series	BD 5980N
Maximum Operating Temperature	55°C
Contact Configuration	2 NC
Time Delay	0.5 s
Minimum Operating Temperature	-15°C
Safety Category	Cat 3
Terminal type	Screw
Standards/Approvals	UL Subjekt 94, EN 55 011, EN 574 (Type III-A), IEC/EN 61508 (SIL 1), EN 50 005, IEC/EN 60 068-2-6, IEC/EN 62061 (SIL CL 1), IEC/EN 62 061, cat. 1), IEC/EN 60 529, IEC/EN 60 068-1, IEC/EN 60 947-5-1, IEC 60 664-1, IEC/EN 60 715, EN ISO 13849-1 (PL c
Coil Voltage	24V dc
Switching AC Voltage	250V ac
Safety Contacts	2
Dold BD 5980N, 230V ac Safety Relay, 2 Safety ContactsBrand	Dold

Key Features

Equipped with 2 Normally Closed (NC) safety contacts for reliable safety control.
Designed for DIN rail mounting to suit standard industrial installations.
Supports coil voltage of 24V DC for consistent performance.
Complies with multiple international standards including IEC/EN 61508 SIL 1 and EN ISO 13849-1 (PL c).
Operating temperature range from -15°C to 55°C for versatile industrial environments.
Compact dimensions with a width of 45 mm, height 121 mm, and length 74 mm.
Provides an IP rating of IP20 and IP40 for dust and splash protection.
Features feedback loop for external contactor monitoring and safety category Cat 3.

Product Description

The Dold BD5980N.02 DC24V Safety Relay Safety Interlock Switch is a two-hand safety relay designed primarily for industrial safety control applications. Featuring 2 Normally Closed (NC) safety contacts and a 0.5-second time delay, it ensures precise and reliable operation in hazardous machine control circuits, such as metal working presses and processing machines with moving parts that require strict safety interlocking.

Designed for standard DIN rail mounting, this safety relay measures 74 mm in length, 45 mm in width, and 121 mm in height, allowing for compact integration within industrial control panels. Its coil voltage is 24V DC, suitable for a wide range of control circuits and automation systems.

The product is compliant with multiple standardized safety certifications, including IEC/EN 61508 SIL 1, EN ISO 13849-1 Performance Level c (PL c), EN 574 Type III-A, and other relevant standards for safety interlock systems. It carries approvals from BG, SUVA, and the Danish Working Environment Authority (Arbejdstilsynet), emphasizing its reliability and conformity to stringent safety regulations.

The relay is rated for an operating temperature range from -15°C to 55°C and offers protection levels IP20 and IP40 against dust and mechanical hazards, making it suitable for various industrial and manufacturing environments. An integrated feedback loop allows monitoring of external contactors, enhancing safety during machine operation.

With safety category Cat 3 classification and a switching AC voltage of 250V AC, this relay is well-suited for safety interlock applications requiring high integrity and dependable switching. The device does not carry hazardous area certification, indicating it is designed for standard industrial environments.

Manufactured in Germany, the Dold BD5980N.02 DC24V Safety Relay offers robust build quality and long-term operational durability in demanding industrial, manufacturing, and automation settings.

Industrial applications include machine tool safety interlocks, metal press controls, hazardous process equipment safety circuits, and general machinery safety systems. Set contains 1 Safety Relay with 2 Safety Contacts rated for 24V DC coil voltage and 0.5-second time delay.
