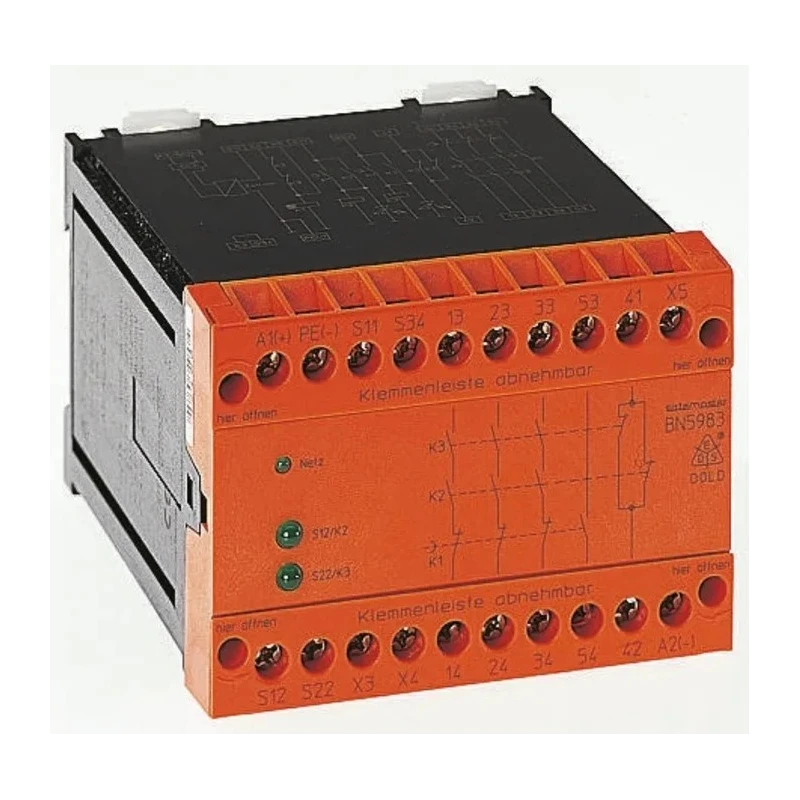

Dold Safety Relay Safety Interlock Switch 3 Safety Contacts 1 Auxiliary Contact DIN Rail Mount BN5983.53 AC50/60Hz 230V

Dold BN5983.53 AC50/60Hz 230V Safety Relay is a robust safety interlock switch designed to protect personnel and machines by monitoring emergency stops and safety doors in industrial, manufacturing, and automation applications.

This relay features 3 normally open safety contacts and 1 normally closed auxiliary contact rated for AC 380 V operation, providing redundant channels in a 1 or 2-channel configuration.

The monitored reset method guarantees safe and deliberate restart after a safety event. Flat terminal connections facilitate secure wiring, and installation is simplified via DIN rail mounting compatible with standard industrial panels.

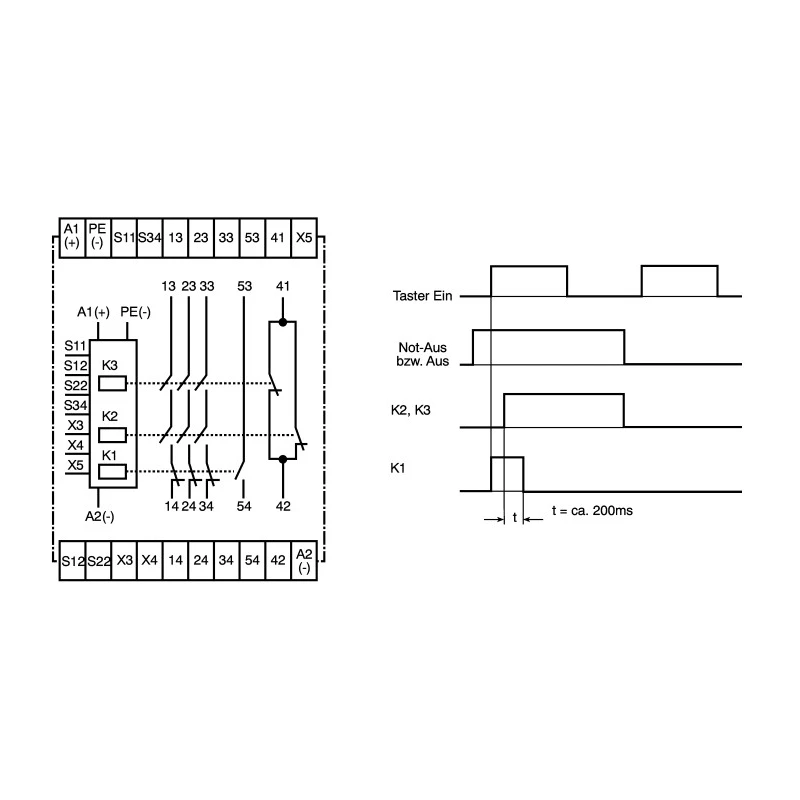

With a time delay of 200 ms, the relay's switching operation is reliable and designed to avoid false triggering in complex safety circuits. Its protection level conforms to IP40 and IP20 ratings, ensuring safeguarding against dust ingress and electrical hazards, suitable for standard industrial environments.

Operating temperature spans from -15°C to a maximum of 55°C, allowing use in typical factory conditions.

The product complies with a wide array of international safety standards including IEC/EN 61508, IEC/EN 60204-1, EN ISO 13849-1, and SIL 3 safety integrity level certification to meet critical safety requirements.

LED indicators enable users to monitor the status of channels 1 and 2, enhancing diagnostic capability on-site. Dimensions are compact at 121 mm height, 74 mm length, and 100 mm width, enabling integration within limited space control cabinets.

Made in Germany, this high-quality safety relay ensures adherence to stringent manufacturing standards and provides reliable protection in hazardous applications. The relay includes 3 safety contacts and 1 auxiliary contact.

Monitored reset method enhances safety during operations. Designed for DIN rail mounting with secure flat terminals. 200 ms time delay to ensure controlled switching. Operates reliably within -15°C to 55°C temperature range.

IP40 and IP20 ratings provide environmental protection. Complies with IEC/EN safety standards and SIL 3 certification. Equipped with LED indicators for channel monitoring. Compact size ensures easy panel integration. Manufactured in Germany for quality assurance.

Ideal for industrial machine protection, manufacturing safety systems, automation scheme integration, and electrical control panels requiring compliance with international safety standards. Explore the Electronics & Electricals category at EnvMart for more Safety Relay solutions and components.
