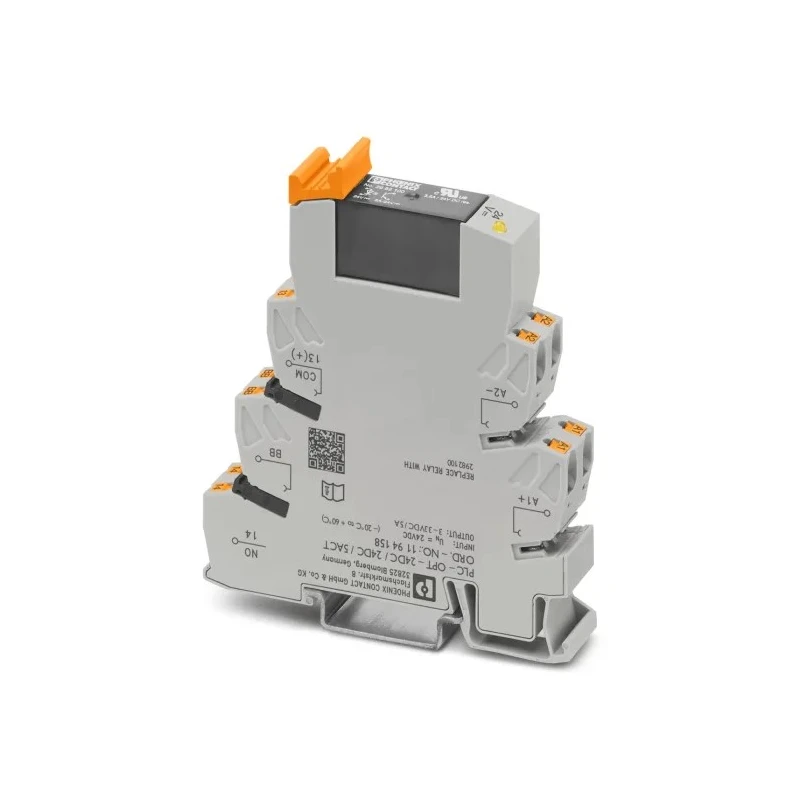

Phoenix Contact Solid State Relay PLC Series 24V DC Coil Voltage 5A Switching Current SPST Contact Configuration DIN 1194158

Phoenix Contact 1194158 Solid State Relay PLC Series is a robust and compact DIN rail mount module designed for PLC output interfacing in industrial automation. With a coil voltage of 24V DC and a switching current rating of 5A, this relay efficiently couples control logic with actuators such as motors, contactors, and valves.

The device features a single-pole, single-throw (SPST) contact configuration and utilizes push-in terminal technology to ensure fast and secure connections without the need for additional tools. The non-latching coil type operates at a coil current of 38mA, providing reliable switching performance.

Engineered for durability, the relay employs silver alloy contact materials that are resistant to wear and deliver consistent conductivity. It supports switching voltages up to 240V AC and 33V DC, making it suitable for a wide range of industrial loads. The operating temperature range from -20°C to 60°C ensures operability under diverse environmental conditions.

Measuring 50mm in length, 14mm in width, and 80mm in height, the relay fits standard NS 35/7.5 DIN rails, facilitating straightforward installation in control cabinets. Manufactured in Germany, it complies with international standards such as REACH, EN 50178, and ISA-S71.04 G3, ensuring quality and safety.

This relay is ideal for applications requiring solid-state power switching in programmable logic controller (PLC) based automation, enhancing system performance and longevity by reducing mechanical wear. Typical use cases include industrial manufacturing, HVAC control, and process automation.

The relay offers SPST contact configuration for single-pole, single-throw switching. Push-in terminal technology enables quick, secure wiring. Designed to operate reliably between -20°C and 60°C in industrial settings. Compact form factor suitable for DIN rail mounting in control panels.

Utilizes non-latching coil design with a 38mA coil current for stable operation. Silver alloy contacts ensure long-term durability and conductivity. Permits switching of loads at up to 240V AC and 33V DC voltages. Manufactured in Germany with compliance to international certifications.

Enhances PLC-controlled actuator interfacing for motors, valves, and contactors. Explore more products in Solid State Relays and related categories on EnvMart for industrial and automation solutions.
