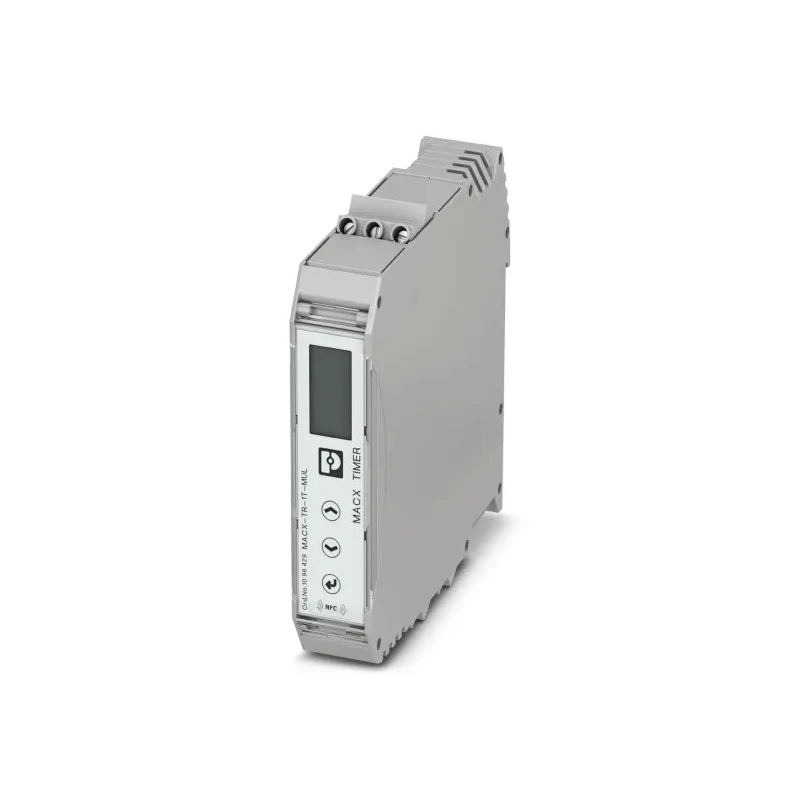

Phoenix Contact DIN Rail Timer Relay 2-Contact, 24 V DC/AC, 240 V AC, 0.01 to 59999 min Range, 13-Function, DPDT 1096429

The Phoenix Contact 1096429 is a multifunction DIN Rail Timer Relay designed for advanced industrial automation and electrical control applications. Featuring 13 selectable timer functions and an extensive adjustable timing range from 0.01 to 59999 minutes, it caters to precise timing control requirements.

This timer relay supports a dual 2-contact DPDT switch configuration and operates on a wide supply voltage range, including 24 V DC, 24 V AC, and 240 V AC, making it versatile for different system voltages. It offers a compact form factor measuring 22.5 mm in width, 109 mm in height, and 114 mm in depth, optimizing panel space on DIN rails.

Equipped with screw terminals, the relay ensures secure and reliable wiring connections. Password protection functionality safeguards against unauthorized setting changes. The relay supports dry contact inputs as well as PNP and NPN proximity switch inputs, enhancing integration flexibility.

Engineered to operate in ambient temperatures ranging from -25°C to 60°C and rated at IP20 for protection against solid objects, it meets IEC 60947-5-1 and IEC 61812-1 standards, ensuring compliance and reliability in demanding environments.

13 configurable timing functions for diverse automation tasks. Wide timing adjustment from 10 milliseconds to 999 hours 59 minutes. Dual DPDT contacts supporting multiple control scenarios. Compatible with 24 V AC/DC and 240 V AC power sources.

Robust mechanical design suitable for industrial DIN rail mounting. Secure screw terminal wiring for enduring electrical connections. Supports dry contact and proximity switch inputs (PNP/NPN). Password protection to prevent unauthorized parameter changes.

Compliant with IEC 60947-5-1, IEC 61812-1 international standards. Operating temperature range accommodates harsh environments.

This timer relay finds applications in industrial automation systems, electrical control panels, manufacturing equipment, HVAC systems, and other commercial and industrial settings requiring precise timing control. Its versatility and robust build enable reliable performance and long-term stability.
