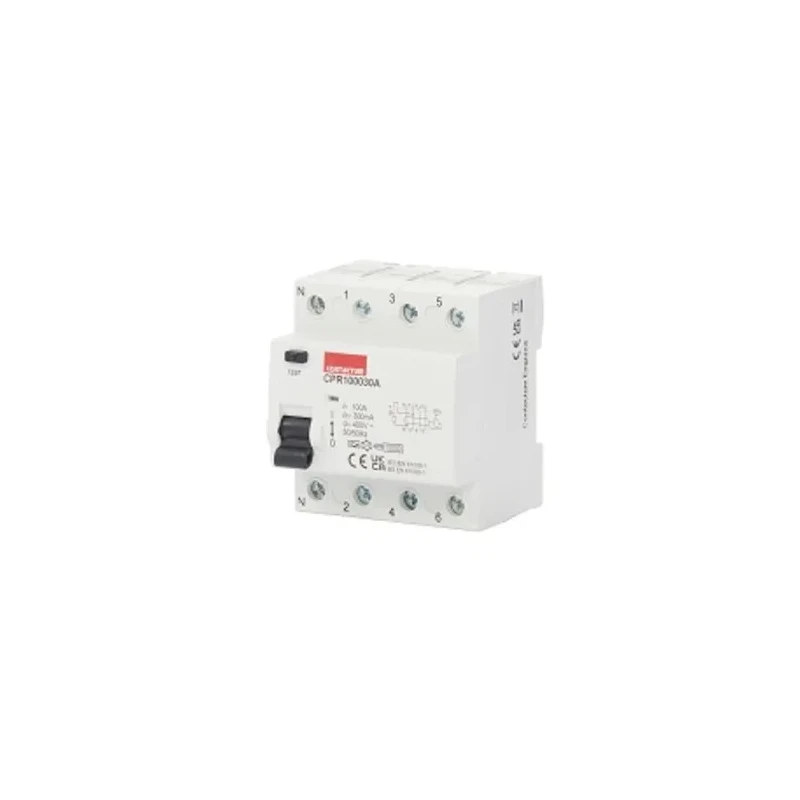

Contactum A Type Residual Current Circuit Breaker 100A, 4-Pole, 300 mA Trip Sensitivity, 415V AC CPR100030A
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CPR |
| Brand | Contactum |
| Height | 83mm |
| Model | CPR100030A |
| Depth | 70mm |
| Width | 71mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Terminal Capacity | 35mm |
| Series | A Type RCD |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Rated Voltage | 220-415V |
| Breaking Capacity | 100A |
| Wiring System | 4 pole |
| Number of Poles | 4 |
| Standards/Approvals | BS EN 61008 |
| Rated AC Voltage | 415V ac |
| Tripping Characteristics | Type A |
| Tripping Mechanism | Residual Current |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 300mA |
| ABC indicator | A |
| Associated standards | BS EN 61008 |
| Width in number of modular spacing's | 4 |
| Nature of supply | AC |
| Contactum CPR1000 RCCB, 100A, 4 Pole, 300mABrand | Contactum |
Key Features
- Equipped with a 300 mA trip sensitivity for enhanced fault detection.
- Type A tripping characteristic suitable for AC and pulsating DC residual currents.
- Durable DIN rail mountable design for easy installation.
- Rated for 220-415V AC voltage and operates at 50-60 Hz frequency.
- Incorporates a lever reset actuator for user-friendly operation.
- Operating ambient temperature range from -5 to 40°C ensuring consistent performance.
- Meets BS EN 61008 standard ensuring quality and safety compliance.
Product Description
Contactum CPR100030A is a high-performance A Type Residual Current Circuit Breaker designed for electrical safety in industrial, commercial, and residential applications. This 100A, 4-pole RCCB offers protection against earth leakage currents and reduces the risk of electrical shock or fire.
Operating at 415V AC voltage with a frequency range of 50-60Hz, this device features a trip sensitivity of 300 mA, making it suitable for detecting partial and pulsating DC residual currents. Mountable on a DIN rail, it facilitates straightforward installation in electrical distribution boards.
The compact design with dimensions 71mm (width) x 83mm (height) x 70mm (depth) supports efficient space utilization. Its lever-type reset actuator enables convenient manual control. The ambient operating temperature range of -5 to 40°C ensures reliability under a wide range of environmental conditions.
Constructed to comply with BS EN 61008 standards, the CPR100030A surpasses safety and performance benchmarks. Its rated breaking capacity of 100A and residual current tripping mechanism provide robust circuit protection in accordance with modern electrical code requirements.
Equipped with a 300 mA trip sensitivity for enhanced fault detection. Type A tripping characteristic suitable for AC and pulsating DC residual currents. Durable DIN rail mountable design for easy installation. Rated for 220-415V AC voltage and operates at 50-60 Hz frequency.
Compact dimensions: 71 mm width, 83 mm height, 70 mm depth for space-efficient mounting. Incorporates a lever reset actuator for user-friendly operation. Operating ambient temperature range from -5 to 40°C ensuring consistent performance.
Meets BS EN 61008 standard ensuring quality and safety compliance. This residual current circuit breaker is ideal for use in industrial, manufacturing, electrical, and automation systems requiring sensitive earth fault protection.
Explore more products in Residual Current Circuit Breakers and enhance your safety systems with Contactum solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The trip sensitivity of this model is 300 mA, designed for enhanced fault detection.
It is rated for a voltage range of 220-415V AC.
This unit features a 4-pole configuration.
The operating ambient temperature range is from -5 to 40°C.
The dimensions are 71 mm in width, 83 mm in height, and 70 mm in depth.
It is designed for DIN rail mounting, facilitating easy installation.
It meets the BS EN 61008 standard for quality and safety compliance.
The rated breaking capacity is 100A.
It features a Type A tripping characteristic suitable for AC and pulsating DC residual currents.
It incorporates a lever reset actuator for convenient manual control.
It operates at a frequency range of 50-60 Hz.
The terminal capacity is 35 mm.
