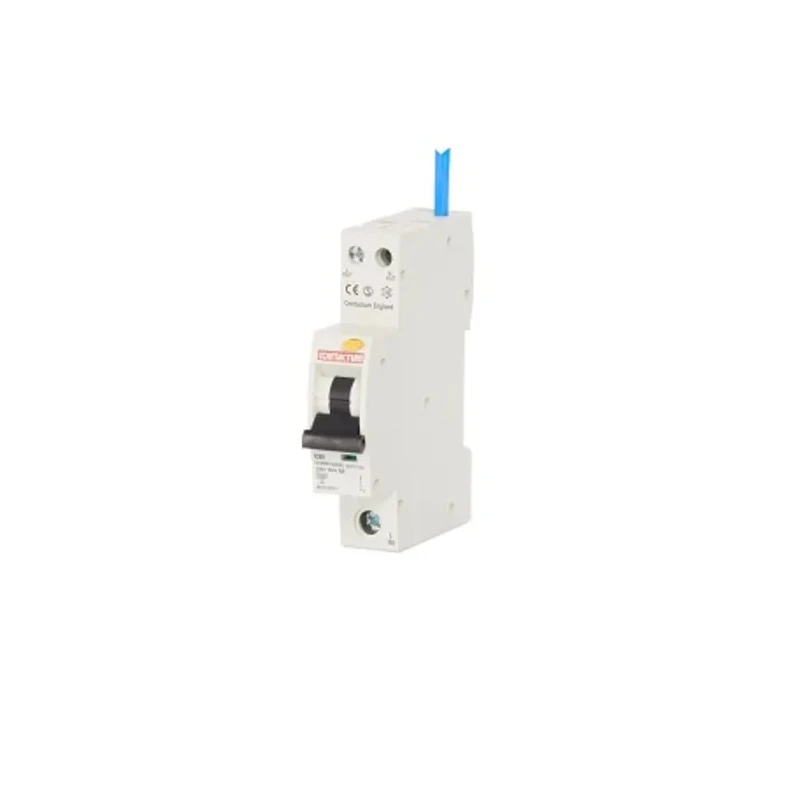

Contactum Residual Current Circuit Breaker with Overload Protection 20A 230V AC Type C 10kA DIN Rail CCPBR1020AC

Contactum CCPBR1020AC Residual Current Circuit Breaker with overload protection is a reliable electrical safety device designed for general-purpose applications. It features a 20A current rating, 230V AC operating voltage, and a 30mA trip sensitivity, ensuring protection against earth leakage and overload conditions.

This single-pole RCBO incorporates a thermal magnetic tripping mechanism with Type C characteristics, providing fast and accurate disconnection under fault conditions. Its compact design fits a single modular width (19mm) and is mounted on DIN rails, simplifying panel integration.

With a breaking capacity of 10kA, it is suitable for residential, commercial, and industrial electrical installations requiring dependable circuit protection and compliance with IEC, RoHS, and CE standards.

The device is equipped with a lever reset actuator, allowing easy manual reset after tripping events. Its ambient operating temperature range from -5 to 40°C provides operational flexibility in various environmental conditions.

The product includes earth leakage protection of Type A, an ABC indicator of type A, and a white-colored enclosure to maintain clear visibility and status indication. Rated for 230V AC voltage suitable for general electrical applications.

Single-pole design with DIN Rail mount for easy installation. Thermal Magnetic tripping mechanism with Type C characteristics. Breaking capacity of 10kA ensuring high reliability and safety. Equipped with a lever reset actuator for convenient operation.

Compact dimensions of 90mm height, 75mm depth, and 19mm width. Certified with IEC, RoHS, and CE standards for quality assurance. Operating ambient temperature range from -5 to 40°C for versatile environments. Earth leakage protection Type A with 30mA residual current trip sensitivity.

White color casing with ABC indicator type A for status signaling.

This Contactum RCBO is widely used in industrial, commercial, residential electrical panels, and automation applications to protect circuits from leakage current, overload, and short circuits. Its compact size, certified safety standards, and reliable operation make it a preferred choice for electrical distributors and professionals.
