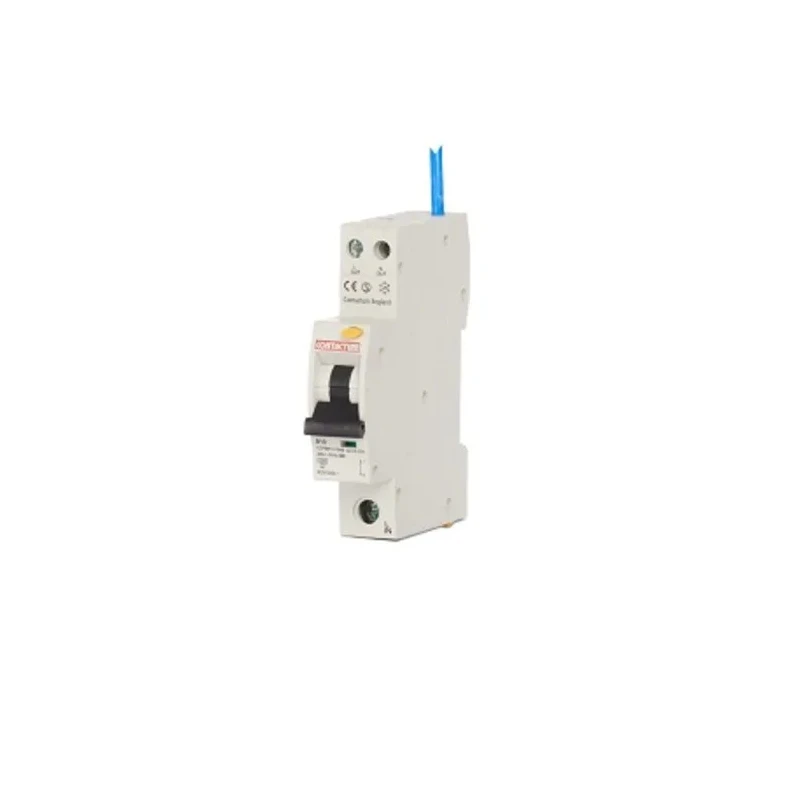

Contactum Residual Current Circuit Breaker with Overload Protection 10A Current Rating 1-Pole 30 mA Trip CCPBR1010AB
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR1010AB |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 10kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC, CE |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 10 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | B |
| Min. switch contact gap | 4mm |
| Contactum RCBO, 10A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type BBrand | Contactum |
Key Features
- Single pole design with thermal magnetic tripping mechanism.
- Mounts easily on DIN Rail for streamlined installation.
- Compact dimensions of 90mm height, 19mm width, and 75mm depth.
- Equipped with screw terminal type for secure wiring connections.
- Meets standards including RoHS, IEC, and CE for quality assurance.
- Operating temperature range from -5 to 40°C for versatile environments.
- Breaking capacity of 10kA provides robust overload protection.
- Lever type reset actuator for easy manual reset after tripping.
Product Description
Contactum CCPBR1010AB Residual Current Circuit Breaker with Overload Protection combines a 10A current rating and 30mA trip sensitivity in a single pole compact design. This RCBO is engineered for industrial, commercial, and residential electrical safety applications where protection against residual current and overload is critical.
It operates at a rated AC voltage of 230V with a frequency range of 50 - 60Hz. The breaker features a thermal magnetic tripping mechanism and a lever type reset actuator, ensuring reliable performance and user-friendly reset after faults.
The device is designed for DIN Rail mounting, facilitating easy integration into electrical distribution boards. Its compact dimensions - 90mm height, 19mm width, and 75mm depth - allow efficient use of panel space. Screw terminals provide secure and practical wiring connectivity.
Manufactured to meet recognized standards such as RoHS, IEC, and CE, this RCBO ensures compliance with international safety and quality benchmarks. It operates reliably within an ambient temperature range of -5 to 40°C, suitable for various operating environments.
With a breaking capacity of 10kA and Type B tripping characteristic, this circuit breaker provides robust protection against overload and earth leakage faults, enhancing safety in electrical installations.
Rated current: 10A, single pole configuration for compact protection. Trip sensitivity: 30 mA residual current for effective earth leakage detection. Mounting method: DIN Rail for standard electrical panel installation. Tripping characteristic: Type B suitable for general AC applications.
Terminal type: Screw for reliable electrical connections. Ambient operating temperature range: -5 to 40°C for versatility. Breaking capacity: 10kA to handle substantial fault currents safely. Manufactured in China with compliance to IEC and CE standards.
This Contactum RCBO is an essential component for ensuring electrical safety in industrial, residential, and commercial settings. Its reliable overload and residual current protection safeguards electrical systems and personnel from faults and hazards.
Explore more from the Contactum range at EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A, designed for effective protection in electrical systems.
It features a trip sensitivity of 30mA, which is effective for detecting earth leakage.
The breaking capacity is 10kA, allowing it to handle substantial fault currents safely.
The compact dimensions are 90mm in height, 19mm in width, and 75mm in depth, making it suitable for efficient panel space utilization.
It mounts easily on DIN Rail, facilitating straightforward installation in electrical distribution boards.
This model operates within an ambient temperature range of -5 to 40°C, suitable for various environments.
It utilizes a thermal magnetic tripping mechanism for reliable performance.
It is equipped with screw terminals, providing secure and practical wiring connections.
It meets standards including RoHS, IEC, and CE, ensuring compliance with international safety and quality benchmarks.
The rated AC voltage is 230V, suitable for standard electrical applications.
It is designed for industrial, commercial, and residential electrical safety applications where protection against residual current and overload is critical.
It features a lever type reset actuator, allowing for easy manual reset after tripping.
