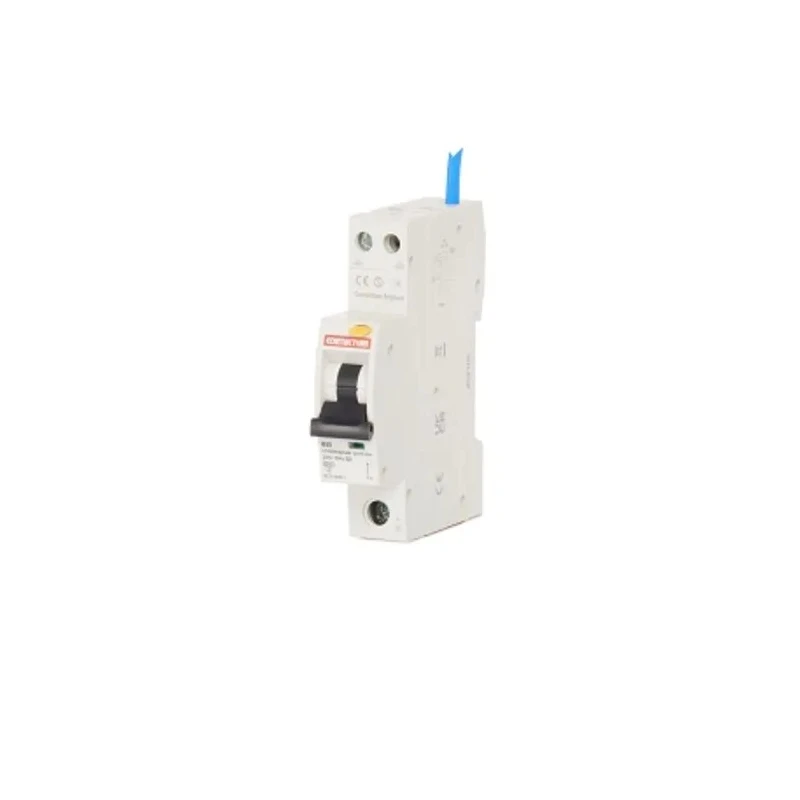

Contactum Residual Current Circuit Breaker with Overload Protection 20A, 1-Pole, 30mA Trip Sensitivity, Thermal CCPBR0620AB
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR0620AB |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 6kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | IEC, RoHS, CE |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 6 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | B |
Key Features
- Equipped with thermal magnetic tripping mechanism for reliable operation.
- DIN Rail mount type suitable for easy installation in electrical panels.
- Rated for 230V AC voltage with a breaking capacity of 6kA.
- Includes screw terminal type and lever reset actuator for convenient use.
- Compact design with height 90mm, depth 75mm, and width 19mm for space-efficient fitting.
- Meets IEC, RoHS, CE standards and BS EN 61009 for quality assurance.
- Suitable for general-purpose earth leakage protection with Type A protection type.
- Operating frequency range from 50 to 60 Hz with ambient temperature range from -5 to 40°C.
Product Description
Contactum CCPBR0620AB Residual Current Circuit Breaker with Overload Protection is a 20A rated device designed for reliable protection against earth leakage and overloads in electrical installations. Featuring a compact, single-pole configuration, it provides a trip sensitivity of 30mA, making it suitable for residential, commercial, and industrial applications.
This RCBO offers a thermal magnetic tripping characteristic, ensuring quick response to overload and short circuit conditions. The device mounts easily on DIN rails, making it ideal for integration into standard distribution boards.
The breaker supports a rated AC voltage of 230V and has a breaking capacity of 6kA, meeting stringent IEC, RoHS, CE, and BS EN 61009 standards. With a screw terminal type and lever reset actuator, installation and maintenance are straightforward and safe.
The compact size (90mm height, 75mm depth, 19mm width) allows for efficient use of panel space. The device operates effectively within an ambient temperature range of -5 to 40°C, with frequency compatibility between 50 and 60 Hz. Its earth leakage protection is classified as Type A, enhancing safety against electrical faults.
Equipped with a thermal magnetic tripping mechanism for dependable protection. Compact single-pole design with DIN rail mounting for easy installation. Rated at 20A current and 230V AC voltage with a 6kA breaking capacity.
Screw terminals and lever reset for user-friendly operation. Compliance with IEC, RoHS, CE, and BS EN 61009 standards ensure quality and safety. White color finish with ABC indicator of type A for status display. Designed for general-purpose electrical protection in various environments.
The Contactum CCPBR0620AB Residual Current Circuit Breaker is optimally suited for electrical, automation, and safety applications in industrial, commercial, and residential sectors. Its compact and robust design ensures long-term reliability and protection, contributing to safer electrical distribution systems.
Explore EnvMart’s comprehensive range of circuit breakers and related electrical protection devices to find the suitable products for your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, making it suitable for various electrical applications.
It features a trip sensitivity of 30mA, which provides effective earth leakage protection.
The breaking capacity of this unit is rated at 6kA, ensuring it can handle significant fault currents.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
The dimensions are 90mm in height, 75mm in depth, and 19mm in width, facilitating compact installation.
This model is rated for a voltage of 230V AC, suitable for standard electrical systems.
It operates effectively within an ambient temperature range of -5 to 40°C.
It utilizes a thermal magnetic tripping mechanism for reliable operation during overload and short circuit conditions.
This circuit breaker meets IEC, RoHS, CE standards, and is compliant with BS EN 61009 for quality assurance.
It provides Type A earth leakage protection, enhancing safety against electrical faults.
It features a lever reset actuator, making it user-friendly for operation and maintenance.
This unit supports a 1-pole wiring system, suitable for various electrical configurations.
