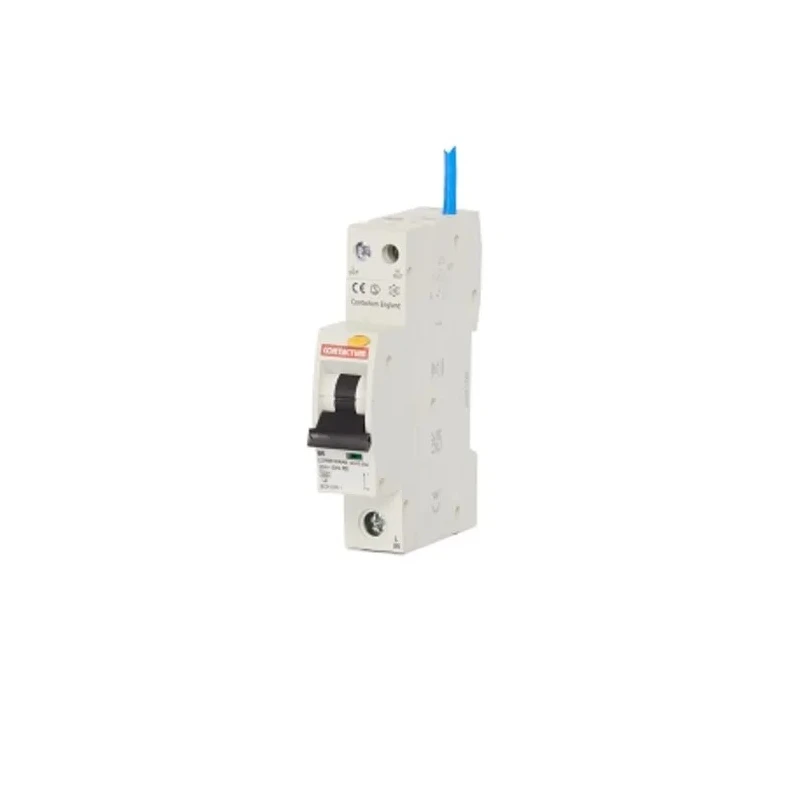

Contactum Residual Current Circuit Breaker with Overload Protection 6A Current Rating 1-Pole 30 mA Trip CCPBR1006AB

Contactum CCPBR1006AB Residual Current Circuit Breaker with Overload Protection is engineered to deliver dependable electrical safety with a 6A current rating and 30 mA trip sensitivity. This 1-pole device features a compact design suitable for DIN rail mounting, making it ideal for residential, industrial, and commercial electrical installations. It operates at a rated voltage of 230V AC and offers a breaking capacity of 10kA, ensuring high performance under fault conditions.

The breaker’s thermal magnetic tripping mechanism effectively responds to overload and short circuit events, providing reliable protection. The screw terminal connectors facilitate secure and straightforward wiring, while the lever reset actuator enables fast reinstatement after a trip. Its white housing contributes to a neat and professional appearance within electrical panels.

Designed to operate within an ambient temperature range of -5 to 40°C, this RCBO maintains consistent performance in varied environments. It conforms to stringent IEC, CE, and RoHS standards, reflecting compliance with international safety and environmental regulations. The device incorporates an ABC indicator labeled 'A' and a minimum switch contact gap of 4mm for enhanced safety and operational reliability.

Typical use cases include building electrical distribution boards, residential safety switches, and industrial equipment protection. The product’s compact footprint, measuring 19mm wide, 90mm high, and 75mm deep, saves space while providing robust protection. Furthermore, it supports a 50-60Hz frequency range, accommodating common electrical supply variations.

This Contactum RCBO provides earth leakage protection of Type A and employs a Type B trip characteristic, supporting AC and pulsating DC residual current detection for comprehensive safeguard.

Reliable overload protection with thermal magnetic tripping mechanism. Compact 1-pole construction for DIN rail mounting. Rated at 230V AC voltage and 6A current rating. Breaking capacity of 10kA for high fault tolerance.

30 mA trip sensitivity for earth leakage protection. Screw terminal for secure wiring connection. Operates from -5 to 40°C ambient temperature. Compliance with IEC, CE, and RoHS standards. White color casing with lever reset actuator.

General purpose electrical protection device. Explore additional residual current and circuit breaker products at EnvMart for comprehensive electrical protection solutions.
