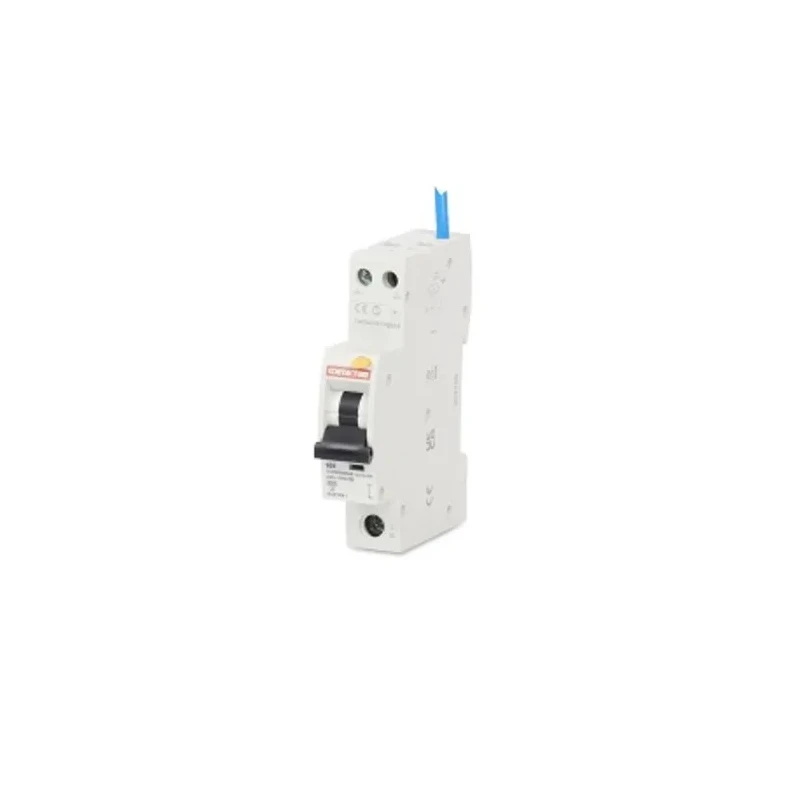

Contactum Residual Current Circuit Breaker with Overload Protection, 25A Current Rating, 230V AC, 6kA Breaking CCPBR0625AB

Contactum CCPBR0625AB Residual Current Circuit Breaker with Overload Protection is engineered to provide robust and precise electrical safety for residential, commercial, and industrial power distribution systems. Rated at 25A with a 230V AC voltage, it ensures circuit protection by interrupting fault currents efficiently up to a breaking capacity of 6kA.

This device features a 1-pole configuration with a 30mA trip sensitivity, ideal for detecting earth leakage currents and preventing electrical hazards. The thermal magnetic release characteristic Type B ensures reliable tripping performance for various load and fault conditions. The breaker utilizes screw terminals for secure and maintenance-friendly wiring and mounts easily on standard DIN rails, facilitating quick integration into electrical panels.

The compact physical dimensions of 90mm height, 75mm depth, and 19mm width allow for space-efficient panel layouts. Its operating temperature range of -5 to 40°C supports stable function in diverse environments. The earth leakage protection type A enhances safety by covering AC and pulsating DC leakage currents.

Manufactured according to international standards including RoHS, IEC, CE, and BS EN 61009, this residual current circuit breaker adheres to rigorous quality and safety criteria. The white-colored unit with ABC indicator 'A' adds a visual confirmation of the product class. Operating frequency spans 50-60Hz typical in many power systems.

Designed for high safety in electrical distribution with overload and residual current protection. Compact and modular for versatile panel mounting on DIN rails. Thermal magnetic trip mechanism offers efficient fault response.

Built for general-purpose applications compatible with 220-250V supply ranges. Compliant with stringent RoHS, IEC, CE standards ensuring quality assurance. Facilitates easy wiring with screw terminals and lever reset actuator type.

Suitable for ambient operating temperature from -5°C to 40°C without performance degradation. Effective earth leakage detection with 30mA trip sensitivity and Type A protection. Reliable mechanical and electrical characteristics suitable for frequent switching operations.

Constructed to international quality norms with robust breaking capacity of 6kA.

This circuit breaker is applicable in industrial, commercial, and residential electrical installations requiring reliable earth fault and overload protection. It is an essential safety component for electrical panels, ensuring personnel and equipment protection from electric shock and fire risks.

Explore further products in the Residual Current Circuit Breaker category for advanced electrical protection solutions suited to multiple industrial and commercial needs on EnvMart.
