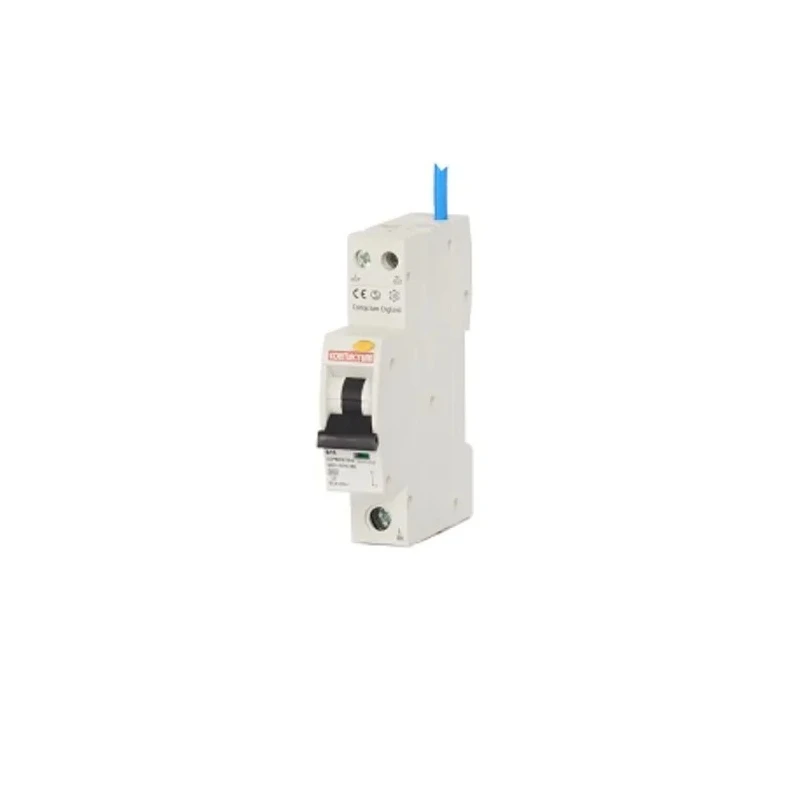

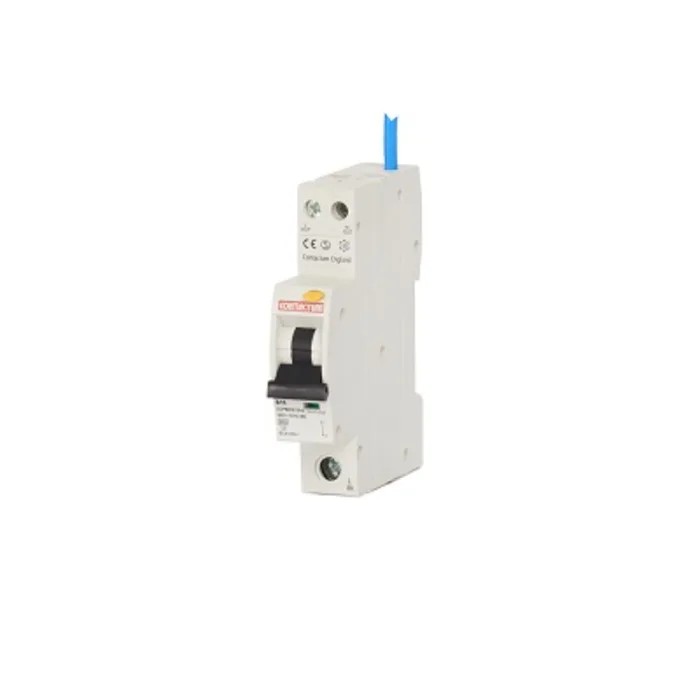

Contactum Residual Current Circuit Breaker with Overload Protection 16A Current Rating 1-Pole 30mA Trip CCPBR0616AB

Contactum CCPBR0616AB Residual Current Circuit Breaker with Overload Protection is designed for industrial, commercial, and residential electrical safety applications. With a 16A current rating and 1-pole configuration, it offers reliable earth leakage protection with a trip sensitivity of 30mA, classified as Type B tripping characteristic suitable for AC and pulsating DC conditions.

This device operates effectively within a voltage range of 220-250V AC at a frequency of 50-60Hz and withstands breaking currents up to 6kA, ensuring robust overload and fault protection. The thermal magnetic tripping mechanism provides combined protection from both overloads and short-circuit currents.

Its compact 19mm width and mounting method using DIN rail support ease of integration in control panels and distribution boards. Equipped with screw terminals, the breaker ensures secure and reliable wiring connections. The reset lever actuator facilitates straightforward manual reset after tripping events.

The product is engineered to operate reliably within ambient temperature conditions of -5 to 40°C, making it suitable for various environments. Manufactured in China, it complies with international safety and environmental standards including RoHS, IEC, and CE, meeting global regulatory requirements.

The Contactum RCBO incorporates an ABC indicator 'A' for clear system status identification and is finished in white for standardized electrical panel styling. The device is ideal for general purpose applications requiring sensitive earth fault and overload protection for single pole electric circuits.

Class A Type B tripping characteristics provide sensitive earth leakage protection. Rated voltage range of 220-250V AC ensures compatibility with standard electrical supplies. Thermal magnetic tripping mechanism with 6kA breaking capacity for secure overload protection.

Compact design with 19mm width, suitable for DIN rail mounting across varied installations. Reset actuator operated by a lever for ease of use in industrial and commercial environments. Operational temperature range from -5 to 40°C to withstand diverse ambient conditions.

Equipped with screw terminal connections for secure wire fixing and installation. Conforms to RoHS, IEC, and CE standards ensuring quality and safety compliance. Available in white color with ABC indicator 'A' for easy identification.
