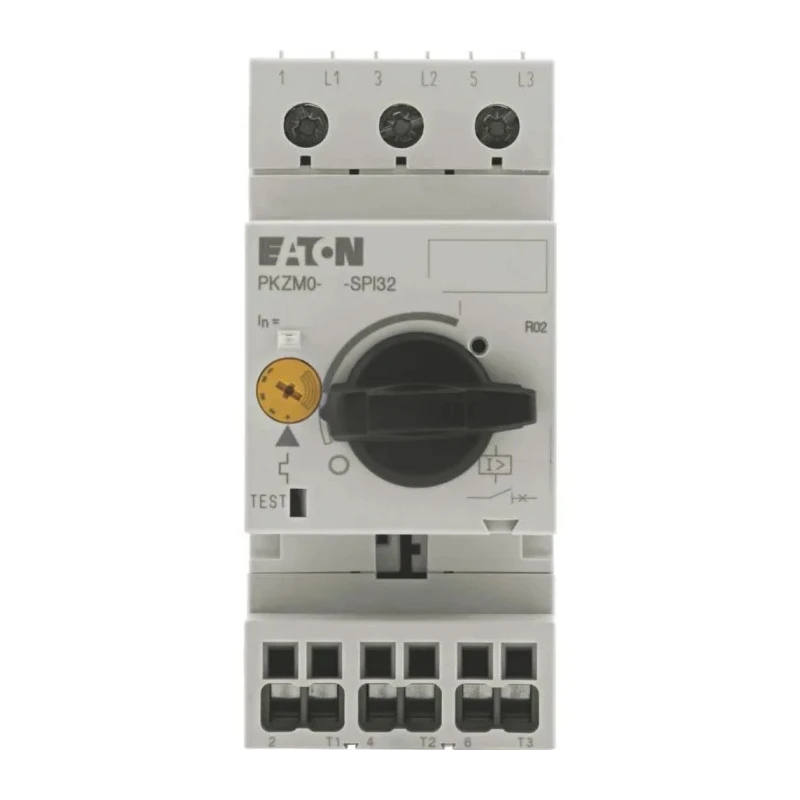

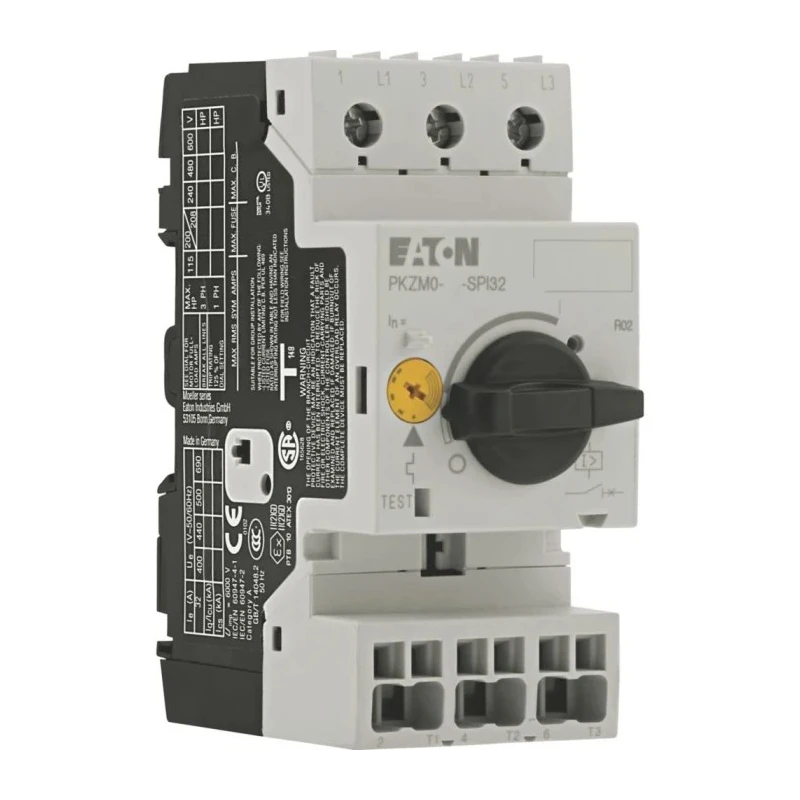

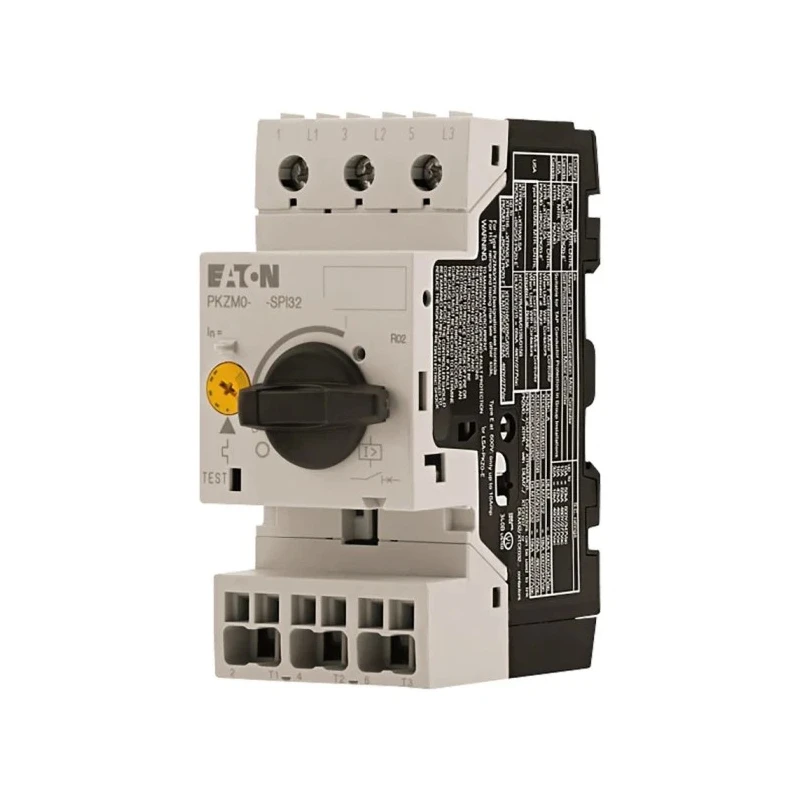

Eaton 32A Motor Protection Circuit Breaker, PKZM0 Series, 690V Supply Voltage, 3 Poles, IP20, -25°C to 199203 PKZM0-32-SPI32
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199203 PKZM0-32-SPI32 |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 32A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- Offers phase-failure sensitivity for enhanced operational safety.
- Supports both screw and push-in terminal connections for versatile installation.
- Designed for durability with an expected lifespan of 100,000 operations.
- Mounts easily on top-hat rails with finger-proof design for user protection.
- Rated IP20 for protection against solid objects and suitable for industrial environments.
- Operates reliably in a temperature range from -25°C to 55°C.
- Features 3-pole configuration for three-phase motor protection applications.
- Compliant with RoHS standards ensuring environmentally safe manufacturing.
Product Description
The Eaton 199203 PKZM0-32-SPI32 Motor Protection Circuit Breaker is a highly reliable device designed to protect three-phase motors from electrical faults including overloads and phase failures. This PKZM0 Series breaker features a current rating of 32A and supports up to 690V supply voltage, suitable for a variety of industrial motor starter combinations.
Engineered for demanding industrial, manufacturing, and automation environments, this circuit breaker incorporates phase-failure sensitivity, reducing the risk of motor damage due to voltage irregularities. It offers flexible connection options with both screw and push-in terminals, ensuring compatibility with different wiring practices.
The device benefits from a robust design capable of withstanding 100,000 mechanical operations, enhancing long-term reliability and minimizing maintenance needs. Installation is simplified via snap-on mounting compatible with standard top-hat rails, and its finger-proof construction improves user safety during operation and servicing.
With an IP20 rating, this circuit breaker is protected against ingress of solid objects larger than 12mm, making it suitable for typical indoor industrial panel installation. It is built to operate efficiently across a broad temperature range from -25°C up to 55°C, ensuring consistent performance under varying environmental conditions.
The 3-pole configuration makes it ideal for use in three-phase motor protection systems, widely used in industrial automation, HVAC, water treatment and manufacturing processes where motor safety is critical.
Phase-failure sensitive protection improves motor safety. Dual terminal types allow flexible wiring options. High durability rated for 100,000 operations. Top-hat rail mounting enables quick installation. Finger-proof design enhances operator safety.
IP20 rating ensures solid object protection. Operational from -25°C to 55°C for varied environments. 3 poles designed for three-phase motor protection. Manufactured in Germany with RoHS compliance.
This Eaton Motor Protection Circuit Breaker is essential for any industrial setup requiring high breaking capacity and reliable motor protection. Explore more Motor Protection Circuit Breaker products to ensure the best fit for your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, making it suitable for various industrial applications.
It supports a maximum supply voltage of 690V, which is appropriate for many industrial motor starter combinations.
This circuit breaker features a 3-pole configuration, designed specifically for three-phase motor protection applications.
It operates reliably within a temperature range of -25°C to 55°C, ensuring functionality in various environmental conditions.
It supports both screw and push-in terminal connections, providing versatility for different wiring practices.
This model has an IP20 rating, which protects against solid objects larger than 12mm, suitable for indoor industrial installations.
It mounts easily on top-hat rails, allowing for quick and straightforward installation in industrial panels.
This unit is designed for durability, with an expected lifespan of 100,000 mechanical operations, minimizing maintenance needs.
Yes, it is compliant with RoHS standards, ensuring environmentally safe manufacturing practices.
This circuit breaker is manufactured in Germany, ensuring adherence to high manufacturing standards.
It is ideal for use in three-phase motor protection systems, commonly found in industrial automation, HVAC, and manufacturing processes.
The overall dimensions are 75mm in length, 45mm in width, and 75mm in depth.
