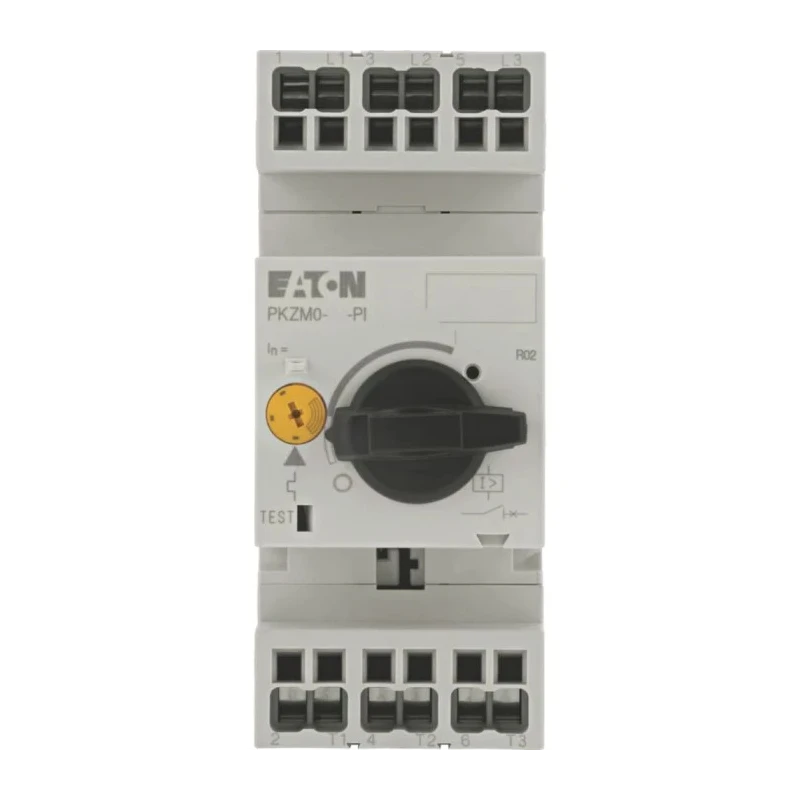

Eaton 16A PKZM 0 Motor Protection Circuit Breaker 690V IP20, -25°C to 55°C 199174 PKZM0-16-T-PI

Eaton 199174 PKZM0-16-T-PI Motor Protection Circuit Breaker is a high-quality electrical device designed for robust motor and transformer protection in industrial and automation settings. Rated for 16A current and 690V supply voltage, this circuit breaker provides dependable safeguarding against overload and fault conditions.

With an operating temperature range from -25°C to 55°C, it performs reliably under varying environmental conditions including usage at altitudes up to 2000 meters. The product features a 3-pole design and IP20 rating, ensuring user safety by preventing direct contact with live components.

The PKZM0 series incorporates phase-failure sensitivity to detect and react promptly to electrical phase issues, protecting connected motors effectively. It also offers protection against high inrush currents that commonly occur with transformer starts, thereby enhancing system stability.

Installation is simplified with push-in terminal connections and compatibility with standard IEC/EN 60715 top-hat rails, facilitating integration within electrical cabinets and panels. Engineered for durability, it can withstand up to 100,000 operational cycles, making it suitable for continuous industrial use.

This motor protection circuit breaker is recommended for industrial applications requiring adherence to efficiency standards such as IE3 motor classifications. Its compliance with RoHS standards further underlines its environmental compatibility.

Features phase-failure sensitivity enhancing motor protection. Safeguards transformers against high inrush current conditions. Equipped with push-in terminal connections for easy installation. Operates safely across -25°C to 55°C temperature range.

Rated IP20 for protection against direct contact. Designed with three poles for effective circuit interruption. Suitable for industrial transformer and motor applications. Mounts easily on IEC/EN 60715 top-hat rails within electrical panels.

Supports motors with efficiency class IE3 to improve operational efficiency. Constructed to sustain up to 100,000 operational cycles ensuring longevity.
