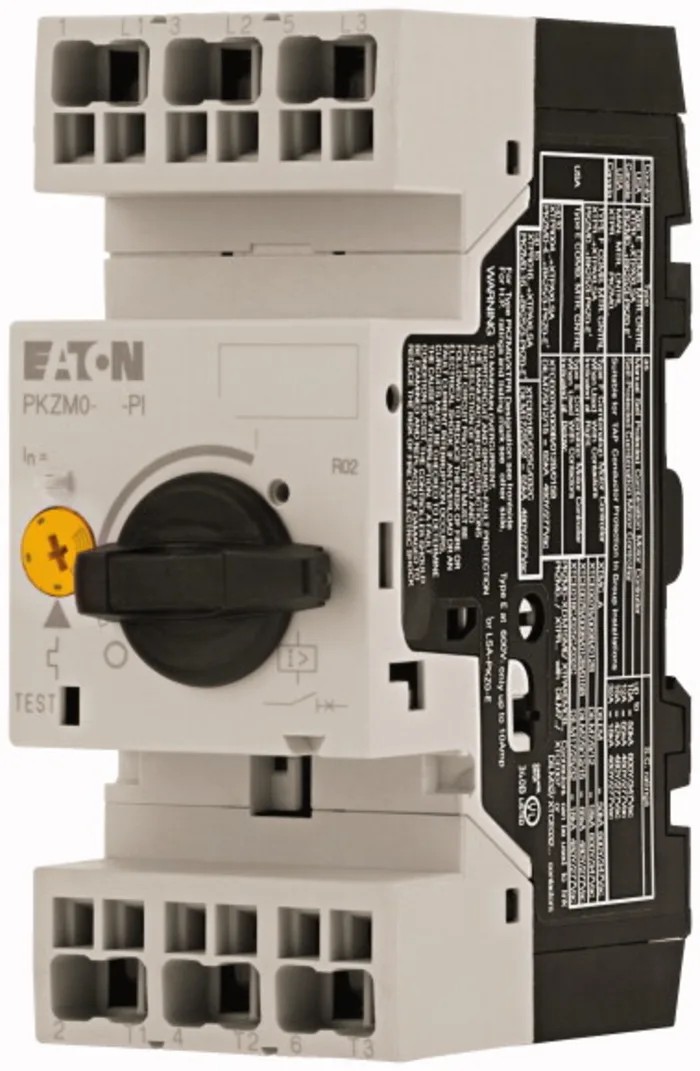

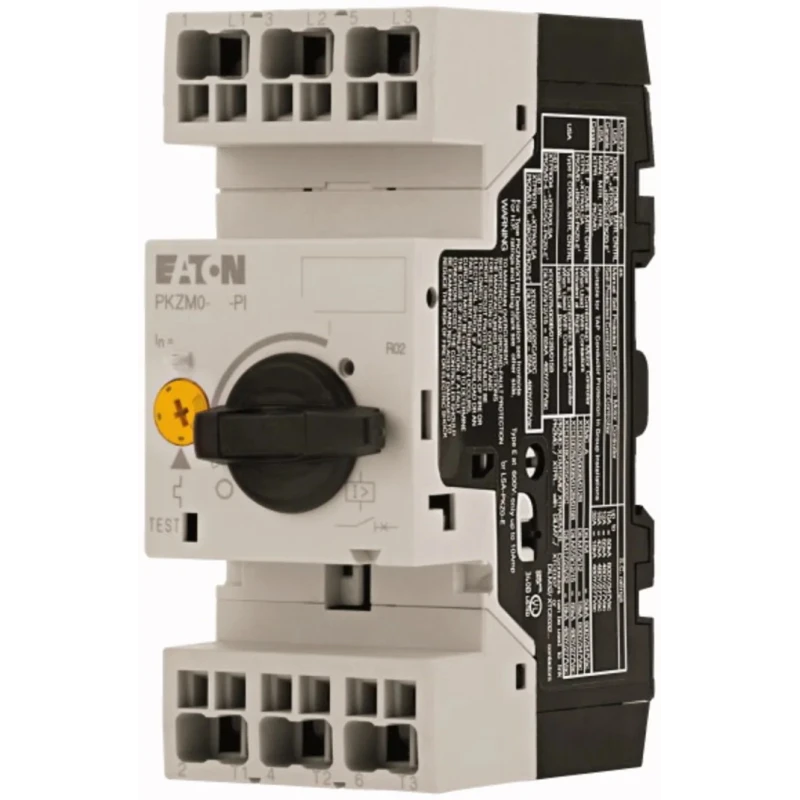

Eaton Motor Protection Circuit Breaker PKZM 0 Series 250mA 690V IP20, -25°C to 55°C 199164 PKZM0-0,25-T-PI

The Eaton 199164 PKZM0-0,25-T-PI motor protection circuit breaker from the PKZM 0 series is engineered to offer precise and reliable protection for electric motors. This device is rated for a current of 250mA and supports a supply voltage of 690V, making it suitable for various industrial and commercial motor protection applications.

Designed for durability and safety, it features thermomagnetic switching technology that ensures rapid tripping under fault conditions, protecting motors from overload and short circuits. The circuit breaker is equipped with push-in terminals facilitating straightforward and secure electrical connections.

With an IP20 degree of protection, this device guards against solid foreign objects while being suitable for indoor motor installations. Its operating ambient temperature range of -25°C to 55°C allows functionality under diverse environmental conditions.

The compact dimensions of 75mm (length) x 45mm (width) x 75mm (depth) make it viable for installation in constrained control panels and motor control centers. The three-pole design supports three-phase motors and transformer protection systems, providing comprehensive motor safeguarding.

Safety is enhanced by the finger and back-of-hand proof design that prevents direct contact with live parts when operated from the front panel, featuring a turn-button control for user convenience.

Moreover, this motor protection circuit breaker complies with RoHS standards, demonstrating Eaton's commitment to environmentally responsible manufacturing. It is manufactured in Germany, ensuring high-quality engineering and reliability.

The device operates within an ambient temperature range of -25°C to 55°C. Employs thermomagnetic switching technology for reliable motor protection. Designed with push-in terminals for ease of electrical connections. Suitable for motors with efficiency class IE3, ensuring energy-efficient protection.

Features a compact design with overall dimensions 75mm length, 45mm width, and 75mm depth. Provides protection for three poles, supporting 3-phase motor applications. Includes a finger and back-of-hand proof design for user safety when actuated from front.

Complies with RoHS standards, ensuring environmentally friendly manufacturing.

This product is widely used in industrial automation, manufacturing units, HVAC systems, and electrical motor control panels, ensuring motor safety and extending motor lifespan. Eaton Motor Protection Circuit Breakers offer trusted protection in motor-driven applications, aligning with industry safety standards.
