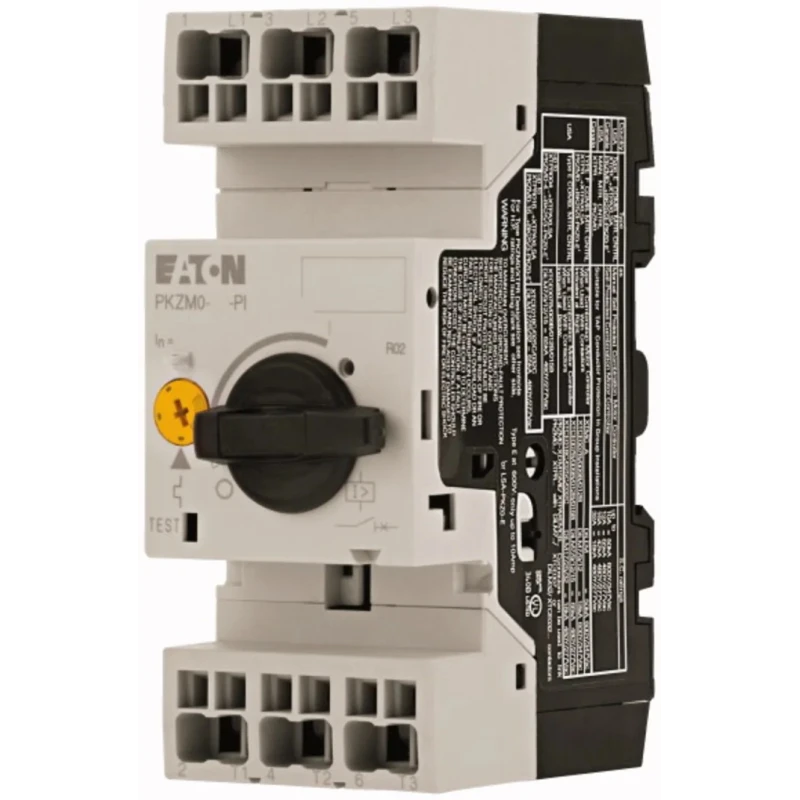

Eaton Motor Protection Circuit Breaker PKZM0-0,25-PI, 250mA, 690V, 3 Poles, IP20, -25°C to 55°C 199149 PKZM0-0,25-PI
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199149 PKZM0-0,25-PI |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 250mA |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- Designed with thermomagnetic switching technology for precise motor protection.
- Suitable for motor starter combination systems, ensuring effective motor control.
- Provides IP20 degree of protection against contact with hazardous parts.
- Equipped with push-in terminal connections for simple and fast wiring.
- Operates safely within ambient temperatures from -25°C to 55°C.
- Three poles enable comprehensive protection for three-phase motors.
- Designed for motors with efficiency class IE3 and higher.
- Constructed with finger and back-of-hand proof design for enhanced operator safety.
Product Description
The Eaton 199149 PKZM0-0,25-PI motor protection circuit breaker is a high-quality device designed for protecting motors from overloads and short circuits in industrial and automation environments. Featuring a thermomagnetic switching technique, this breaker offers precise current detection and quick response capabilities, ensuring motor safety in critical applications.
Operating at a supply voltage of 690V with a 250mA current rating, this three-pole breaker is ideal for motor starter combination systems. Its IP20 protection rating makes it suitable for use in environments where protection against accidental contact with live parts is necessary.
The device is built with push-in terminal technology, allowing efficient wiring and maintenance. Its compact size - with overall dimensions of 75mm length, 45mm width, and 75mm depth - enables easy installation in tight control panels. Designed with an operating temperature range from -25°C to 55°C, it is well-suited for diverse industrial climates.
Safety features include a finger and back-of-hand proof design, preventing accidental contact during manual operation via the built-in turn-button control. The device supports motors with efficiency class IE3, contributing to energy-efficient motor protection. Moreover, it meets RoHS environmental standards, underscoring its compliance with regulatory requirements.
Applications span across industrial manufacturing, automation systems, HVAC controls, water treatment plants, and various commercial motor-driven equipment. The robust construction and reliable performance make it a favored choice among engineers and technicians for safeguarding motor operations against electrical faults and overload conditions.
Thermomagnetic switching technology ensures precise motor protection. Compact size allows flexible installation in electrical control panels. Three-pole design suitable for three-phase motor protection. Push-in terminal connections facilitate quick wiring.
Wide operating temperature range from -25°C to 55°C. IP20 protection class safeguards against accidental contact with live electrical parts. Finger and back-of-hand proof design enhances operator safety. Compatible with energy-efficient IE3 class motors.
Conforms to RoHS environmental standards for safe usage. Applicable in diverse industrial and commercial motor protection scenarios.
Choose the Eaton 199149 PKZM0-0,25-PI motor protection circuit breaker for dependable motor safety and compliance in critical operational environments. Browse further in the Motor Protection Circuit Breaker category on EnvMart for related products and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this circuit breaker is 250mA.
It operates at a maximum supply voltage of 690V.
This model features three poles, making it suitable for three-phase motor protection.
The circuit breaker has an IP20 rating, providing protection against contact with hazardous parts.
It operates safely within an ambient temperature range of -25°C to 55°C.
This model is equipped with push-in terminal connections for simple and fast wiring.
It features a finger and back-of-hand proof design to prevent accidental contact during manual operation.
The overall dimensions are 75mm in length, 45mm in width, and 75mm in depth.
Yes, it conforms to RoHS environmental standards.
It is designed for motors with efficiency class IE3 and higher.
This circuit breaker is applicable in industrial manufacturing, automation systems, HVAC controls, and water treatment plants.
The country of origin for this circuit breaker is Germany.
