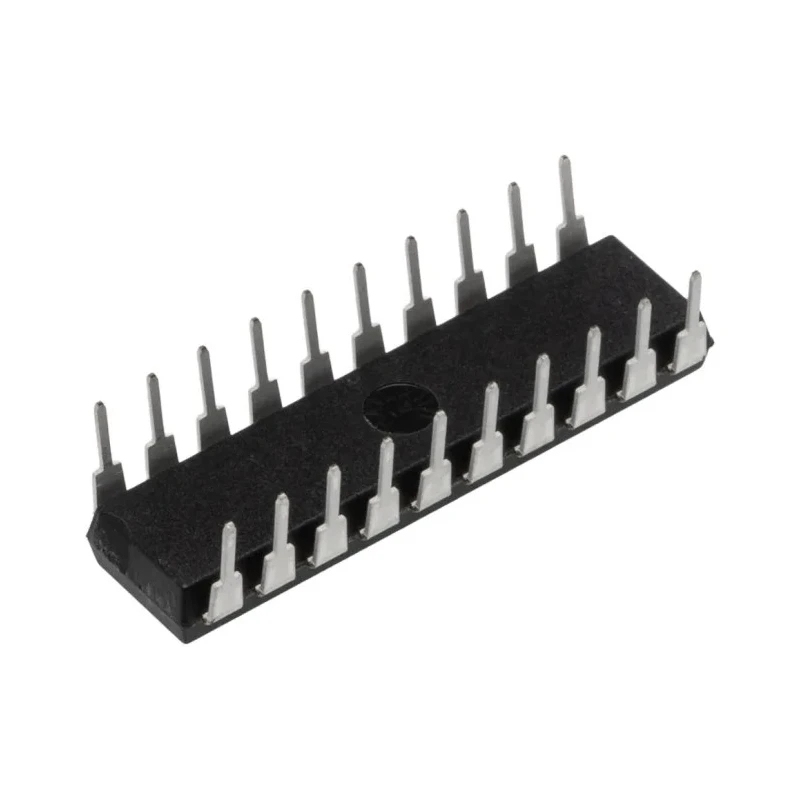

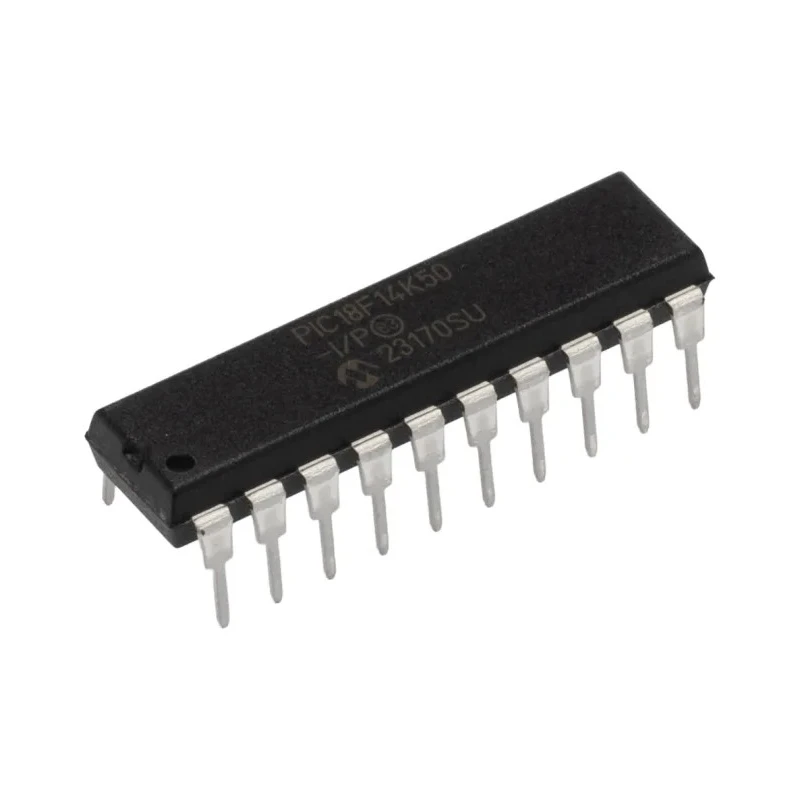

Microchip 8 bit PIC18F Microcontroller, 48 MHz, 16 kB FLASH, 256B RAM, 20-Pin PDIP PIC18F14K50-I/P

Microchip PIC18F14K50-I/P is a versatile 8 bit PIC microcontroller designed for advanced embedded system applications requiring reliable high-speed processing. Featuring a 48 MHz maximum clock frequency and 16 kB FLASH memory, this PIC18F series device supports efficient program execution and data handling.

It has a 20-pin PDIP package suitable for through-hole mounting, offering easy integration into electronic circuits. The microcontroller's 15 programmable input/output lines and multiple peripherals including two analogue comparators and 11 channels of 10-bit ADC provide extensive interfacing capabilities for complex control systems.

With a supply voltage range from 1.8 V to 5.5 V and support for a maximum power dissipation of 800 mW, the PIC18F14K50-I/P ensures stable operation across a broad temperature range from -40°C to 85°C, meeting industrial and commercial environmental demands.

The inclusion of four dedicated timers and the efficient RISC instruction set architecture enhances timing precision and computational efficiency, making it ideal for applications in industrial automation, consumer electronics, and communication devices.

Physical dimensions are optimized for space-saving designs, measuring 26.92 mm by 7.11 mm by 4.95 mm, allowing compact PCB layouts. This microcontroller facilitates rapid design and prototyping with robust technical specifications.

Operates at a maximum clock frequency of 48 MHz for high-speed processing. Equipped with 16 kB of FLASH program memory and 256 bytes of RAM. Features 15 programmable input/outputs and two analogue comparators. Supports a wide supply voltage range from 1.8 V to 5.5 V for flexible power options.

Includes 11 channels of 10-bit ADC for precise analog signal processing. Designed with four timers and a RISC instruction set architecture for efficient computing. Suitable for through-hole mounting with PDIP 20-pin package for ease of integration.

Functions effectively between operating temperature range of -40°C to 85°C. Maximum power dissipation rated at 800 mW, ensuring reliable performance. Compact dimensions with length 26.92 mm, width 7.11 mm and height 4.95 mm.

This Microchip PIC18F14K50-I/P microcontroller is essential for designers and engineers developing precise and reliable embedded systems across industrial, commercial, and laboratory sectors. Explore a wide range of PIC Microcontrollers on EnvMart for your next project.
