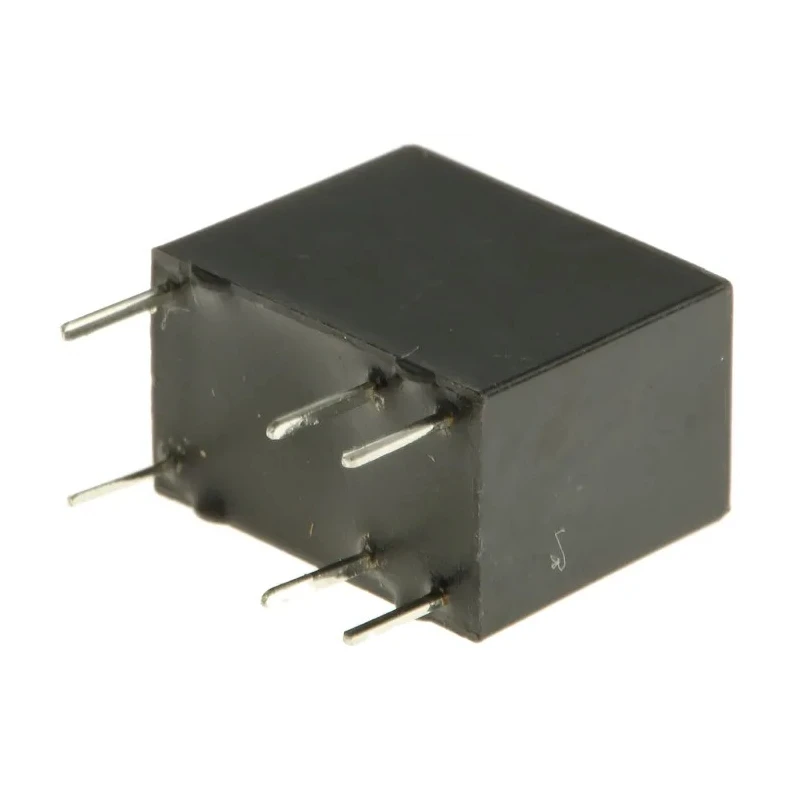

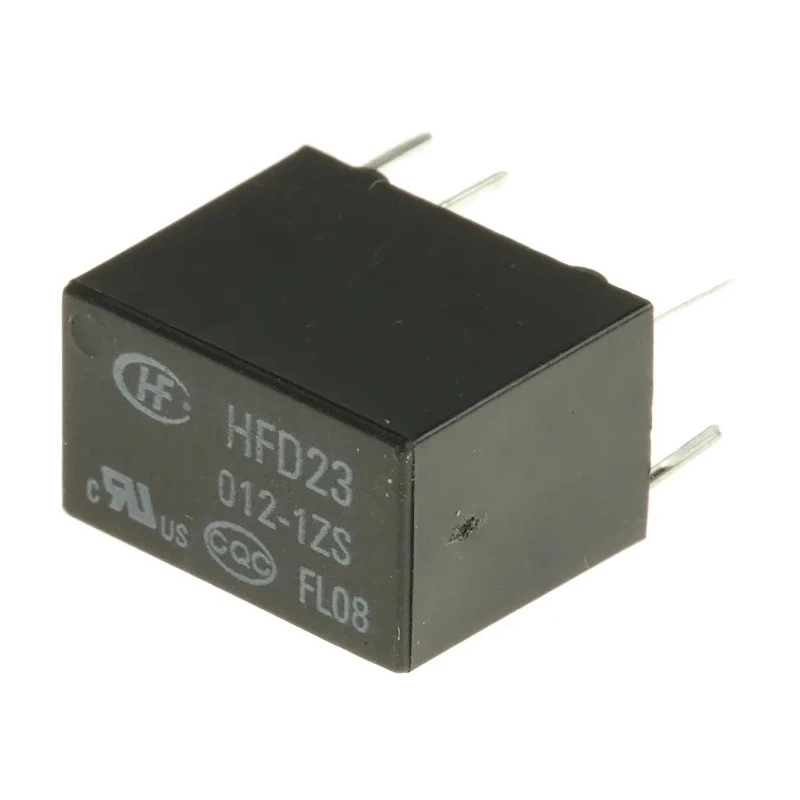

RS PRO Sub Miniature PCB Signal Relay, 12V DC Coil, 2A Switching Current, SPDT Contact Configuration 476-725
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 10mm |
| Length | 12.5mm |
| Model | 476-725 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated Silver Nickel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Contact Rating | 0.5A @ 125Vac, 1A @ 30Vdc |
| Minimum Operating Temperature | -30°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 405Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 50mW |
| Switching Power | 60W |
| Standards and Approvals | UL, CUL, CQC |
| Aratas PCB Signal Relay, 12V dc Coil, 2A, SPDTBrand | Omron |
Key Features
- Single Pole Double Throw (SPDT) contact configuration ensures versatile switching.
- Compact size of 12.5 x 10 x 7.5 mm for easy PCB mounting in space-constrained applications.
- High sensitivity coil power rating of 50mW reduces power consumption effectively.
- Maximum switching voltages are 125V AC and 60V DC with a switching power of 60W.
- Gold plated silver nickel contact material enhances durability and reliability.
- Operating temperature range from -30°C to 70°C supports varied environmental conditions.
- Contact resistance rated at 100mΩ ensures minimal signal loss.
- PCB terminal type for secure, reliable installation on printed circuit boards.
Product Description
RS PRO 476-725 PCB Signal Relay is a premium sub miniature non-latching Signal Relay featuring a 12V DC coil and a switching current capacity of 2A. It is designed around a Single Pole Double Throw (SPDT) contact configuration, ideal for circuits requiring reliable switching between two signal paths.
Its compact sugar cube format (12.5 mm length, 10 mm height, and 7.5 mm width) allows for convenient PCB mounting especially where board space is limited, making it excellent for industrial and electronic applications.
This relay operates with a low coil power consumption of 50mW, contributing to energy efficiency in electronic circuit boards. It supports maximum switching voltages of 125V AC and 60V DC with a power handling capability of 60W, suitable for signal switching tasks in automation, control systems, and instrumentation.
The contact material is gold plated silver nickel, providing robust corrosion resistance and enhanced electrical conductivity for critical signal paths. Its contact resistance is rated at 100 milliohms, ensuring minimal interference in signal transmission.
Operating reliably across a wide temperature range from -30°C to 70°C, this relay complies with RoHS standards and is approved under UL, CUL, and CQC certifications, reflecting its suitability in professional industrial and commercial electronic assemblies.
Single Pole Double Throw (SPDT) contact configuration for versatile switching. Compact sub miniature design, measuring only 12.5 x 10 x 7.5 mm for PCB mount applications. Low coil power rating of 50mW for energy-efficient operation.
High reliability gold plated silver nickel contacts reduce corrosion and signal loss. Wide operating temperature range from -30°C to 70°C for diverse environments. Supports maximum switching voltages of 125V AC and 60V DC with 60W power handling capacity.
Ideal for use in automation, electrical control, instrumentation, and industrial electronics.
This RS PRO product is made in China and represents a high-quality relay choice for engineers and designers requiring compact, dependable signal switching components. Explore more relay and contactor solutions in the RS PRO range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A, making it suitable for various signal switching applications.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching between two signal paths.
The relay supports maximum switching voltages of 125V AC and 60V DC, with a switching power capability of 60W.
This relay operates with a coil voltage of 12V DC and has a low coil power rating of 50mW, contributing to energy efficiency.
The dimensions of this relay are 12.5 mm in length, 10 mm in height, and 7.5 mm in width, making it compact for PCB mounting.
The contact material is gold plated silver nickel, which enhances durability and reduces corrosion.
The contact resistance is rated at 100 milliohms, ensuring minimal signal loss during operation.
It operates reliably across a wide temperature range from -30°C to 70°C, suitable for various environmental conditions.
This model utilizes a PCB terminal type for secure and reliable installation on printed circuit boards.
The relay complies with RoHS standards and is approved under UL, CUL, and CQC certifications, indicating its suitability for professional use.
It is ideal for use in automation, electrical control, instrumentation, and industrial electronics, supporting various signal switching tasks.
The coil resistance is rated at 405 ohms, which is an important specification for its operation.
