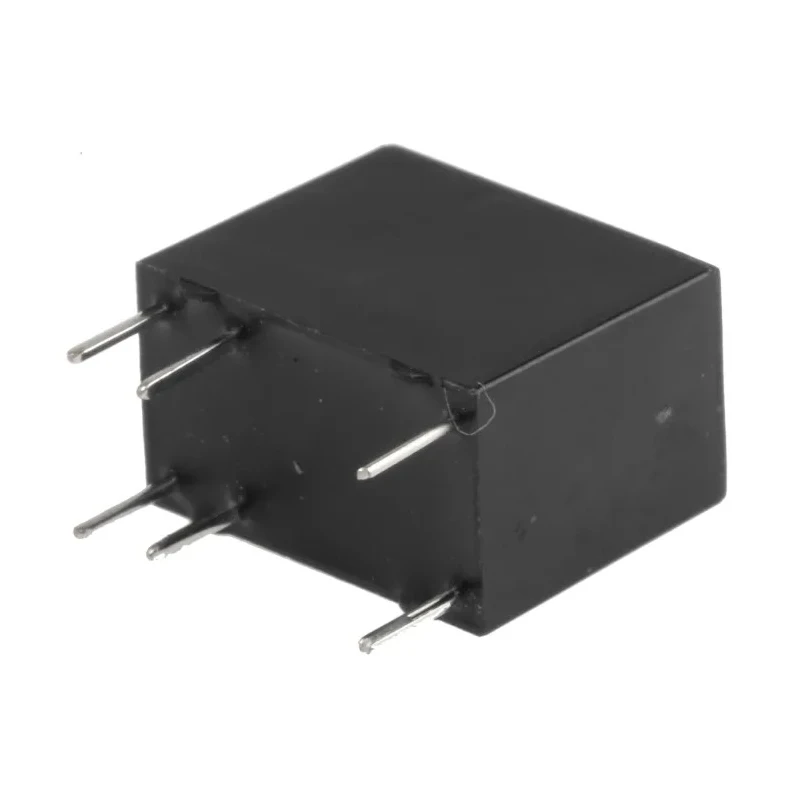

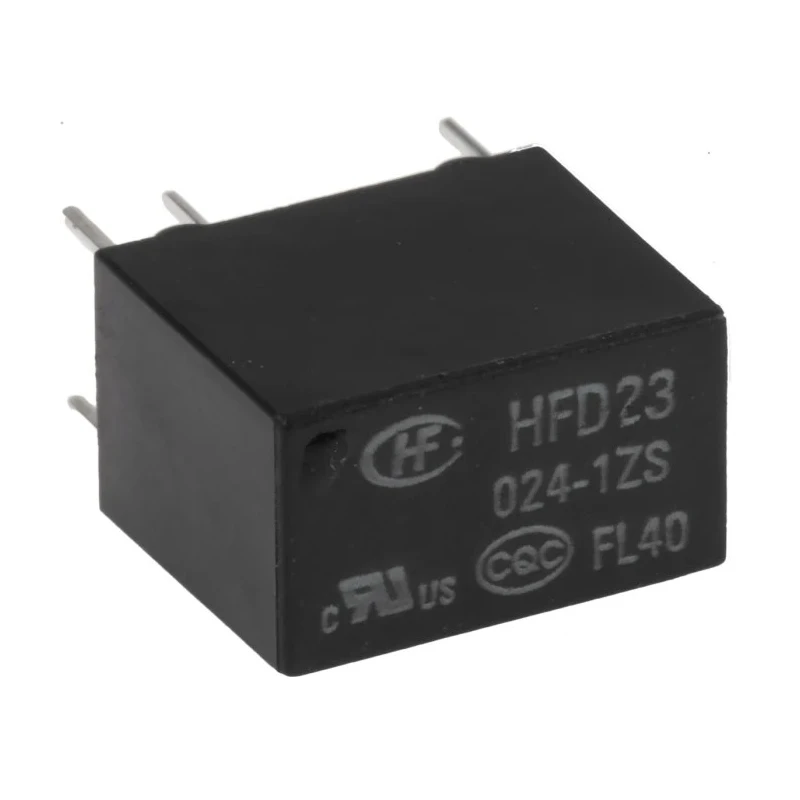

RS PRO PCB Non-Latching Relay, 24V DC Coil Voltage, 2A Switching Current, SPDT Contact Configuration 476-680
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 10mm |
| Length | 12.5mm |
| Model | 476-680 |
| Mount Type | PCB |
| Contact Configuration | SPDT |
| Contact Rating | 0.5A @ 125Vac, 1A @ 30Vdc |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | CQC 02001001948, RoHS Compliant, UL E133481 |
| Coil Voltage | 24V dc |
| High Coil sensitivity | 150mW |
| Hongfa Europe GMBH PCB Signal Relay, 24V Coil, 2A, DPDTBrand | Hongfa Europe GMBH |
Key Features
- Designed with high coil sensitivity of 150mW for efficient operation.
- Supports a maximum switching current of 2A, suitable for various low-power applications.
- PCB mount type with through-hole terminal for easy integration in circuit boards.
- Compact dimensions of 12.5mm length and 10mm height optimize space utilization in designs.
- Contact ratings include 0.5A at 125Vac and 1A at 30Vdc providing versatile usage.
- Complies with multiple standards including CQC, RoHS, and UL ensuring safety and quality.
- Wash tight design enhances reliability in manufacturing and operational environments.
Product Description
RS PRO 476-680 is a PCB mount non-latching relay designed for electrical and automation applications requiring reliable switching with low coil power consumption. It features a coil voltage of 24V DC and a switching capability of 2A max current, configured with a Single Pole Double Throw (SPDT) contact system.
The relay's high coil sensitivity of 150mW allows efficient activation while its wash tight construction ensures robustness during PCB manufacturing and subsequent use. With compact dimensions of 12.5mm in length and 10mm in height, it is ideal for space-constrained layouts. Its through-hole terminal design facilitates integration into a wide range of electronic assemblies.
The contact rating offers 0.5A at 125Vac and 1A at 30Vdc, making it suitable for signal and power switching in industrial, laboratory, commercial, and manufacturing automation systems. The product meets industry standards and certifications such as UL E133481, CQC 02001001948, and RoHS compliance, verifying its quality and environmental safety.
Widely applied in power relay applications, the RS PRO 476-680 is an excellent component for improving machine efficiency and control in numerous electrical systems. Its non-latching design ensures the relay returns to its default state when de-energized, making it suitable for intermittent switching needs.
High coil sensitivity of 150mW for energy-efficient operation. 2A maximum switching current with SPDT contact configuration. PCB mount type with through-hole terminals for secure fitting. Compact size: 12.5mm length and 10mm height dimensions.
Contact ratings of 0.5A at 125Vac and 1A at 30Vdc provide versatility. Wash tight design enhances durability during manufacturing processes. Complies with CQC, RoHS, and UL safety and quality standards.
This relay is designed for industrial and manufacturing automation, electrical control units, and other professional electronics requiring precise relay switching. Environmentally compliant and quality assured, RS PRO relays represent a reliable choice for multiple applications.
Explore more products within the Power Relays category at EnvMart to find the best component solutions for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 2A, making it suitable for various low-power applications.
This relay operates with a coil voltage of 24V DC.
The relay has compact dimensions of 12.5mm in length and 10mm in height, optimizing space utilization in designs.
It features a Single Pole Double Throw (SPDT) contact configuration.
The contact ratings include 0.5A at 125Vac and 1A at 30Vdc, providing versatility for different applications.
It utilizes through-hole terminals for secure fitting on circuit boards.
This model complies with several standards including CQC 02001001948, RoHS, and UL E133481, ensuring safety and quality.
The relay has a high coil sensitivity of 150mW, allowing for energy-efficient operation.
The relay is designed for PCB mounting, making it suitable for integration into various electronic assemblies.
It is suitable for industrial, laboratory, commercial, and manufacturing automation systems requiring reliable switching.
The wash tight design enhances reliability during manufacturing processes and operational environments, ensuring durability.
This relay's non-latching design ensures it returns to its default state when de-energized, making it suitable for intermittent switching needs.
