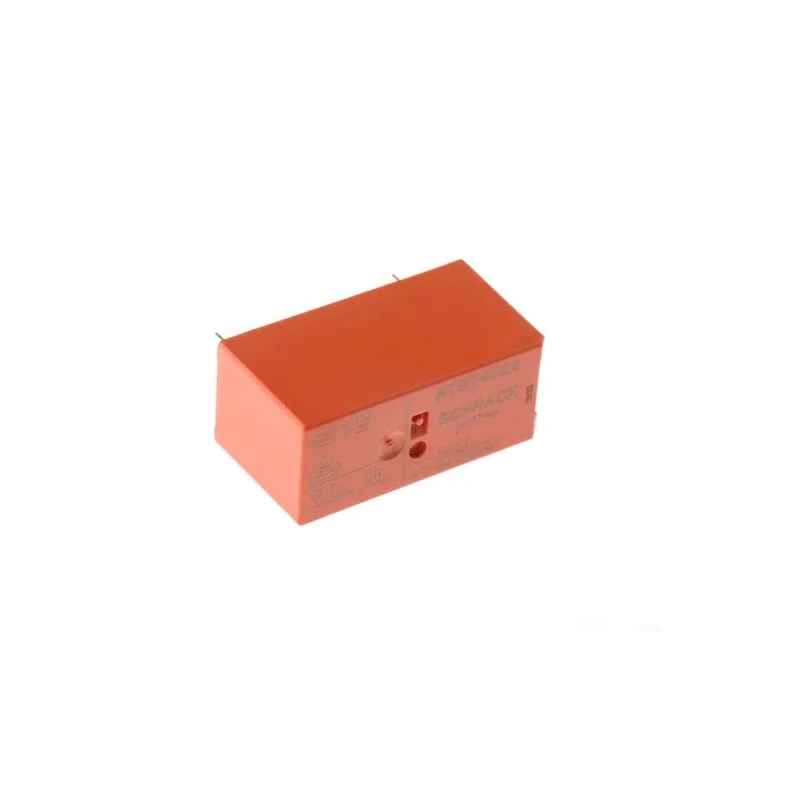

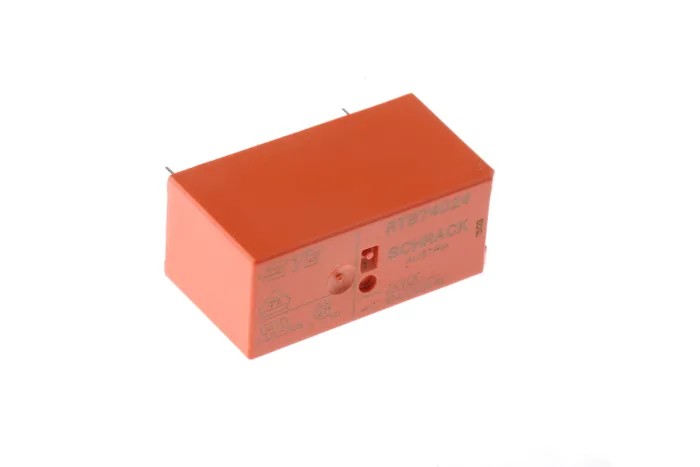

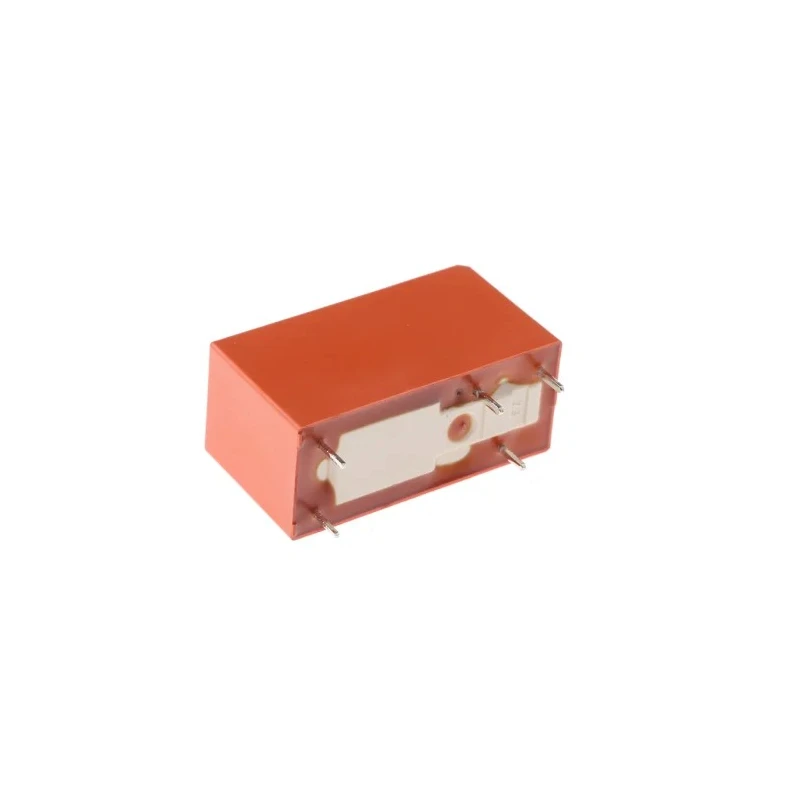

TE Connectivity PCB Power Relay, 24V dc Coil, 12A Switching Current, SPDT 4-1393238-6 RTB74024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | 4-1393238-6 RTB74024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 2.3kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 24V dc coil voltage and has a highly sensitive 400mW coil power.
- Switches 12A current and supports up to 400V AC switching voltage.
- Features a single pole double throw (SPDT) contact configuration for versatile switching.
- Constructed with silver nickel alloy contact material ensuring durability and reliability.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width for PCB space efficiency.
- Coil resistance is 2.3 kΩ suitable for low power consumption applications.
- Operating temperature range from -40°C to 85°C for wide environmental tolerance.
- Mount type is PCB with solder terminal type enabling easy circuit board integration.
Product Description
TE Connectivity 4-1393238-6 RTB74024 PCB Power Relay is a highly reliable and sensitive device designed for industrial, electrical, and automation applications. It operates on a 24V dc coil voltage with a coil power of only 400mW, enabling efficient energy use in control circuits.
Featuring a single pole double throw (SPDT) contact configuration, it is capable of handling switching currents up to 12A and switching AC voltages up to 400V. This makes it ideal for applications such as temperature control systems and domestic appliance automation where precise switching is crucial.
The relay is built with silver nickel alloy contacts that enhance conductivity and extend operational life. Its compact size, with dimensions 29mm long, 15.7mm high, and 12.7mm wide, allows for easy PCB mounting and integration without occupying excessive space.
Designed to perform reliably in harsh environments, it supports a wide operating temperature range from -40°C to 85°C. The coil resistance of 2.3kΩ ensures low power consumption while maintaining high sensitivity.
The relay terminal type is solder, compatible with common printed circuit board assembly processes. As part of the RT1 series, it adheres to IEC 61810 and RoHS standards, guaranteeing safety and environmental compliance.
This power relay is manufactured in Austria, reflecting commitment to quality manufacturing and strict production standards. Operates at 24V dc coil voltage with low 400mW coil power. Supports switching currents up to 12A and AC voltages of 400V.
SPDT contact configuration for reliable switching performance. Constructed with durable silver nickel alloy contacts. Compact PCB mount design with solder terminals. Wide operating temperature range of -40°C to 85°C. Coil resistance of 2.3kΩ for efficient energy use.
Complies with IEC 61810 and RoHS standards for industrial quality. Manufactured in Austria ensuring high manufacturing standards.
TE Connectivity products are widely used in industrial, laboratory, HVAC, manufacturing, water treatment, and domestic automation sectors. This PCB Power Relay offers excellent reliability and performance in demanding electrical control applications. Explore more products in the Power Relay category on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 24V dc coil voltage.
It can handle a maximum switching current of 12A.
This model features a single pole double throw (SPDT) contact configuration.
The relay supports switching AC voltages up to 400V.
The dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil resistance is 2.3 kΩ, which is suitable for low power consumption applications.
It can operate in a temperature range from -40°C to 85°C.
The coil power required is 400mW.
This relay uses a solder terminal type for easy PCB integration.
The contacts are constructed from silver nickel alloy, enhancing conductivity.
It complies with IEC 61810 and RoHS standards, ensuring safety and environmental compliance.
This model is manufactured in Austria, reflecting high manufacturing standards.
