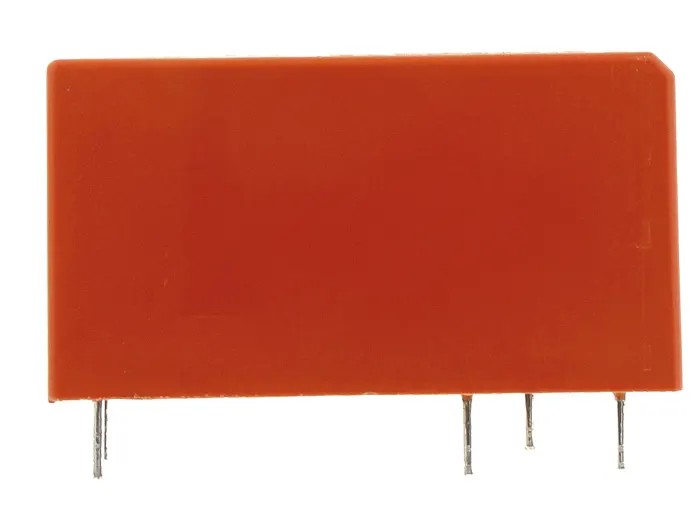

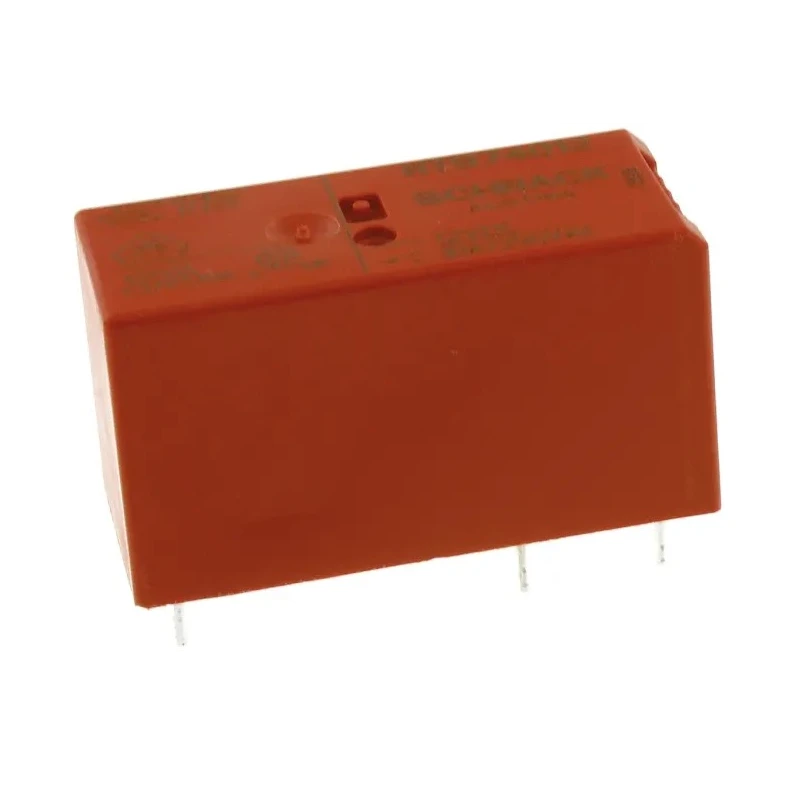

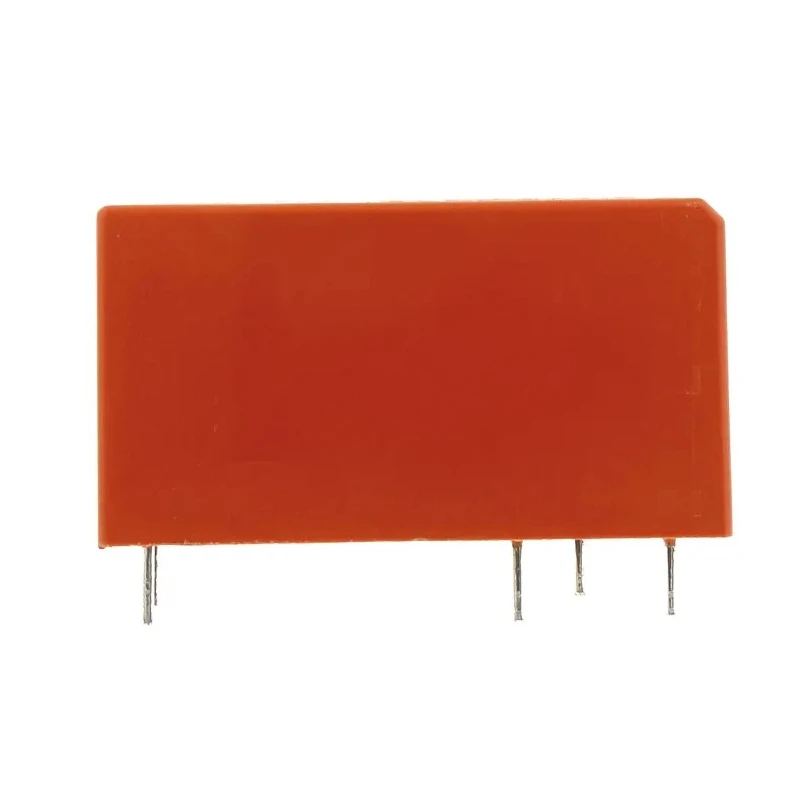

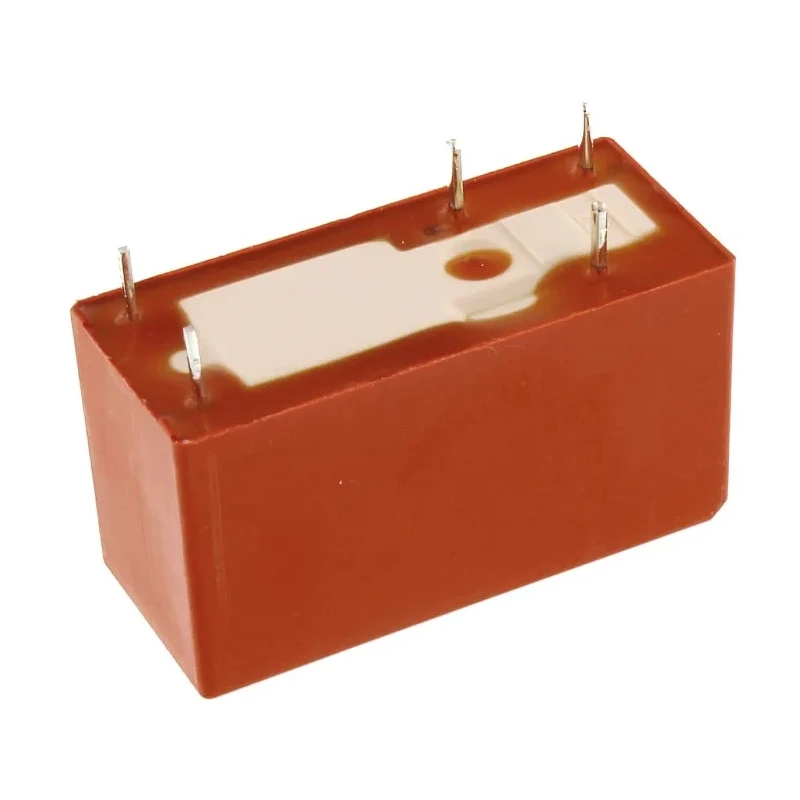

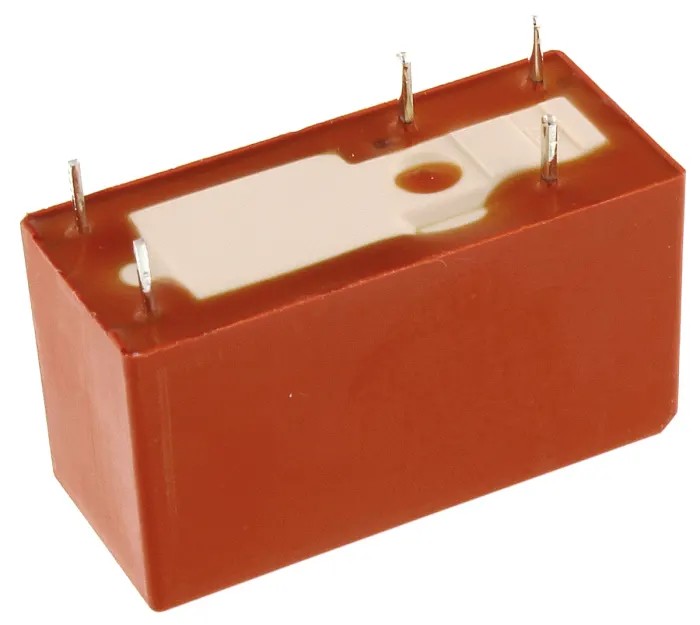

TE Connectivity PCB Power Relay 12V DC Coil 12A Switching Current SPDT RTB74012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB74012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 576Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Ultra sensitive coil with low power consumption of 400mW.
- Silver nickel alloy contacts providing reliable switching performance.
- Operates reliably from -40°C to 85°C temperature range.
- Supports switching AC voltage up to 400V AC.
- Designed under RT1 series with IEC 61810 and RoHS compliance.
- Features solder-type terminals compatible with standard PCB designs.
- Coil resistance is 576 ohms ensuring stable coil energization.
Product Description
TE Connectivity RTB74012 is a high-quality PCB power relay designed for industrial and domestic applications requiring reliable switching of currents up to 12 amperes. It features a 12V DC coil that consumes only 400mW of power, making it highly energy efficient.
This relay utilizes a Silver Nickel Alloy contact material ensuring excellent conductivity and long service life. The device has a Single Pole Double Throw (SPDT) contact configuration, enabling flexible switching options on printed circuit boards.

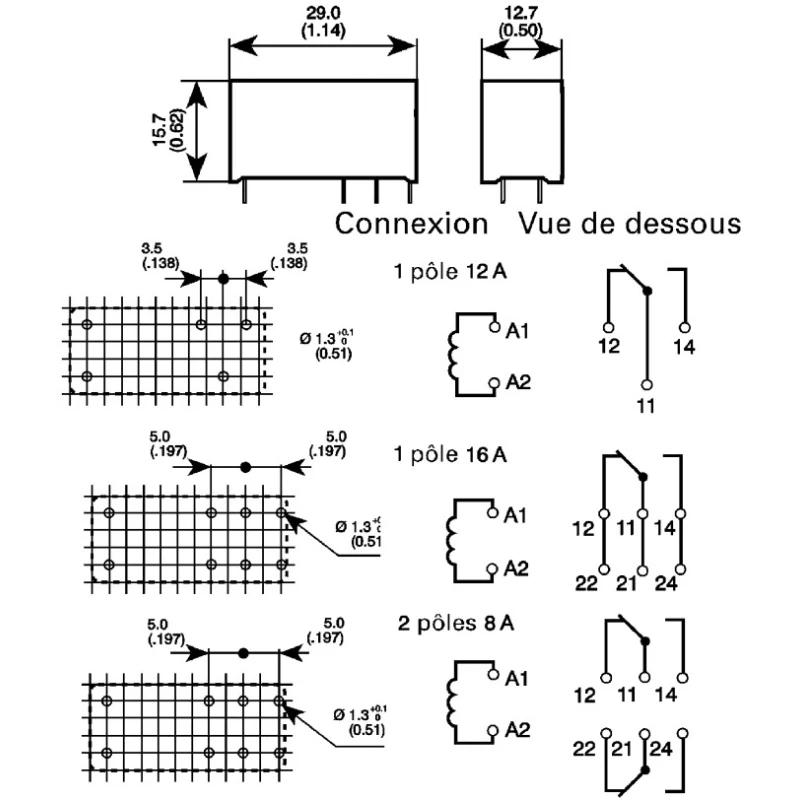

With compact dimensions of 29mm length, 15.7mm height, and 12.7mm width, it suits dense PCB layouts without compromising performance. It operates reliably within a wide temperature range from -40°C to 85°C, ensuring durability in harsh industrial and commercial environments.
The relay supports switching AC voltages up to 400V, making it suitable for controlling various electrical loads including temperature control systems, domestic appliances, and industrial machinery. It is mounted easily on PCBs with solder terminals and follows the RT1 series standards, complying with IEC 61810 and RoHS directives for quality and safety.
Ultra sensitive coil with low power consumption of 400mW. Silver Nickel Alloy contacts provide reliable switching. Compact dimensions for efficient PCB space utilization. Wide operating temperature range from -40°C to 85°C.
Switching AC voltage capacity up to 400V AC. Complies with IEC 61810 and RoHS standards. Suitable for industrial, laboratory, HVAC, and automation applications. Designed for temperature control and domestic equipment switching.
This PCB power relay by TE Connectivity represents a versatile, high-performance solution trusted in electrical, automation, and control gear industries. For advanced relay needs and reliable switch operations, explore further options in the Power Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 12A, making it suitable for various electrical loads.
This model operates with a coil voltage of 12V DC, ensuring compatibility with standard low-voltage applications.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, making it compact for PCB layouts.
The coil resistance is 576 ohms, which helps ensure stable coil energization during operation.
It features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
The relay supports switching AC voltages up to 400V AC, making it suitable for controlling various electrical systems.
This model operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
The contacts are made from Silver Nickel Alloy, which provides reliable switching performance.
It features solder-type terminals, allowing for easy mounting on standard printed circuit boards.
The relay complies with IEC 61810 and RoHS standards, ensuring quality and safety in its applications.
This relay is suitable for industrial, laboratory, HVAC, and automation applications, particularly in temperature control and domestic equipment switching.
The coil consumes only 400mW of power, making it highly energy efficient for relay operation.
