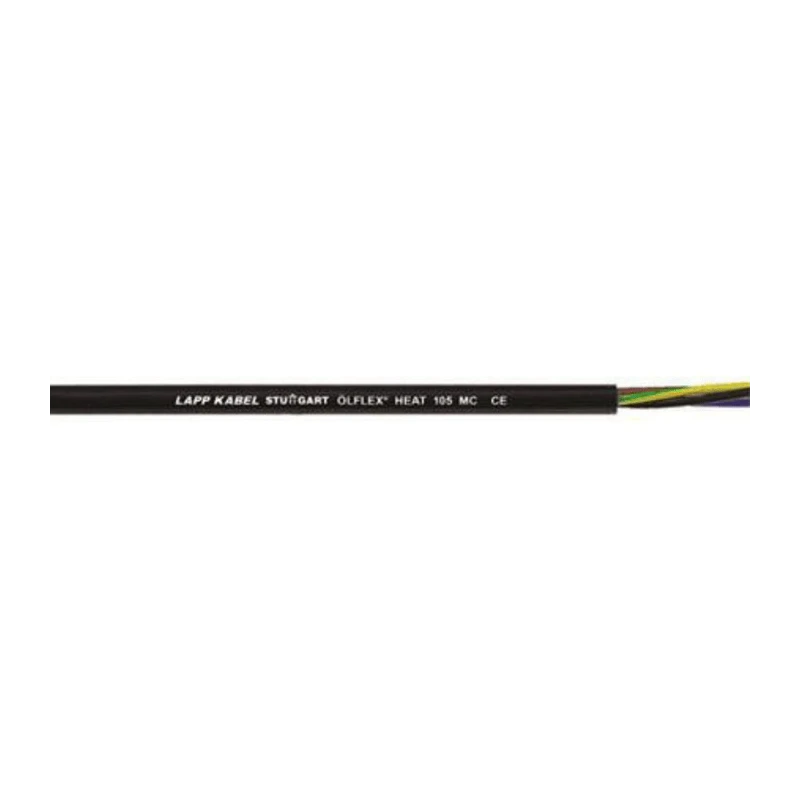

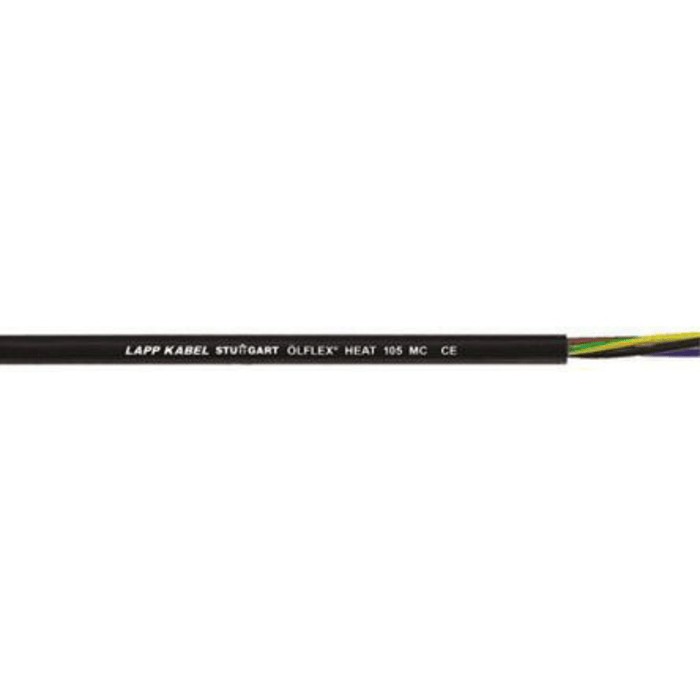

Lapp ÖLFLEX HEAT 105 Series Black 1.5 mm² Control Cable, 500V, 100 m, Polyvinyl Chloride Jacket, Model 0026012
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 1.5mm² |
| Model | 0026012 |
| Cable Length | 100m |
| Series | ÖLFLEX HEAT 105 |
| Outside diameter | 8.1mm |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Bare Copper |
| Sub Type | Power Cable |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| White 3 core rubber mains cable,1.5sq.mmBrand | NEUTRAL |
Key Features
- The cable features a black polyvinyl chloride jacket with flame retardant properties.
- It has a conductor cross-sectional area of 1.5 mm² made of fine strands of bare copper, class 5.
- The rated voltage is 300/500 V, suitable for increased ambient temperature environments up to 90°C.
- The cable is flame retardant according to IEC 60 332.1 and meets CE and RoHS standards.
- The minimum bending radius for flexible use is 15 times the cable diameter, and for static use, 4 times the diameter.
- It is resistant to various oils and chemical media at room temperature.
- The cable length is 100 meters with an outside diameter of 8.1 mm.
- Includes protective conductor GN/YE and cores twisted in layers for reliable electrical performance.
Product Description
Lapp 0026012 Control Cable from the ÖLFLEX HEAT 105 series is a high-quality, heat-resistant control cable featuring a black polyvinyl chloride (PVC) jacket and a conductor cross-sectional area of 1.5 mm². Rated for 300/500 volts, this cable is designed for applications involving motors, transformers, machines, appliances, switch cabinets, and other installations subjected to elevated ambient temperatures up to 90°C.
The cable insulation is made from heat-resistant PVC that provides excellent resistance against multiple oils and chemical media at room temperature. It includes a protective conductor GN/YE and uses fine wire strands of bare copper (Class 5, VDE 0295 CI.5) for enhanced flexibility and conductivity. The cores are twisted in layers to ensure reliable electrical performance.
Flame retardancy is certified according to IEC 60 332.1, enhancing safety in industrial environments. The cable’s minimum bending radius is 15 times the cable diameter for flexible applications and 4 times for static installations, supporting versatile handling during installation.
With an outside diameter of 8.1 mm and a cable length of 100 meters, the ÖLFLEX HEAT 105 cable is suitable for industrial, manufacturing, electrical automation, and HVAC applications requiring robust and heat-resistant wiring solutions.
Black polyvinyl chloride outer jacket with flame retardant properties ensures enhanced safety. Conductor: fine stranded bare copper, Class 5 for flexibility and conductivity. Rated voltage of 300/500 V supports a wide range of electrical applications.
Certified to CE and RoHS standards for compliance and safety assurance. Maximum operating temperature of 90°C enables use in elevated temperature environments. Minimum operating temperature of -20°C allows operation in cold conditions.
Designed for connection of motors, transformers, switch cabinets, and machines. Resistant to oils and chemical media at room temperature for durability.
This Control Cable is manufactured in Germany, reflecting high quality construction and adherence to international electrical standards. Ideal for industrial and commercial electrical wiring where heat resistance and safety are critical.
Explore more in the Electronics & Electricals category at EnvMart for our range of Wires & Cables including Control and Power Cables.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lapp ÖLFLEX HEAT 105 Series control cable has a rated voltage of 300/500 V.
This cable can operate at a maximum temperature of 90°C, making it suitable for elevated ambient temperature environments.
The conductor cross-sectional area of this model is 1.5 mm², made of fine strands of bare copper.
For flexible use, the minimum bending radius is 15 times the cable diameter, and for static use, it is 4 times the diameter.
The jacket of this cable is made from polyvinyl chloride (PVC), which has flame retardant properties.
This control cable is certified to CE and RoHS standards, ensuring compliance and safety.
The cable length is 100 meters, providing ample length for various installations.
The outside diameter of this model is 8.1 mm.
Yes, this cable is resistant to various oils and chemical media at room temperature.
This control cable is manufactured in Germany, reflecting high quality construction.
It is suitable for applications involving motors, transformers, machines, appliances, and switch cabinets in environments with elevated temperatures.
This cable uses fine stranded bare copper conductors, classified as Class 5 for enhanced flexibility and conductivity.
