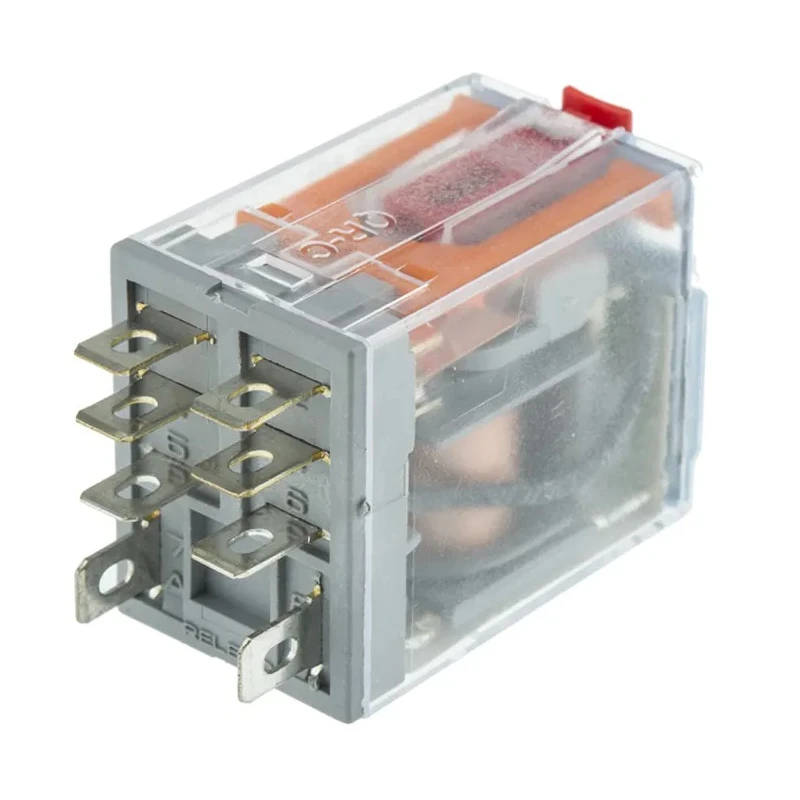

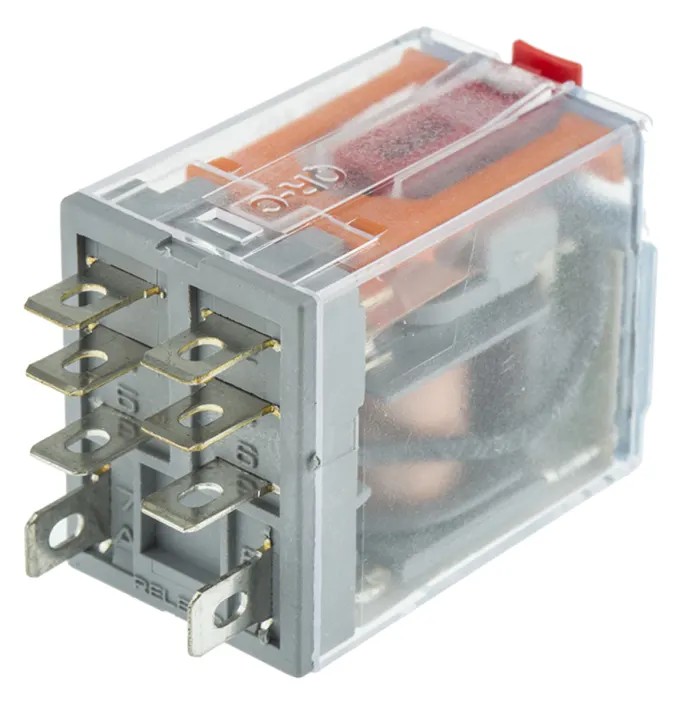

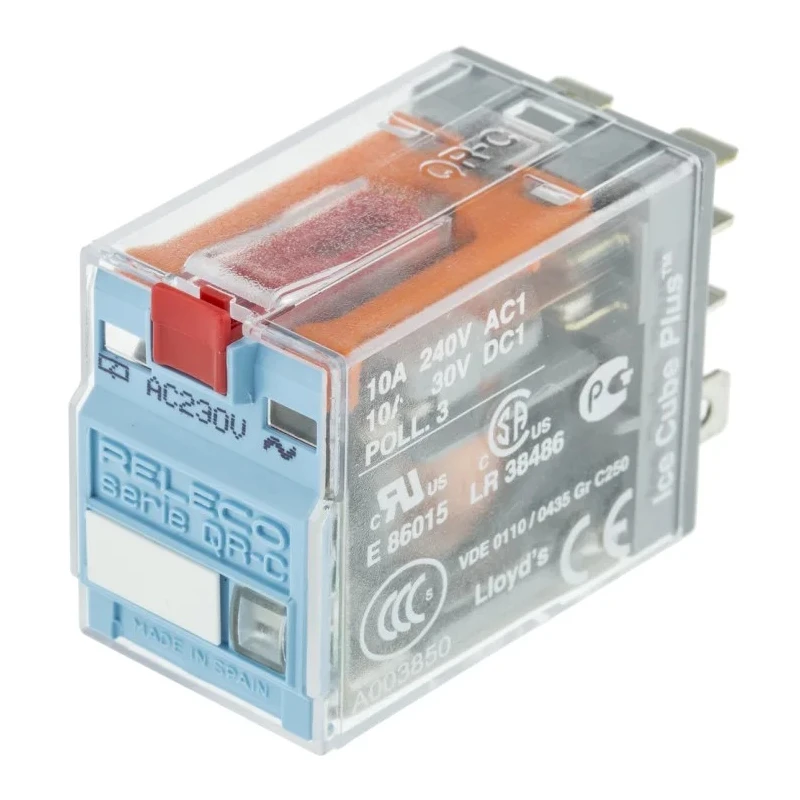

Releco Power Relay with 230V AC Coil, 10A Switching Current, DPDT Contact Configuration C7-A20X / AC 230 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 43mm |
| Length | 28mm |
| Model | C7-A20X / AC 230 V |
| Width | 21mm |
| Contact Material | Silver Alloy |
| Series | C7 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 11kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.5W |
Key Features
- The relay coil operates at a voltage of 230V AC with a power consumption of 1.5W.
- Switching AC voltage rating is 250V AC, suitable for heavy electrical loads.
- Equipped with quick connect terminal type for ease of installation.
- High-quality silver alloy contact material ensures reliable electrical conductivity.
- Operating temperature ranges from -40°C to a maximum of 60°C for versatile environmental use.
- Compact dimensions of 28mm length, 21mm width, and 43mm height optimize panel space.
- Coil resistance measures approximately 11kΩ, enabling stable operation.
- Includes a test button, LED indicator, and mechanical flag indicator for easy status monitoring.
Product Description
Releco C7-A20X / AC 230 V power relay is a DPDT plug-in mount relay designed for industrial and automation applications requiring reliable switching of up to 10A current at 250V AC. Its coil voltage is 230V AC with a coil power consumption of only 1.5W and coil resistance of 11kΩ, providing efficient actuation.
This relay incorporates features including a colour-coded dual-function test button - push to test or lift to latch - an LED indicator, and a mechanical flag indicator, enabling convenient operational checks and status indication in electrical control panels.
Made with silver alloy contacts, it ensures excellent electrical performance and durability. The quick connect terminal type simplifies wiring, while compact dimensions (28mm L x 21mm W x 43mm H) allow easy integration in space-constrained industrial environments.
Operating temperature range from -40°C to 60°C enables use in harsh conditions. It meets RoHS compliance, supporting environmentally responsible manufacturing standards.
The Releco C7 series non-latching relay is suitable for laboratory, manufacturing, HVAC, industrial automation, and electrical control systems requiring dependable power relay switching capabilities.
The relay coil operates at 230V AC with 1.5W power consumption. Contact configuration is double pole double throw (DPDT) for versatile switching. Silver alloy contacts enhance conductivity and lifespan. Compact size and quick connect terminals ease installation.
Operational status indicated by test button, LED, and mechanical flag. Wide operating temperature range from -40°C to 60°C. Compliant with RoHS environmental requirements. Explore more power relays with excellent electrical performance at EnvMart's Power Relay category to enhance your industrial control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 230V AC with a power consumption of 1.5W.
It has a maximum switching current of 10A and a switching AC voltage rating of 250V AC.
This model features a double pole double throw (DPDT) contact configuration, allowing for versatile switching capabilities.
The dimensions are 28mm in length, 21mm in width, and 43mm in height.
The contacts are made from silver alloy, which enhances electrical conductivity.
It can operate in temperatures ranging from -40°C to a maximum of 60°C.
It is equipped with quick connect terminals for ease of installation.
Yes, it includes a test button, an LED indicator, and a mechanical flag indicator for easy status monitoring.
Yes, it meets RoHS compliance, supporting environmentally responsible manufacturing standards.
This relay is suitable for laboratory, manufacturing, HVAC, industrial automation, and electrical control systems.
The coil resistance measures approximately 11kΩ, which enables stable operation.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
