Crydom D2 Series Solid State Relay Panel Mount 25A Load 280V Load 15V Control D2425D

Free Delivery in India | Lowest Global Shipping Charges

Crydom D2 Series Solid State Relay Panel Mount 25A Load 280V Load 15V Control D2425D

Name: Crydom D2 Series Solid State Relay Panel Mount 25A Load 280V Load 15V Control D2425D
Brand: Crydom
SKU: 294748
Price: 139.05 USD
Availability: InStock



Category Solid State Relay Brand Crydom Condition New

Specifications

Country of Origin	India
Brand	Crydom

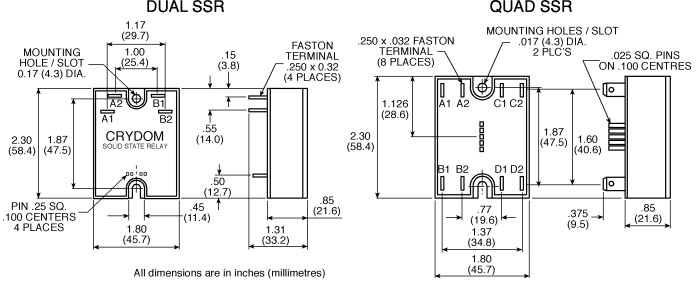

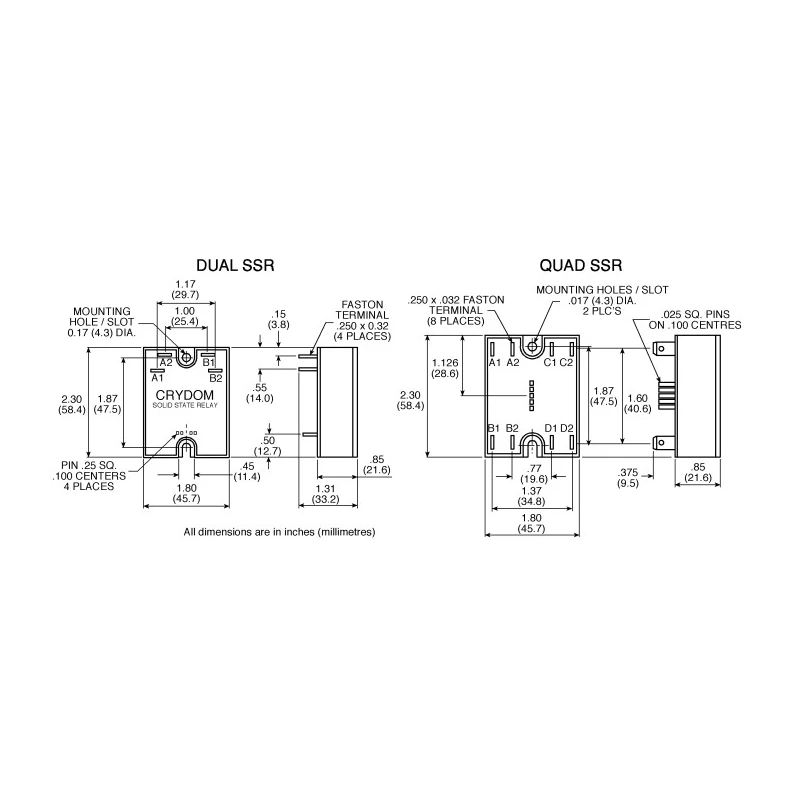

Dimensions	H33.2 x W45.7 x D58.4mm
Height	21.6mm
Length	45.7mm
Model	D2425D
IP Rating	IP20
Width	22.6mm
Mount Type	Panel
Output type	SCR
Series	D2
Maximum Operating Temperature	80°C
Capacitance	8pF
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	25A
Standards/Approvals	UR, RoHS, CSA
Maximum Load Voltage	280V
Minimum Load Voltage	32V
Minimum Control Voltage	3V
Maximum Control Voltage	15V

Key Features

The relay features zero cross switching functionality ensuring smooth operation.
It operates within a temperature range of -40°C to 80°C.
The device has an SCR output type with an 8pF input-output capacitance.
It includes an integral snubber circuit and meets UR, RoHS, and CSA standards.
The relay is designed with screw terminal type and an IP20 protection rating.
Compact dimensions facilitate easy panel mounting with height 21.6mm, width 22.6mm, and length 45.7mm.
The product suits various industrial and automation applications requiring reliable solid state switching.

Product Description

Crydom D2425D Solid State Relay from the D2 Series is engineered for panel mount applications and supports a maximum load current of 25A with a maximum load voltage of 280V. It operates using a control voltage range of 3V to 15V, offering reliable switching for industrial automation, electrical controls, and process management systems.

This relay incorporates zero cross switching to reduce electrical noise and increase component longevity. It features an SCR output type with low input-output capacitance of 8pF, aiding in efficient signal conditioning and minimizing interference. The integral snubber circuit further enhances transient voltage protection.

The D2425D model is constructed with screw terminals and an IP20 rating, ensuring basic protection suitable for indoor electrical panels. Its compact form factor, with dimensions of height 21.6mm, width 22.6mm, and length 45.7mm, allows for straightforward panel integration and efficient space management.

Operating temperature range from -40°C to 80°C makes it adaptable to various environments including industrial machinery, HVAC systems, automation control panels, and manufacturing equipment.

The relay complies with relevant international standards including UR, RoHS, and CSA, confirming its robustness and safety for industrial use. The relay features zero cross switching functionality ensuring smooth operation.

It operates within a temperature range of -40°C to 80°C. The device has an SCR output type with an 8pF input-output capacitance. It includes an integral snubber circuit and meets UR, RoHS, and CSA standards. The relay is designed with screw terminal type and an IP20 protection rating.

Compact dimensions facilitate easy panel mounting with height 21.6mm, width 22.6mm, and length 45.7mm. The product suits various industrial and automation applications requiring reliable solid state switching.

This Crydom solid state relay delivers durability and precise control for electrical and automation systems. Explore the broad category of Solid State Relays on EnvMart for other industrial control components and solutions.
